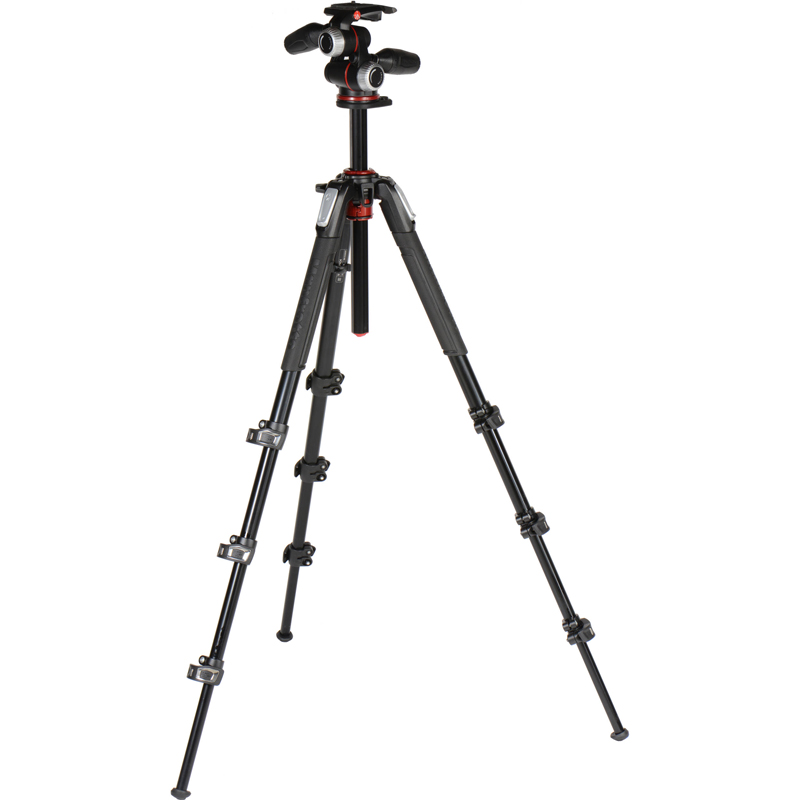

Manfrotto MK190XPRO4-3W Aluminium Tripod + 3 Way Head
- Payload capacity of 6 kg
- 173 cm maximum height
- 90° centre column mechanism
- Folded length of 62 cm
- 4 leg angles
- 4 leg sections
- aluminum
- includes X-PRO 3-Way Head
All new and even better ergonomics, the 190X PRO-4 Kit - Alu 4-Section Horizontal Column Tripod + 3 Way Head has been redesigned for you to have an easier time with the Manfrotto-patented 90° centre column mechanism. By extending the 4 leg sections at its maximum height of 173 cm, you can easily place your camera in a horizontal position without disassembling the column. Its folded length goes down to 62 cm. It can easily carry a payload of up 6 kg. Even though this tripod is made of aluminum alloy it still weighs a meager 3.1 kg. Buy it bundled with the X-PRO 3-Way Head.
Product Features in Detail
four leg angles
Four pre-set independent leg angles give the tripod great positioning flexibility and versatility, and allow all intermediate heights from the stated minimum to maximum levels to be reached. Stability is assured at all 4 angles by the spring-loaded step mechanism.
90° centre column mechanism
Allows the column to be extended vertically as normal, or horizontally to open up a wide range of framing and shooting possibilities; this makes the 190XPRO4 an extremely versatile tripod, suitable for a wide range of photography and video applications. The horizontal column mechanism is housed within the tripod's top casting for compactness, but it is easily and quickly extended whenever you need it. Switching between vertical and horizontal column orientation requires no disassembly, and can even be done with a camera attached.
Quick Power Lock levers
The legs of the 190XPRO4 tripod are also fast to extend and adjust, thanks to the Quick Power Lock levers that block and unblock each leg section. The special design of the QPL levers allows a more comfortable single-handed opening of all leg sections in one action. QPL’s lever design also offers more powerful locking of each section, meaning the tripod is more stable and rigid than with traditional lever designs. Intuitive and ergonomic leg angle selectors allow each leg to be independently and solidly set to any of the preset angles, again allowing considerable positioning freedom.
Bubble level
A bubble level is built in to the top of the centre column for precise framing. The bubble level rotates freely around the centre column, so it can be positioned wherever it's easiest for you to see it while adjusting the tripod, and without it either being obscured by the mounted head and camera, or getting in the way of head or camera controls.
Easy Link connector
The top casting of the 190XPRO4 has an Easy Link connector for supporting a photo or video accessory (such as an LED light, flash, reflector, or other piece of equipment) on an extending arm or bracket, and making the tripod into a practical mobile studio.
Retractable levers
The X-PRO 3-Way Head has retractable levers which make it ultra-compact, and also features new friction controls on the portrait and tilt axes, to help balance the weight of camera equipment so that fine framing adjustments can be made with the locking knobs open, only locking everything down once the shot is ready.
Ergonomic leg angle selector
This tripod features a newly designed ergonomic leg angle selector. This new angle selector improves the comfort and the precision in use.
attaches by. | 3/8 attachment type |
centre column | rapid |
closed length | 62 cm |
Color | black color |
column tube diameter | 25mm |
leg angles | 25°.46°.66°.88° |
leg sections | 4 number |
legs tube diameter | 26. 22.5. 19. 15.5 mm |
material | aluminum |
maximum height | 173 cm |
maximum height (with centre column down) | 148 cm |
minimum height | 8 cm |
safety payload | 6 kg |
weight | 3.1 kg |
X-PRO 3-Way Head Specs
attachment | 3/8'' female thread attachment type |
Color | black color |
front tilt | -30° / +90° tilt range |
independent pan lock | yes |
independent tilt lock | yes |
lateral tilt | -30° / +90° tilt range |
material | aluminum |
panoramic rotation | 360 degrees |
patent | pat. pending |
plate type | quick release - with 1/4-20'' screw |
quick release | yes |
secondary safety system | yes |
safety payload | 8 kg |
weight | 1 kg |
working height | 13 cm |
190X PRO-4 Kit - Alu 4-Section Horizontal Column Tripod + 3 Way Head
2 Years Standard Australian Warranty + an additional 8 Years FREE Extended Warranty Once the product is registered on warranty.manfrotto.com

SKU: Manfrotto MK190XPRO4-3W
UPC: 8024221623277
