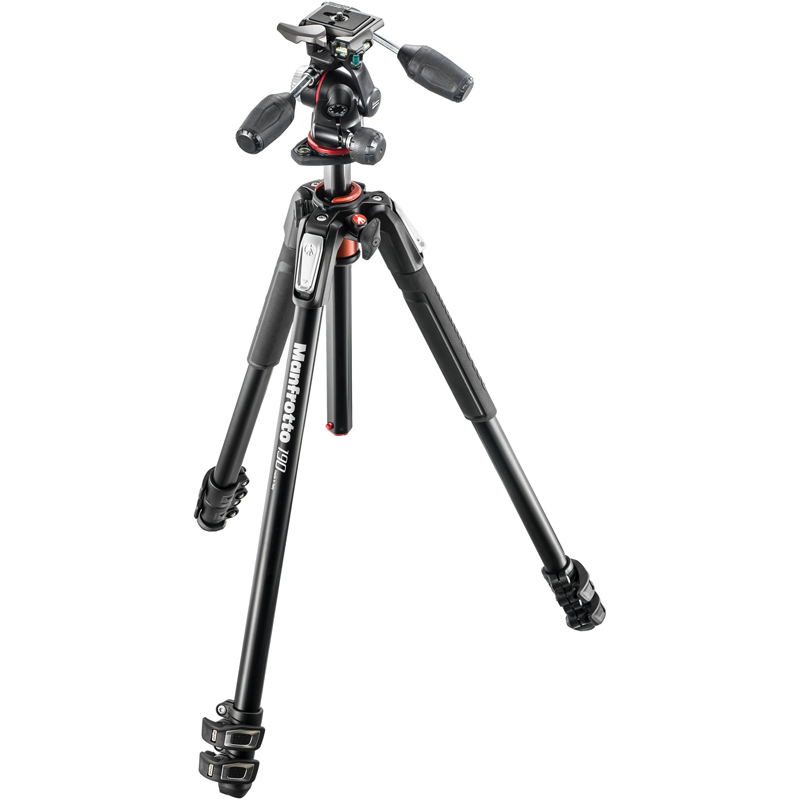

Manfrotto MK190XPRO3-3W Aluminium Tripod + 3 Way Head
- Payload capacity of 6 kg
- 173 cm maximum height
- Folded length of 72 cm
- 4 leg angles
- 3 leg sections
- aluminium
- includes X-PRO 3-Way Head
- weighs 3.1 kg
A great design made even better, the 190 Kit - Alu 3-Section Horizontal Column 4 leg angle tripod has been redesigned for you to have an easier time with the Manfrotto-patented horizontal center column. By extending the 3 leg sections at its maximum height of 173 cm, you can easily place your camera in a horizontal position without disassembling the column. Its folded length goes down to 72 cm. It can easily carry a payload of up 6 kg. Even though this tripod is made of aluminum alloy it still weighs a meager 3.1 kg. Buy it bundled with the X-PRO 3-Way Head.
Product Features in Detail
four leg angles
Four pre-set independent leg angles give the tripod great positioning flexibility and versatility, and allow all intermediate heights from the stated minimum to maximum levels to be reached. Stability is assured at all 4 angles by the spring-loaded step mechanism.
Q90° column
Q90° quick centre column system. This model include the patented Q90° system. This ingenious system allows the user to move the central column from vertical to horizontal position in just seconds without having to disassemble the column.
Quick Power Lock levers
The legs of the 190X tripod are also fast to extend and adjust, thanks to the Quick Power Lock levers that block and unblock each leg section. The special design of the QPL levers allows a more comfortable single-handed opening of all leg sections in one action. QPL’s lever design also offers more powerful locking of each section, meaning the tripod is more stable and rigid than with traditional lever designs. Intuitive and ergonomic leg angle selectors allow each leg to be independently and solidly set to any of the preset angles, again allowing considerable positioning freedom. .
Bubble level
A bubble level is built in to the top of the centre column for precise framing. The bubble level rotates freely around the centre column, so it can be positioned wherever it's easiest for you to see it while adjusting the tripod, and without it either being obscured by the mounted head and camera, or getting in the way of head or camera controls.
Easy Link connector
The top casting of the 190X has an Easy Link connector for supporting a photo or video accessory (such as an LED light, flash, reflector, or other piece of equipment) on an extending arm or bracket, and making the tripod into a practical mobile studio.
Ergonomic leg angle selector
This tripod features a newly designed ergonomic leg angle selector. This new angle selector improves the comfort and the precision in use.
attaches by. | 3/8 attachment type |
centre column | rapid |
closed length | 72 cm |
Color | black color |
column tube diameter | 25mm |
leg angles | 25°.46°.66°.88° |
leg sections | 3 number |
legs tube diameter | 26. 22.5. 19 mm |
material | aluminum |
maximum height | 173 cm |
maximum height (with centre column down) | 148 cm |
minimum height | 9 cm |
safety payload | 6 kg |
weight | 3 kg |
X-PRO 3-Way Head Specs
attachment | 3/8'' female thread attachment type |
Color | black color |
front tilt | -30° / +90° tilt range |
independent pan lock | yes |
independent tilt lock | yes |
lateral tilt | -30° / +90° tilt range |
material | aluminum |
panoramic rotation | 360 degrees |
patent | pat. pending |
plate type | quick release - with 1/4-20'' screw |
quick release | yes |
secondary safety system | yes |
safety payload | 8 kg |
weight | 1 kg |
working height | 13 cm |
190 Kit - Alu 3-Section Horizontal Column Tripod + 3 Way Head
2 Years Standard Australian Warranty + an additional 8 Years FREE Extended Warranty Once the product is registered on warranty.manfrotto.com

SKU: Manfrotto MK190XPRO3-3W
UPC: 719821364689
