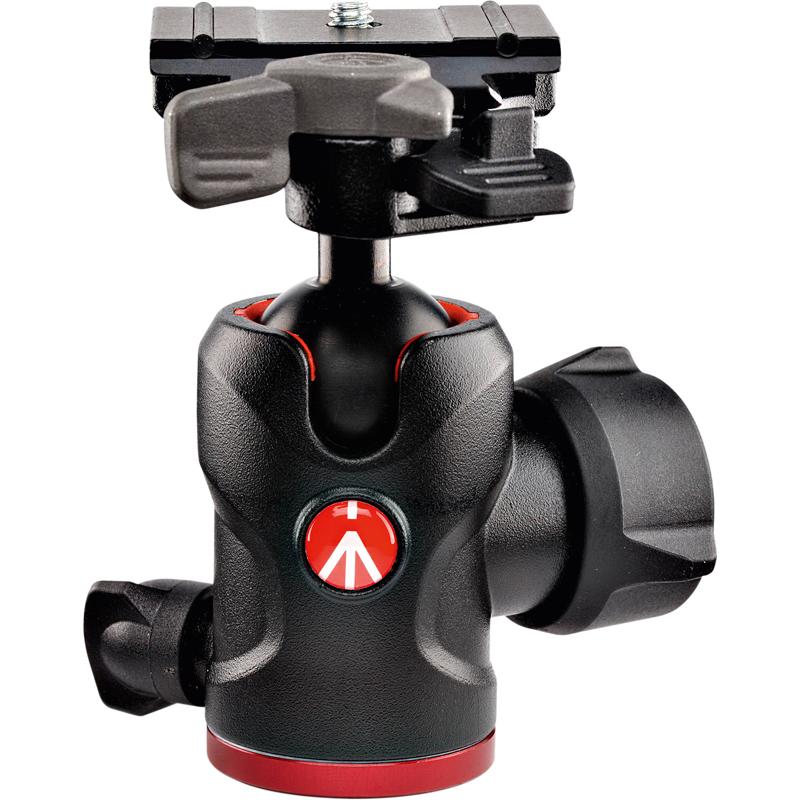

Manfrotto 494 Center Ball Head MH494-BH
- 8 kg Load Capacity
- 10 cm Working Height
- RC2 Top Attachment
- Tension Control
- 360° Pan with Independent Pan Lock
- Arca-Type and RC2 Compatible QR Plate
- -90 to 40° Lateral Tilt
- Aluminum Plate with Rubber Inserts
Manfrotto 494 Center Ballhead is precision-machined, strong die-cast construction that provides excellent smooth movements across -90° to 40° lateral tilt positions. It has a working height of 10 cm and 360° pan with independent pan lock. The Arca-Type and RC2 Compatible QR Plate is of aluminum plate with rubber inserts and weighs 0.32 kg. The camera head can safely carry up to 4 8g which allows you to use it with small format cameras.
Product Features in Detail
Lightweight and compact
For all amatuer photographers looking for a small yet powerful ball head, the 494 aluminium Center ball head enables fast and precise camera positioning. Lightweight and compact, the 494 Center ball head is ideal for anyone looking for a quick and easy solution that helps frame shots precisely. This tripod head is made of highly-resistant, lightweight aluminium, so it is both extremely portable and strong enough to cope with a payload up to 8 kg. It is the perfect solution for all kinds of mirrorless cameras with zoom lenses and even medium-format DSLRs. This advanced ball head combines practicality with high functionality and features three independent controls: a main knob for managing the sphere lock, an integrated friction control knob that adjusts the ball tension so that equipment weight is always perfectly balanced and shots framed effortlessly; an independent panoramic knob that keeps the horizon flat and moves the camera horizontally, enabling astonishing landscape shots.
Manfrotto RC2 and Arca-swiss Compatible
The 494 Center ball head mounts a unique plate that makes it fully compatible with the world’s most widespread standard camera plates: Manfrotto RC2 and Arca-swiss style. With this aluminium plate fixed to the camera, all Manfrotto heads and almost all tripod heads on the market featuring Arca-style attachments can be set up rapidly and effortlessly, with no need for disassembly components.
Easy to Set Up
The 494 Center ball head’s design make it both extremely easy to set up and reliable to use in any configuration.
Collection/Series | Befree Advanced |
Safety Payload Weight | 8 kg |
Material | Aluminum |
Head Type | Ball Head |
Top Attachment | 1/4″ screw |
Base Diameter | 40 mm |
Plate Type | 200PL PRO |
Friction Control | Yes |
Front Tilt | -90° / +40° |
Lateral Tilt | -90° / +40° |
Panoramic Rotation | 360 |
Base Type | 32 mm |
Ball Locking | Yes |
Color | Black |
Easy Link | No |
Independent Pan Lock | yes |
Independent Tilt Lock | yes |
Maximum Working Temperature | 70 C |
Minimum Working Temperature | -30 C |
Pan Bar Included | No |
Pan Drag | NONE |
Quick Release | Yes |
Working Height | 10 cm |
Tilt Drag | NONE |
494 Center Ball head
200PL-PRO Quick Release Plate
6 Months Warranty + an additional 9 ½ Years FREE Extended Warranty Once the product is registered on warranty.manfrotto.com

SKU: Manfrotto MH494-BH
UPC: 8024221652994
