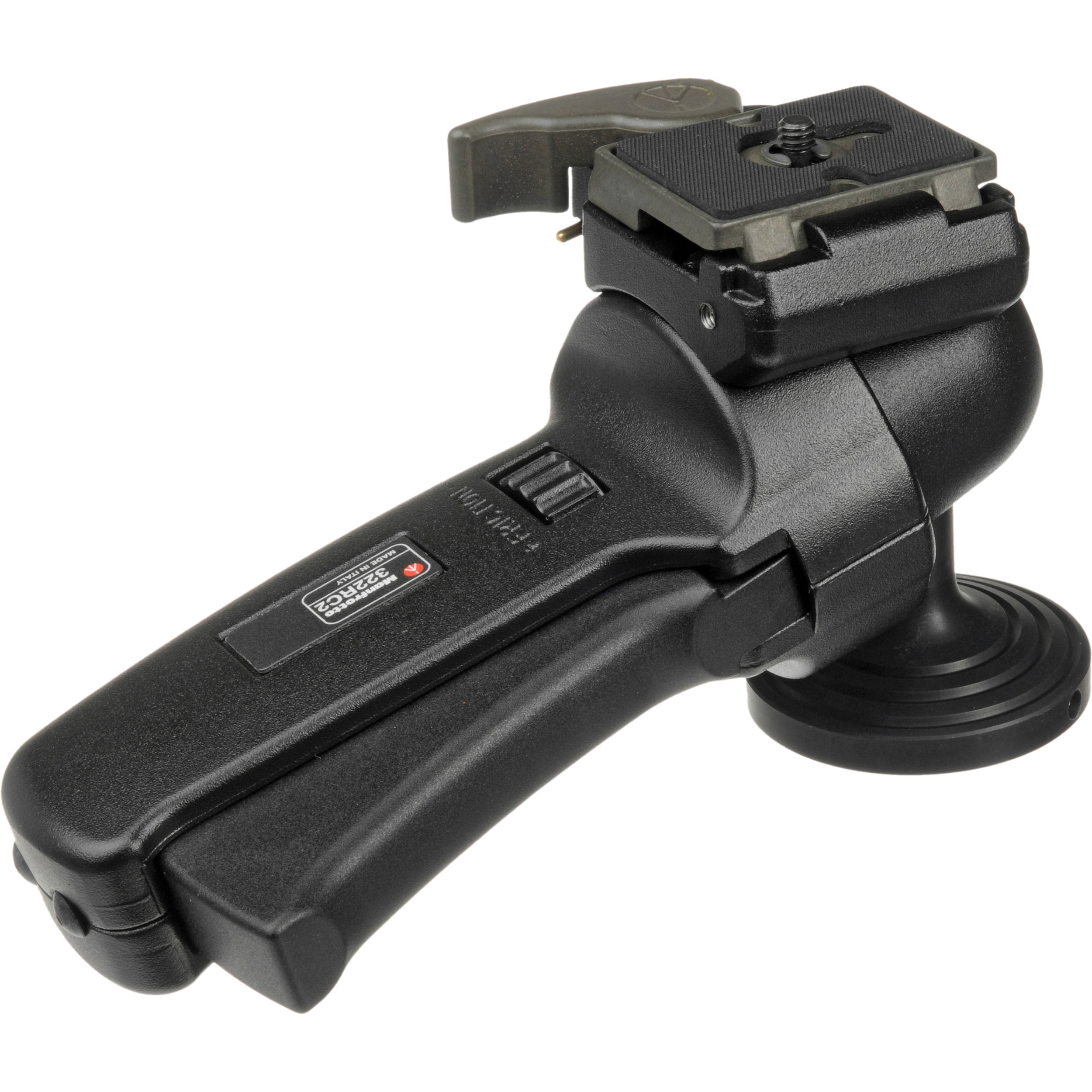

The Manfrotto 322RC2 Heavy Duty Grip ball head is ideal for photographers who demand precise control over their camera. It features a friction control wheel wherein you can regulate the power of the blocking mechanism to complement the weight of your camera. It has a front tilt range of -90/+90 and a lateral tilt range of +90/-3 that helps you adapt better to a wide range of situation. It is complete with quick release camera plate with standard 1/4'' screw attachment type, secondary safety pin and built-in 1 bubble spirit level. The head is made of magnesium; the material ensures a sturdy yet light 0.7 kg and 10.3 cm working height construction to support a payload capacity of 5 kg.

Product Features in Detail

1 bubble level
The built-in, carefully hand-set bubble spirit level helps make sure your horizons really are horizontal.

222-322 ball friction
Separate control for pre-setting the friction of the ball when unblocked. The position of the red line indicates the approximate amount of friction applied.

q-r camera plate 200pl
The compact, rectangular 200PL quick release plate system fits neatly under small-bodied still cameras up to SLR (even with tele lenses) or small medium format, or under small video cameras or spotting scopes. Its rubber pad gives a good grip without damaging the camera, and its angled sides ensure that it also fits perfectly and tightly into a wide range of Manfrotto heads

reversible column
Reversible centre column allows head and camera to be mounted below the tripod - useful for: low-level shooting (because it keeps the tripod and your equipment out of the mud); working with heavy loads (because weight lowers the tripod's centre of gravity, making it more stable); and also for use with 'mirror-image' view cameras

secondary security lock
This head features a secondary security lock so you can't accidentally release the plate (and camera) without meaning to. The lock stops the quick release lever from opening fully

single lock
A convenient single locking mechanism blocks or frees movement on all axes for greater speed of use

sturdy all-metal construction
Sturdy all-metal construction

ergonomic
Ergonomic and easy to use

low centre of gravity
By keeping the head and camera mounting plate as low as possible, the camera is kept safely closer to the tripod's centre of gravity for more stable support

Specification

attaches by.	1/4'' screw attachment type
attachment	3/8'' female thread attachment type
ball friction setting	yes
bubble spirit level (no.)	1 number
Color	black color
front tilt	-90° / +90° tilt range
independent pan lock	no
lateral tilt	+90° / -3 tilt range
material	magnesium
panoramic rotation	360 °
patent	pat. pending
plate type	200PL-14
quick release	yes
secondary safety system	yes
safety payload	5 kg
weight	0.7 kg
working height	10.3
