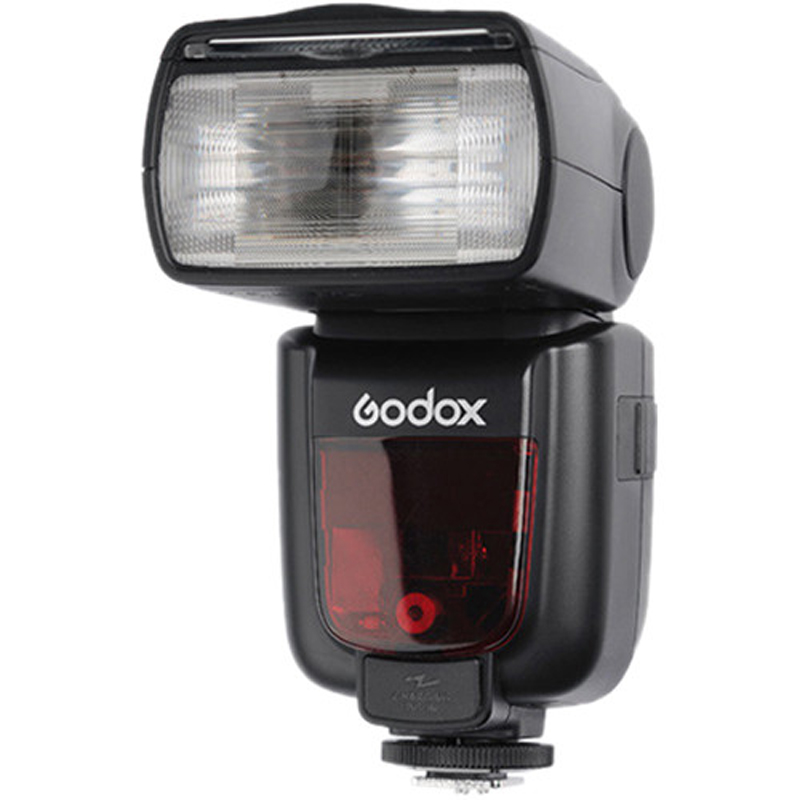

The Godox TT685N TTL Speedlite Flash is built to support Nikon i-TTL, which includes high-speed sync and a built-in 2.4GHz radio system. When used, simple or elaborate lighting setups can be integrated where it can be an applicable lighting tool with its 197' guide number at ISO 100 and 200mm, a zoom range of 20-200mm. This speedlite is capable of tilting from -7 to 90° and 360° rotation. Being a TTL unit, it can operate as a full wireless master or slave unit with TTL operation. It also comes with a 3.5mm sync port which is available for setting up connection to a camera or trigger. It runs on four alkaline or NiMH AA batteries delivering 230 full-power flashes with 0.1-2.6 seconds of recycle time. A USB connection is available for installing firmware updates.

Product Features in Detail

Thinklite TTL Camera Flash TT685N
This TT685N camera flash applies to Nikon DSLR series cameras and is compatible with i-TTL autoflash. With this i-TTL compatible flash, your shooting will become simpler.

Two Transmitting styles to offer creative light effects
Optical transmission with even illumination and stable output. 2.4G wireless transmission with all-in-one functions and 100 meters further transmission.

Master & Slave Flash
As master flash to trigger Nikon speedlights e.g SB-900, SB-910, etc in TTL or Manual mode. As slave flash to receive signals of Nikon speedlights e.g. SB-900, SB-910 etc and wireless commanders of pop-up flash on Nikon D7100/D7000/D800, etc.

Full TTL Functions
Supports HSS (max. 1/8000s); FEC, RPT stroboscopic flash, front & rear curtain sync, modeling flash, etc.

TTL Wireless Flash Transmitter X1N Offers Better User Experience (sold separately)
With 2.4G wireless transmission, X1N (for Nikon) can be used to trigger camera flash, studio flash, and camera shutter over 100-meter distance. Support for i-TTL autoflash, 1/8000s High-speed sync, flash exposure compensation, flash exposure lock, Modeling flash, etc. With wireless grouping system (max. 4 groups & 32 channels) to satisfy various shooting requirements. Big LCD panel to offer convenient operation.

Convenient Dot-matrix LCD Panel
With dot-matrix LCD panel to offer clear and easy operation. Use 4 function buttons to change various settings according to different situations. Turn the select dial to choose the amount of the settings.

Withstanding Overheat and Useful Functions
GN60 (m ISO 100, @200mm), 22 steps of power output (1/1~1/128). Approximately 0.1-2.6s recycle time, 230 full power flashes (using 2500mA Ni-MH batteries. Support TTL/M/Multi/S1/S2 modes, 20-200mm auto/manual zooming. With C.Fn custom function settings.

Specification

Type
Compatible Cameras	Nikon DSLR cameras (i-TTL autoflash)
Guide Number (1/1 output at 200mm)	60 (m ISO 100)
	190 (feet ISO 100)
Flash Coverage	20 to 200mm (14mm with wide panel)
	Auto zoom (Flash coverage set automatically to match the lens focal length and image size
	Manual zoom
	Swinging/tilting flash head (bounce flash): 0 to 360 horizontally and -7 to 90 vertically
Flash Duration	1/300 to 1/20000 seconds
Exposure Control
Exposure control system	i-TTL autoflash and manual flash
Flash exposure compensation (FEC)	Manual. FEB: ∓3 stops in 1/3 stop increments (Manual FEC and FEB can be combined.)
Sync mode	High-speed sync (up to 1/8000 seconds), first-curtain sync and second-curtain sync
Multi flash	Provided (up to 90 times, 100Hz)
Wireless Flash (Optical transmission and 2.4G transmission)
Wireless flash function	Master, Slave, Off
Controllable slave groups	3 (A, B, and C)
Transmission range (approx)	Optic	Indoors: 12 to 15m/39.4 to 49.2 ft
		Outdoors: 8 to 10m/26.2 to 32.8 ft
		Master unit reception angle: ∓40° horizontally, ∓30° vertically
	2.4G	100m
Channels	Optic	4 (1, 2, 3, and 4)
	2.4G	32 (1~32)
Slave-ready indicator	Two red indicators blink
Modeling flash	Fired with camera's depth-of-field preview button
Auto Focus Beam
Effective range (approx)	Center: 0.6~10m / 2.0~32.8 feet / Periphery: 0.6~5m / 2.0~16.4 feet
Power Supply
AA batteries	Ni-MH batteries (recommended) or 4*LR6 alkaline batteries
Recycle time	Approx 0.1~2.6 seconds (eneloop Ni-MH batteries of Panasonic). Red LED indicator will light up when the flash is ready.
Full power flashes	Approx 230 (2500mA Ni-MH batteries)
Power saving	Power off automatically after approx 90 seconds of idle operation. 60 minutes if set as slave.
Sync Triggering Mode	Hotshoe, 3.5mm sync line, Wireless control port
Colour Temperature	5600∓200k
Dimensions
W x H x D	6476190mm
Weight without battery	410g
Weight with battery	530g

Warranty

This product comes with 12 Months Australian Warranty. Our products are sourced from authorised Australian suppliers and therefore come with genuine Australian warranty. Camera Warehouse does not participate in 'Grey Market' or 'Parallel Import' activities.

In The Box

Godox TT685N TTL Speedlite Flash For Nikon
Mini Stand
Protective Case
