DJI Zenmuse Z15 BMPCCBookmark and Share

Categories: DJI Accessories,

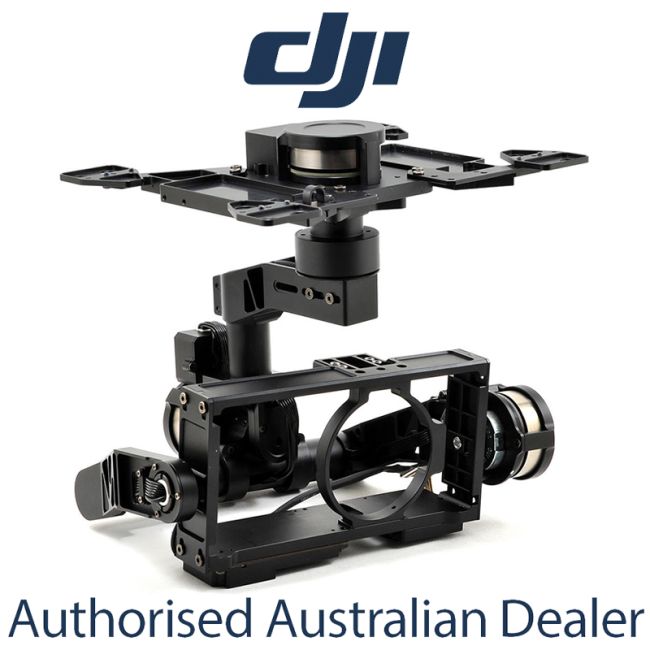

DJI Zenmuse Z15 BMPCC
Click for larger view
Click for rear view

Main Product

DJI Zenmuse Z15 BMPCC $4,299.00

Total AU$

* All prices include GST
Bookmark and Share

Product Summary

  • Stabilizes Camera that Keeps Levelled Shot
  • Holds Blackmagic Pocket Cinema Camera
  • ±0.01° Control Angle Accuracy
  • Tilts up to +50°:/-140° and Rolls up to ±40°
  • Variable Speed 360° Panning
  • Remote Shutter Release Operation
  • Integrated IMU and Infrared Modules
  • HD Transmission via Lightbridge
  • Three Selectable Control Modes
  • Compatible with A2 and WooKong-M Flight Controllers
  • Used for Octo-Rotor Like S1000 and S800
  • Genuine 12 Months Australian Warranty

The Zenmuse Z15 is a revolutionary 3-axis gimbal system with 360° continuous rotation. It stabilizes camera that keeps levelled shot and capable of having a wide view thanks to its +50°:/-140° tilt and ±40° roll and variable 360° panning speed. The gimbal has ±0.01° control angle accuracy with integrated IMU and infrared modules to guarantee an effortless yet precise control. It also features remote shutter release operation wherein the shutter can be controlled remotely via infrared plus HD Transmission via Lightbridge. Zenmuse Z15 BMPCC is made solely for use with Blackmagic Pocket Cinema Cameras and compatible with A2 and WooKong-M flight controllers. It is mainly used for octo-rotors like S1000 and S800

Product Features in Detail

The DJI Zenmuse Z15-BMPCC gimbal represents a breakthrough in Zenmuse precision, offering a control range of just ±0.01°. Used with a DJI A2 professional flight controller and a professional DJI aerial system, it will keep the BMPCC stable and controllable even in strong winds or intense maneuvers.

Built for the BMPCC
Each Zenmuse is guaranteed to deliver nothing short of the best in camera control and stabilization. The Zenmuse Z15-BMPCC is built only for the Black Magic Pocket Cinema Camera, known for true digital film quality images through a feature film style 13 stops of dynamic range, Super 16 sensor size, high quality lossless CinemaDNG RAW and Apple ProRes™ recording. All of this is packed into a small body, making the Black Magic Pocket Cinema Camera ideal for aerial cinematography and photography.

Weight is minimized using a video output module offering camera shutter and other features while transforming the camera’s HDMI signal into an AV signal first person view. Wiring has been kept to a minimum to further reduce weight.

The 3-axis Zenmuse Gimbal system’s creative mechanical design makes control through the transmitter stick both intuitive and easy. Its internal slip rings avoid complicated wiring. Both power and signal lines have been integrated into gimbal’s tubes, resulting in a completely unhindered control axis that offers a maximum yaw of ±360°, pitch of +50°/-140° and a roll of ±40°.

Three camera control modes are offered to maximize creativity and ease of flight. Orientation-locked, Non Orientation-locked and Back to Mid-point (Horizontal). All three modes can be switched between, quickly and easily in line with the needs of each shoot.

The Zenmuse Z15-BMPCC is ideal for the S800 EVO, S900 and S1000 flight platform and works with other DJI products including the A2 and WooKong-M multirotor flight controllers. Used with the DJI Lightbridge HD digital video downlink or an iOSD Mark II and a 5.8G video link, it is a Total Solution for aerial photography and cinematography.

What gives every Zenmuse its precision is our specially designed Gimbal Servo Drive Module. Each of these is tailored to the weight and balance of the camera it has been designed to move. This significantly improves control and stability, maximizes torque, while minimizing vibration.

A new stabilizing algorithm providing more stability than ever before and extremely precise induction devices combine to create effortless attitude control. With these in place, the S1000 needs no extra equipment installation or wiring, making it easier to get shooting faster.

Included in the Box

     DJI Zenmuse Z15 BMPCC
     Gimbal Control Unit (GCU)
     Lens Retaining Ring
     Lens Retaining Ring Shim
     4 x Mounting Bracket
     Camera Mount Screw
     Lens Retaining Ring Screw
     Gimbal Video Power Cable
     Micro - USB Cable
     CAN-Bus Cable
     Spare Package
     Genuine 12 Months Australian Warranty

Warranty Information

     This DJI Zenmuse Z15 BMPCC comes with Genuine 12 Months Australian Warranty.
     Our products are sourced from authorised Australian suppliers and therefore come with genuine Australian warranty.
     Camera Warehouse does not participate in 'Grey Market' or 'Parallel Import' activities.


Tech Specs

Built-In Functions
Three Working Modes
· Orientation-locked control
· Non orientation-locked control
· FPV mode (Reset)
Built-in independent IMU module
DJI gimbal special servos drive module
HDMI-AV/HD module
Wireless video transmission supported
Camera record control supported
Wide range voltage input supported
S-Bus/PPM Receiver supported
Supported Camera
Current Supported Lens
GCU Input Power
4S~12S LiPo (Recommend 6S if used with the S800 EVO/S1000)
Control Requirement
Minimum of four spare receiver channels
Assistant Software System Requirement
Windows XP SP3; Windows 7; Windows 8 (32 or 64 bit)
Mechanical & Electrical Characteristics
Working Current
Static current: 200mA (@25V)
Dynamic current: 400mA (@25V)
Locked-rotor current: 1.8A (@25V)
Operating Temperature
-10°C ~ 50°C
227mm(H) × 212mm(D) × 210mm(W)
GCU Weight
GCU Dimensions
64.2 mm ×34.1mm ×19.5mm
Working Performance
Load Weight (Reference Value)
487g(@BMPCC with OLYMPUS M.ZUIKO DIGITAL ED 12mm f2.0, Battery and SD-Card)
Controlled Angle Accuracy
Maximum Controlled Rotation Speed
Pan axis: ±130°/s
Tilt axis: ±130°/s
Roll axis: ±30°/s
Controlled Rotation Range
Pan axis control: ±360° continuous rotation
Tilt axis control: +50°/-140°
Roll axis control: ±40
