- Spreading Wings Hexacopter
- Comes With A2 Flight Control System
- Zenmuse Z15 Gimbal for NEX-7
- Compatible with Zenmuse Z15 Gimbal
- Supports A2 and WooKong-M FCs
- Up to 18 Pound Total Take-Off Weight
- Collapsible Frame and Folding Propellers
- Retractable Landing Gear
- Low Gimbal Mounting with Dampening
- Up 18 Minutes Flying at 12,000mAh
- Carbon Fiber Frame Arms
- Genuine 12 Months Australian Warranty

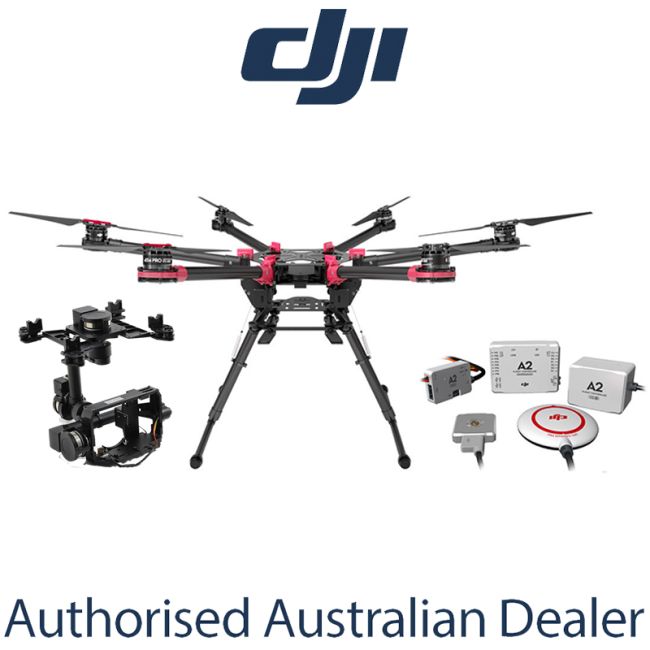

The DJI S900 is the Spreading Wings Hexacopter made to be compatible with Zenmuse Z15 gimbal to capture aerial still and video images. Now the package also comes with A2 flight control system, an Advanced Stabilization Controller for Multi-Rotor Platforms plus Zenmuse Z15 Gimbal for NEX-7 that you can use to mount the Sony NEX-7 camera. It features carbon fiber frame arms, collapsible frame and folding propellers for easy transport and safekeeping plus a retractable landing gear to suppress unwanted vibrations during the shoot. It supports up to 18 pound total take-off weight and has low gimbal mounting with dampening. It is supports A2 and WooKong-M FCs, depending on the preference and the types of radios to be used.
Product Features in Detail
Lightweight, Strong And Stable
The S900’s arms and landing gear are made of sturdy carbon fiber, greatly reducing weight while increasing stability and strength. This enables a long flight time without sacrificing performance.
Highly Portable, Easy To Carry
With arms that fold in to save space, the S900 is built to be taken wherever you need to go. Then when you want to fly, it can be ready to go in just a few minutes. Never before has a professional hexacoptor been so portable and easy to transport.
Removable Upper Center Board
The upper center board can be removed, allowing easy access to install your flight controller and IMU, and giving you a convenient way to setup the power distribution system. Even installation of your main controller, iOSD, Lightbridge, or any other accessories is faster and easier than ever before.
This new center board structure is perfectly compatible with the DJI WKM and A2 flight controllers.
New Power Distribution System
A redesigned, rebuilt power distribution system improves safety and reliability. Gold-plated metal bearings with a unique screw design secure the power cords, ensuring cables will not come loose during flight and allowing easy setup.
Prevent short circuits and easily plug in your power supply with the AS150 sparkproof plug.
Weighing just 3.3kg, the S900 has a maximum takeoff weight of 8.2kg. This means you can easily carry most cameras and gimbals. Used with a 6S 12000mAh battery, it can fly for up to 18 minutes.
Wide Range Of Shooting Angles
Retractable landing gear and a special low gimbal mounting bracket gives you an extremely wide range of possible shooting angles and camera motions.
Compatible With Zenmuse Gimbals
DJI’s Zenmuse camera gimbals are known for their stability, providing smooth footage capture in even the most difficult of conditions. The S900 fully supports the Zenmuse Z15, GH3, GH4, and BMPCC gimbals.
Reduced Vibrations, Clearer Footage
The S900’s gimbal bracket is separated from the main frame by specifically designed dampers. This significantly reduces high-frequency vibrations and makes your shots clearer and sharper.
A 40A electronic speed controller (ESC), our fastest available, is built in to each arm. The 4114 pro motors, high performance 1552 folding propellers, and V-type mixer design combine to give each arm of the S900 a maximum thrust of 2.5Kg.
Our latest motor adopts a single wire stator design, offering improved heat dissipation, better performance, and a tidier, more reliable system.
Innovative Arm Design
Each arm is designed with an 8° inversion and a 3° inclination, making the aircraft more stable when rolling and pitching, yet more flexible when rotating.
Included in the Box
DJI S900 + A2 + Z15 NEX7 Gimbal
A2 Flight Control System
Zenmuse Z15 Gimbal for NEX-7
6 Frame Arms
2 Landing Skid Tubes
2 Landing Gear legs
GPS Collapsible Mount
3-pin Servo Cable
2 Spare CW Propellers
2 Spare CCW Propellers
4 Magic Tapes
6 Red Knobs
4 Landing Gear Leg Rings
50 Soft Vibration Absorbing Gaskets
Genuine 12 Months Australian Warranty
This DJI S900 + A2 + Z15 NEX7 Gimbal comes with Genuine 12 Months Australian Warranty.
Our products are sourced from authorised Australian suppliers and therefore come with genuine Australian warranty.
Camera Warehouse does not participate in 'Grey Market' or 'Parallel Import' activities.
FrameDiagonal Wheelbase900mmFrame Arm Length358mmFrame Arm Weight (Including Motor, ESC, Propeller )316gCenter Frame Diameter272mmCenter Frame Weight (With Landing Gear Mounting Base, Servos)1185gLanding Gear Size460mm(Length)×450mm(Width)×360mm(Height) MotorStator Size41×14mmKV400rpm/VMax Power500WWeight(With Cooling Fan)158g ESCWorking Current40AWorking Voltage6S LiPoSignal Frequency30Hz ~ 450HzDrive PWM Frequency8KHzWeight (With Radiators)35g Foldable Propeller (1552/1552R)MaterialHigh strength performance engineered plasticsSize15×5.2inchWeight13g Flight ParametersTakeoff Weight4.7Kg ~ 8.2KgTotal Weight3.3KgPower BatteryLiPo (6S、10000mAh~15000mAh、15C(Min))Max Power Consumption3000WHover Power Consumption1000W (@6.8Kg Takeoff Weight)Hover Time18min (@12000mAh& 6.8Kg Takeoff Weight)Working Environment Temperature-10 °C ~ +40 °C Gain Value SettingsFor A2 Flight ControllerBasic: Roll 110%, Pitch 110%, Yaw 120% Attitude: Roll 220%, Pitch 220%, Vertical 120%For WooKong-M Flight ControllerBasic: Roll 160%, Pitch 160%, Yaw 160% Attitude: Roll 190%, Pitch 190%, Vertical 100%
For A2 Flight Control System:
PeripheralSupported Multi-RotorQuad-Rotor: +4,x4; Hex-Rotor +6,x6,Y6,Rev Y6; Octo-Rotor +8,x8,V8Supported ESC Output400Hz refresh frequencySupported Transmitter For Built-In ReceiverFutaba FASST Series and DJI DESST SeriesExternal Receiver SupportedFutaba S-Bus, S-Bus2, DSM2Recommended Battery2S ~ 6S LiPoOperating Temperature-5°C to +60°CAssistant Software System RequirementWindows XP SP3 / 7 /8 (32 or 64 bit)Other DJI Products SupportedZ15, H3-2D, H3-3D, iOSD, 2.4G Data Link, S800 EVO, S900, S1000, S1000+, etc. Flight PerformanceHovering Accuracy(In GPS Mode)Vertical: ± 0.5m Horizontal: ± 1.5mMaximum Wind Resistance< 8m/s (17.9mph/28.8km/h)Max Yaw Angular Velocity150 deg/sMax Tilt Angle35°Ascent/Descent±6m/s Electrical & MechanicalPower ConsumptionMAX 5W (Typical Value: 0.3A@12.5V）Built-In FunctionsBuilt-in Receiver Multiple Control Modes 2-axis Gimbal Supported Low Voltage Protection PC & Bluetooth Ground Station External Receiver Supported Intelligent Orientation Control Sound Alarm 4 Configurable OutputTotal WeightTotal Weight: <= 224g(overall)DimensionsFlight Controller: 54mm x 39mm x 14.9mm IMU: 41.3mm x 30.5mm x 26.3mm GPS-Compass Pro: 62mm (diameter) x 14.3mm LED-BTU-I: 30mm x 30mm x 7.9mm PMU: 39.5mm x 27.6mm x 9.8mm
