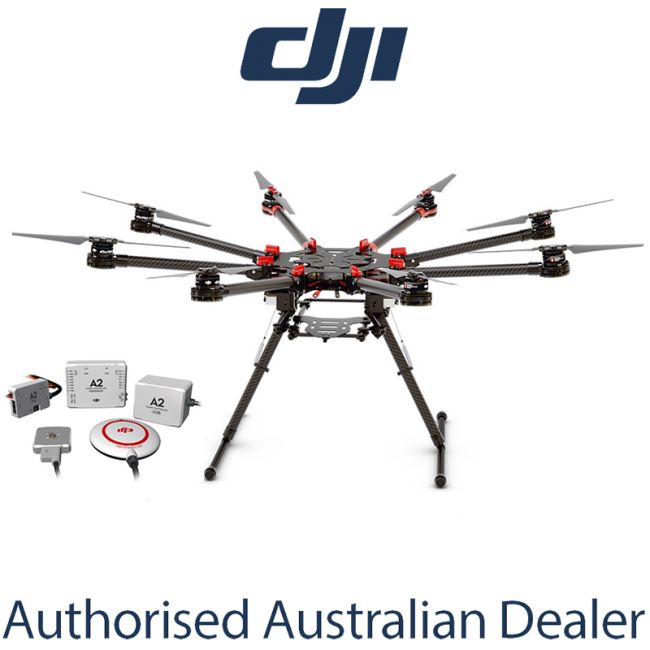

DJI S1000 Plus + A2

THIS PRODUCT IS TEMPORARILY UNAVAILABLE, SORRY
A$4,599.00
Out of stock
Free Shipping for Orders over $98* (*excludes bulky items)
No SURCHARGE FOR CREDIT CARDS
  • DJI Price Match Guarantee – Click here for more info
  • Spreading Wings Octocopter
  • Comes With A2 Flight Control System
  • Compatible with Zenmuse Gimbals
  • Designed to Carry DSLR-Sized Camera
  • Supports A2 and WooKong-M FCs
  • Up to 24 Pound Total Take-Off Weight
  • Collapsible Frame and Folding Propellers
  • Retractable Landing Gear
  • Low Gimbal Mounting with Dampening
  • Up to 15 Minutes Flying at 15,000mAh
  • 12 Months Australian Warranty

DJI S1000 Plus is the Spreading Wings Octocopter made to be compatible with Zenmuse gimbals to capture aerial still and video images. Now the package also comes with A2 flight control system, an Advanced Stabilization Controller for Multi-Rotor Platforms. It is designed to carry DSLR-sized cameras and features carbon fiber frame arms, collapsible frame and folding propellers for easy transport and safekeeping plus a retractable landing gear to suppress unwanted vibrations during the shoot. It supports up to 24 pound total take-off weight and has low gimbal mounting with dampening. It supports A2 and WooKong-M FCs, depending on the preference and the types of radios to be used. S1000 Plus has the capability of up to 15 minutes flying at 15,000mAh


Product Features in Detail


Large Carrying Capacity, Strong And Stable

Free yourself from weight limits and fly with heavy DSLR cameras such as the 5D Mark III with the advanced eight-rotor propulsion system of the S1000+. The S1000+’s arms and landing gear are made of sturdy carbon fiber, giving remarkable stability and strength. You’re flying in a variety of flight conditions with confidence, knowing your gear is safe.


Highly Portable, With Foldable Arms

With arms that fold in to save space, the S1000+ is built to be taken wherever you need to go. Then when you want to fly, you are ready to start shooting in just a few minutes.


Removable Upper Center Board

The upper center board can be removed, giving you access to the IMU. Additionally, there are eight positions reserved for your extra equipment. So installation of your main controller, iOSD, Lightbridge, or any other accessories is faster and easier than ever before.
This new center board structure is perfectly compatible with the DJI WKM and A2 flight controllers.


New Power Distribution System

A redesigned, rebuilt power distribution system improves safety and reliability. Gold-plated metal bearings with a unique screw design secure the power cords, ensuring cables will not come loose during flight and allowing easy setup.


Sparkproof Plug

Prevent short circuits and easily plug in your power supply with the AS150 sparkproof plug.


Professional Quality

Weighing just 4.4kg, the S1000+ has a maximum takeoff weight of 11kg. This means you can easily carry most cameras and gimbals, including your 5D Mark III. Used with a 6S 15000mAh battery, it can fly for up to 15 minutes.


Wide Range Of Shooting Angles

Retractable landing gear and a low gimbal mounting bracket combine to enable a wide range of possible shooting angles and camera motions.


Compatible With Zenmuse Gimbals

Full compatibility with DJI’s entire line of Zenmuse Z15 camera gimbals, including the new Z15-5D III (HD), provides unmatched stability in flight.


Reduced Vibrations, Clearer Footage

The S1000+’s gimbal bracket is separated from the main frame by specifically designed dampers. This significantly reduces high-frequency vibrations and makes your shots clearer and sharper.


Greater Power

A 40A electronic speed controller (ESC), our fastest available, is built in to each arm. The 4114 pro motors, high performance 1552 folding propellers, and V-type mixer design combine to give each arm of the S1000+ a maximum thrust of 2.5Kg.
Our latest motor adopts a single wire stator design, offering improved heat dissipation, better performance, and a tidier, more reliable system.


Innovative Arm Design

Each arm is designed with an 8° inversion and a 3° inclination, making the aircraft more stable when rolling and pitching, yet more flexible when rotating.

Frame
Diagonal Wheelbase
1045mm
Frame Arm Length
386mm
Frame Arm Weight (Including Motor, ESC, Propeller )
325g
Center Frame Diameter
337mm
Center Frame Weight (With Landing Gear Mounting Base, Servos)
1520g
Landing Gear Size
460mm(Length)×511mm(Width)×305mm(Height)
Motor
Stator Size
41×14mm
KV
400rpm/V
Max Power
500W
Weight(With Cooling Fan)
158g
ESC
Working Current
40A
Working Voltage
6S LiPo
Signal Frequency
30Hz ~ 450Hz
Drive PWM Frequency
8KHz
Weight(With Radiators)
35g
Foldable Propeller (1552/1552R)
Material
High strength performance engineered plastics
Size
15×5.2inch
Weight
13g
Flight Parameters
Takeoff Weight
6.0Kg ~ 11.0Kg
Total Weight
4.4Kg
Power Battery
LiPo (6S,10000mAh~20000mAh,15C(Min))
Max Power Consumption
4000W
Hover Power Consumption
1500W (@9.5Kg Takeoff Weight)
Hover Time
15min (@15000mAh & 9.5Kg Takeoff Weight)
Working Environment Temperature
-10 °C ~ +40 °C
Gain Value Settings
For A2 Flight Controller
Basic: Roll 120%, Pitch 120%, Yaw 120%
Attitude: Roll 170%, Pitch 170%, Vertical 120%
For WooKong-M Flight Controller
Basic: Roll 130%, Pitch 130%, Yaw 120%
Attitude: Roll 180%, Pitch 180%, Vertical 120%



For A2 Controller:

Peripheral
Supported Multi-Rotor
Quad-Rotor: +4,x4;
Hex-Rotor +6,x6,Y6,Rev Y6;
Octo-Rotor +8,x8,V8
Supported ESC Output
400Hz refresh frequency
Supported Transmitter For Built-In Receiver
Futaba FASST Series and DJI DESST Series
External Receiver Supported
Futaba S-Bus, S-Bus2, DSM2
Recommended Battery
2S ~ 6S LiPo
Operating Temperature
-5°C to +60°C
Assistant Software System Requirement
Windows XP SP3 / 7 /8 (32 or 64 bit)
Other DJI Products Supported
Z15, H3-2D, H3-3D, iOSD, 2.4G Data Link, S800 EVO, S900, S1000, S1000+, etc.
Flight Performance
Hovering Accuracy(In GPS Mode)
Vertical: ± 0.5m
Horizontal: ± 1.5m
Maximum Wind Resistance
< 8m/s (17.9mph/28.8km/h)
Max Yaw Angular Velocity
150 deg/s
Max Tilt Angle
35°
Ascent/Descent
±6m/s
Electrical & Mechanical
Power Consumption
MAX 5W (Typical Value: 0.3A@12.5V)
Built-In Functions
Built-in Receiver
Multiple Control Modes
2-axis Gimbal Supported
Low Voltage Protection
PC & Bluetooth Ground Station
External Receiver Supported
Intelligent Orientation Control
Sound Alarm
4 Configurable Output
Total Weight
Total Weight: <= 224g(overall)
Dimensions
Flight Controller: 54mm x 39mm x 14.9mm
IMU: 41.3mm x 30.5mm x 26.3mm
GPS-Compass Pro: 62mm (diameter) x 14.3mm
LED-BTU-I: 30mm x 30mm x 7.9mm
PMU: 39.5mm x 27.6mm x 9.8mm

This product comes with 12 Months Australian Warranty.
Our products are sourced from authorised Australian suppliers and therefore come with genuine Australian warranty.
Camera Warehouse does not participate in
'Grey Market' or 'Parallel Import' activities.

DJI S1000 Plus + A2
A2 Flight Control System
Center Frame
8 Frame Arms
2 Landing Skid Tubes
2 Landing Gear legs
GPS Collapsible Mount
2 Springs
Connector Set
3-pin Servo Cable
Screw Package
2 Spare CW Propellers
2 Spare CCW Propellers
4 Magic Tapes
8 Red Knobs
Screw Package
50 Soft Dampers
12 Months Australian Warranty
