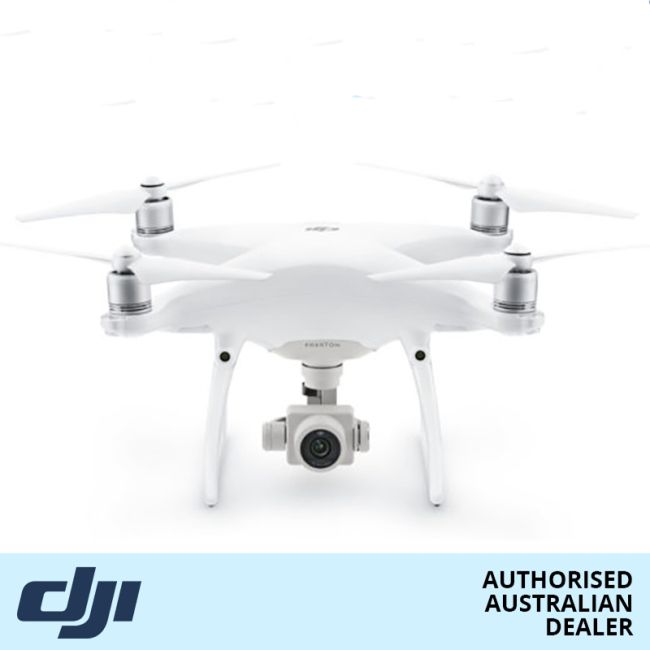

DJI Phantom 4 Advanced Drone

Gain a stunning perspective up in the air with the DJI Phantom 4 Advanced. This quadcopter is equipped with a 1-inch, 20-megapixel sensor that enables 4K video capture at 60 fps as well as burst mode stills at 14 fps. Meanwhile, its 7 km maximum transmission distance means that you can get all the footage you need within the 30-minute maximum flight time on a single full battery charge. This DJI aerial camera avoids obstacles with the help of its five vision sensors. Likewise, accurate locations are provided by its GPS and GLONASS satellite positioning. The Phantom 4 Advanced also boasts of intelligent flight options such as two Draw modes that lets you determine a route by simply sketching on screen. You may also select from two TapFly modes by tapping a visible on-screen area where the drone will proceed. Calling back is easy with the Return to Home functionwhile performing certain functions without the remote controller is possible via the Gesture Mode. Keeping abreast with fast moving objects is a breeze by using any of the ActiveTrack system options. The DJI Phantom 4 Advanced 4K Video Drone is compatible with the DJI GO 4 app which unlocks more functionality and camera settings.

Product Features in Detail

1-Inch 20-Megapixel CMOS Sensor
Sensor size is more important to image quality than the number of pixels because a larger sensor captures more information in every pixel, improving dynamic range, signal-to-noise ratio, and low light performance. The 1-inch 20-megapixel CMOS sensor in the Phantom 4 Advanced is almost four times the size of the Phantom 4's 1/2.3in sensor. It uses larger pixels and has a maximum ISO of 12800 as well as increased contrast. It is good enough for images to be used immediately, while also capturing enough detail for advanced post-processing.

Professional 4K Video
An enhanced video processing system allows video to be captured in cinema and production optimized DCI 4K/60 (4096 x 2160/60fps) at a bitrate of 100Mbps, enabling you to get high-resolution slow motion shots. The Phantom 4 Advanced also supports the H.265 video codec (maximum resolution 4096X2160/30fps). For a given bitrate, H.265 doubles the amount of image processing as H.264, resulting in significantly enhanced image quality. Recording in the high dynamic range D-log mode makes the most of this image data for color grading.

High-Resolution Lens
The resolution and contrast of a lens is critical to image quality, because only a quality lens can capture sharp, vivid photos at high resolutions. The brand new Phantom 4 Advanced camera has an aerial optimized F2.8 wide-angle lens with a 24mm equivalent focal length. It features eight elements – 2 aspherical – arranged in seven groups that fit into a smaller, more compact frame. Its images are consistently detailed with low distortion and low dispersion, ensuring that photos and videos are sharp and vivid. The MTF (Modulation Transfer Function) results have been made public, so people can get a better understanding of lens performance.

Mechanical Shutter
Aerial imaging is used not only to capture landscapes but also to bring about new perspectives, like when filming action scenes and documenting motor racing. Capturing objects moving at high speeds has always been a challenge for flying cameras using electronic shutters. Phantom 4 Advanced uses a mechanical shutter and a large-aperture prime lens. A mechanical shutter with a max speed of 1/2000s eliminates rolling shutter distortion which can occur when taking images of fast moving subjects or when flying at a high speed. The electronic shutter has also been improved with a max shutter speed of 1/8000 seconds, and a new Burst Mode capable of shooting 14 fps at 20 megapixels, all to catch the perfect moment.

5 Vision Sensors
Equipped with the FlightAutonomy system made up of 5 vision sensors, dual-band satellite positioning (GPS and GLONASS), ultrasonic rangefinders and redundant sensors, Phantom 4 Advanced is able to hover precisely in places without GPS and fly in complex environments. The dual forward vision sensors can see as far as 30m out in front, and enable auto brake, hover or detour in front of obstacles within 15-meter range.

Flight Modes
Different productions require different flight characteristics, and the Phantom 4 Advanced offers three modes for flight: P, A and S. In Position Mode, TapFly, ActiveTrack, obstacle sensing and positioning features are available. Sport Mode adds extra agility and higher speed, reaching 45mph (72kph). Atti Mode switches off satellite stabilization and holds the Phantom 4 Advanced’s altitude. It is ideal for experienced pilots looking to capture smoother footage. Tripod Mode, which limits speed to 4mph (7kph) provides precision control for fine framing and indoor flying.

Draw Technology
Draw is a brand new technology for waypoint control. Simply draw a route on screen and the Phantom 4 Advanced will move in that direction while keeping its altitude locked. This allows the pilot to focus on camera control and enables more complex shots. There are two Draw modes that can be used in different scenarios.

Forward: The aircraft follows the route at a constant speed with the camera facing in the direction of flight.

Free: The aircraft only moves along the route when instructed. In this mode, the camera can face in any direction during a flight.

ActiveTrack
Following fast-moving objects can be very challenging, but advanced image recognition algorithms used by the Phantom 4 Advanced allow it to recognize and track the object while keeping it in frame. This new algorithm also recognizes more subjects, from people to vehicles to animals, and will adjust its flight dynamics accordingly, ensuring smoother shots.

Pilots can now choose between:
Trace – Follow behind or in front of a subject, avoiding obstacles automatically.
Profile – Fly alongside a subject at a variety of angles to get profile shots of the subject.
Spotlight – Keep the camera trained on a subject while the aircraft flies almost anywhere.

TapFly
Fly in any direction visible on-screen with a simple tap. Tap anywhere on-screen to smoothly adjust the direction of flight while automatically avoiding obstacles * and tap the screen again or use control sticks to change direction. A new AR route function shows the aircraft’s real-time flight direction for reference as its route is adjusted. As it can be difficult to control altitude, course, speed and camera pitch simultaneously using joysticks, TapFly Free allows a pilot to set the direction of flight, allowing them to turn the Phantom 4 Advanced or tilt the gimbal as required without changing the direction of flight. In total, there are now two TapFly modes:

TapFly Forward – Tap to fly in the selected direction.

TapFly Free – Lock the forward direction of the Phantom without locking the camera direction allowing it to turn as it flies.

Return to Home
In its Return to Home mode, the Phantom 4 Advanced can automatically choose the best route to return home depending on environmental conditions. It records its route as it flies, allowing it to return along the same route avoiding obstacles if the control signal is disconnected.

Based on its altitude at the time of disconnection, the Phantom 4 Advanced is also able to adjust its flight path to avoid obstacles it has seen during its flight. At takeoff, the Phantom 4 Advanced will record the scene below and compare its recording with what it sees as it returns, for more precise landing. It can also detect the ground to see whether there is a suitable spot for landing. If any obstacles are found, or there is water on the ground, it will alert the pilot and hover at an appropriate height, helping the aircraft to land more safely.

Gesture Mode
Using Gesture Mode, selfies can be captured easily using a few gestures without the remote controller. Advanced computer vision technology allows the Phantom 4 Advanced to take instructions through gestures. The subject simply lifts their arms when facing the camera and the aircraft will recognize this movement by locking on and placing the subject in the center of the frame. When ready for a photo, the subject holds their arms out to signal the aircraft. A three second countdown will begin, giving time to strike a pose, allowing moments to be captured without the remote control.

Sensor Reduncy
The Phantom 4 Advanced features dual compass modules and dual IMU units, making it more reliable. Compasses and IMUs are important sensors to ensure a stable flight and the Phantom 4 Advanced constantly compares the data it receives through both pairs. This data is run through advanced algorithms to check accuracy and any inaccurate data is simply discarded without affecting flight, keeping flight steady and reliable.

Intelligent Batteries
Professional aerial imaging benefits from longer flight times. The Phantom 4 Advanced has a maximum flight time of 30 minutes, providing more time in the air to capture the perfect shot. The DJI GO 4 app shows battery lifetime and calculates remaining flight time according to distance traveled and more. It will give alerts when it reaches a minimum safe amount required for a safe journey back to the takeoff point. An advanced battery management system is also in place to prevent overcharging and over draining. When placed in longer term storage, batteries will discharge power to maintain good health.

DJI GO 4 App
Using the DJI GO 4 app, a large number of Intelligent Flight Modes are available. It also provides access to full manual camera controls, including ISO, aperture, shutter speed, image formats, and more. Any changes in DJI GO 4 will appear almost instantly on-screen. Vital flight data and video transmission status are easy to check in the app, further enhancing control efficiency and convenience.
