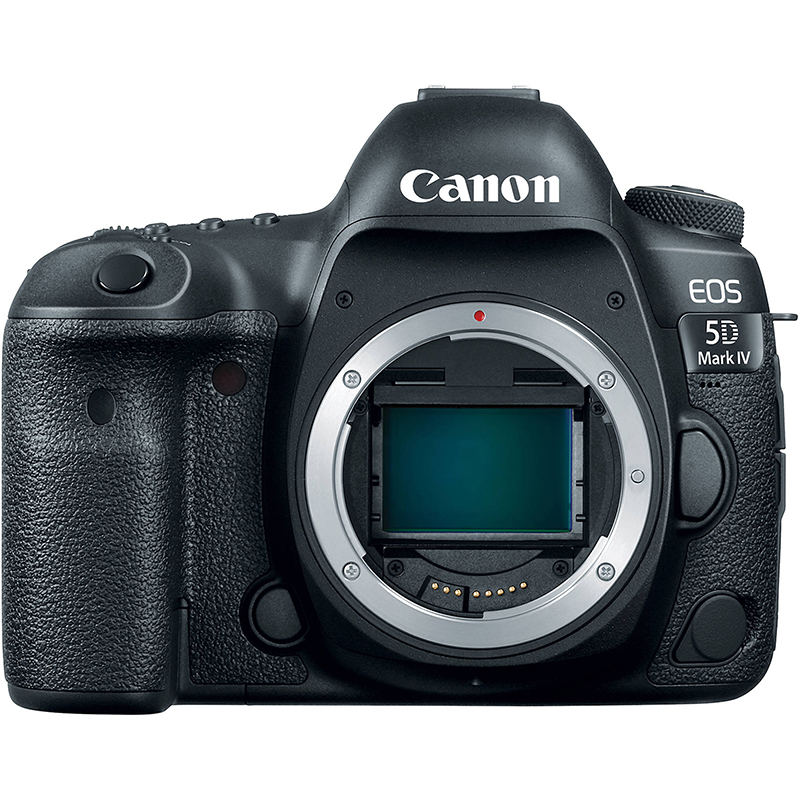

Canon EOS 5D Mark IV Body
- 30.4 Megapixel Full-Frame CMOS Sensor
- DIGIC 6+ Processor
- 4K Video recording at 30p
- 8.8 MP 4K Still Image Grab
- 150,000-pixel RGB+IR Metering Sensor
- 100-32000 native ISO range
- 8.1cm (3.2") 1.23M-dot Touchscreen LCD Monitor
- Dual Pixel CMOS Autofocus
- 61 Reticular AF points
- Dual Pixel RAW Lens Optimizer
- Continuous shooting speed of up to 7 fps
- Built-in GPS, WiFi, and NFC connectivity
- CF and SD card slots
- 5 Years Warranty from Canon Australia
Canon ushers in a formidable upgrade to their already impressive roster of DSLR cameras with the EOS 5D Mark IV. Featuring a massive 30.4 Megapixel Full-Frame CMOS Sensor, this works with the DIGIC 6+ processor to capture images of high resolution and great detail. You can also maintain image sharpness in low-light situations is also not a problem with this camera's 100-32000 native ISO range that can be expanded to 50-102400. Fast-moving subjects have also found their match with the Canon EOS 5D Mark IV with its impressive 61 Reticular AF points that enable continuous shooting speed of up to 7 fps. This Canon DSLR camera is also capable of advanced face detection and scene recognition functions thanks to its 150,000-pixel RGB+IR Metering Sensor. It can also prevent low quality images due to lens aberration via the Dual Pixel RAW Lens Optimizer. If those are not impressive enough, the EOS 5D Mark IV has 4K Video Recording at 30p that is equipped with Dual Pixel CMOS Autofocus to capture those precious memories in stunning clarity. If you need thumbnails, you can also activate the camera's 8.8 MP 4K Still Image Grab. All recorded media and camera setting adjustments can be viewed through the 3.2", 1.23M-dot Touchscreen LCD Monitor. File storage is also not an issue for it comes with CF and SD card slots. Once you are ready to broadcast your shots and footages, geotagging and online sharing is also possible with the Canon EOS 5D Mark IV DSLR Camera through its built-in GPS, WiFi, and NFC connectivity.
Product Features in Detail
A CMOS Sensor to reckon with
The camera boasts a 30.4 Megapixel full-frame, high-speed CMOS sensor that’s is unmatched for its remarkable high-resolution capability. Measuring approximately 36.0mm x 24.0mm, the same size and ratio as a 35mm film frame, it captures incredible still and 4K video clips which are suitable for post-processing.
DIGIC 6+ Image Processor
The powerful DIGIC 6+ Image Processor increases the EOS 5D Mark IV camera’s in-camera capabilities, enabling fast operation across the board and helping to ensure that high-quality still image and 4K video recording is achieved no matter the shooting environment. It has a noise-processing algorithm that helps reduce noise at high ISO settings and a Digital Lens Optimizer that applies aberration and diffraction corrections as well as other corrective measures which are specific to the lens in use.
Impressive ISO range
With a native ISO range of 100–32000 that is expandable to 50–102400, the EOS 5D Mark IV is reliable for low-light photography. There's also no compromise in the image quality for its sensor has an improved S/N ratio which helps deliver high-level light sensitivity. These features make this camera up to the task whether you are working at low-light settings or simply suppressing camera shake blur.
OK with 4K
Aside from high-quality still images, the Canon EOS 5D Mark IV can capture Digital Cinema standard 4K videos of 4096 x 2160 pixels at up to 30 or 24 fps. It also supports the 4K broadcasting standard of 3840 x 2160 pixels with slight trimming on the left and right sides. The EOS 5D Mark IV is also equally able to shoot Full High Definition video at up to 60p and standard HD at frame rates of up to 120p which are great for slow-motion footages. It also supports both MOV and MP4 formats for a variety of applications right out of the camera.
Dual-Pixel CMOS AF
With two photodiodes per pixel that are capable of detecting movement shifts, the CMOS sensor can deliver fast and accurate AF throughout approximately 80% of the image plane. This Dual Pixel CMOS AF enables continuous automatic AF and AF tracking that enhances overall camera operation for sharp stills and accurate focus transitions in movies. Working with the EOS 5D Mark IV’s 3.2" touch panel LCD screen, Dual Pixel CMOS AF lets photographers select focus points with the touch of a finger, and confirm focus by zooming in on the image or enlarging stills grabbed from video recordings.
Keep an eye on the camera's settings
The EOS 5D Mark IV camera features a 1.62 million dot, low-reflection 3.2-inch Clear View Touchscreen LCD II monitor for bright, sharp display in a wide variety of shooting situations. This feature enables fast settings adjustments like AF frame switching and image magnification during Live View shooting and movie shooting. Still photographs can also be captured quickly with the touch panel’s shutter release function. Meanwhile, it also has a Quick Control screen that can be customized for operational convenience. Image review and playback are also enhanced with the EOS 5D Mark IV camera’s Clear View LCD II Monitor.
61 Autofocus Points
The EOS 5D Mark IV camera incorporates a 61-point High Density Reticular AF II system which features up to 41 cross-type points and an extensive AF area that extends well into the top and bottom of the peripheral frame. It also has a wide subject tracking area that enhances the AF system with consistent focus tracking to capture the action at hand and includes Canon’s AI Servo AF III, which remembers the AF path and helps refine precision shot-to-shot. Low-light performance is phenomenal – the AF system’s low-intensity limit is EV -3 at the center AF point and all 61 AF points are compatible down to f/8 for excellent low-light performance, even with lens extenders attached. To help ensure that AF points and other shooting information are visible at a glance, the EOS 5D Mark IV also features Canon’s Intelligent Viewfinder II for a bright, customizable view. Whether choosing individual AF points manually or using one of the camera’s automatic AF selection modes, the EOS 5D Mark IV’s AF system is a significant part of its overall excellence.
150,000-pixel RGB+IR Metering Sensor
To help deliver nearly fool-proof performance, the EOS 5D Mark IV camera employs a powerful and instant subject and light analysis system. The iSA Intelligent Scene Analysis system uses its own RGB+IR light sensor with an approximately 150,000-pixel resolution to provide the camera with immense image analysis in an instant, making necessary corrections along the way. The sensor enables Canon’s anti-flicker function, which detects the frequency and phase of a light source’s flicker (such as a fluorescent light) and captures images near the point of peak brightness when the subject is most likely to be well-illuminated. The EOS 5D Mark IV also incorporates Canon’s Intelligent Tracking and Recognition system (iTR AF) that detects and tracks subjects, automatically switching the AF point to optimize tracking. Using tracking algorithms tailored to recognize faces and colors, this system not only helps to quickly and automatically select the ideal capture settings, but also serves as a brilliant foundation to the EOS 5D Mark IV’s AF system.
Dual Pixel RAW
The EOS 5D Mark IV camera is equipped with a number of advanced features designed to combat image degradation from lens aberration, focus and other characteristics that can adversely affect the quality of the final image. The EOS 5D Mark IV’s Dual Pixel CMOS AF system enables capture of Dual Pixel Raw (DPRAW) files. Images shot as DPRAWs have additional adjustment possibilities when processed with Canon’s Digital Photo Professional image processing software, which enables pixel-level adjustment and refinement for still photographs and includes Image Micro-adjustment to help maximize sharpness in detail areas, Bokeh Shift for more pleasing soft focus areas and Ghosting Reduction to help reduce aberrations and flare.
Digital Photo Professional
This camera is also equipped with a number of in-camera optical correction functions previously available only using Digital Photo Professional. It comes preloaded with aberration data particular to specific lenses, helping to eliminate the need to register lens data on previously released lenses and correcting images with virtually no delay in-camera. The EOS 5D Mark IV not only fixes peripheral brightness and chromatic aberration, but also features distortion correction which helps resolve barrel and pincushion distortions as well as diffraction correction to eliminate the blurring effects that can be created when capturing an image at a small aperture.
Built-in GPS
The EOS 5D Mark IV camera’s built-in GPS helps photographers and filmmakers both tag their images with critical location data, and also adjust the time and timestamp on the camera automatically. Featuring both built-in GPS and Wi-Fi technology, the EOS 5D Mark IV can use GPS and WFT (Wireless File Transfer) together, making it easy to upload numerous images and movies both quickly and from increasingly distant locales. Compatible with American GPS satellites, Russian GLONASS satellites and Japanese quasi-zenith satellites Michibiki, the EOS 5D Mark IV’s GPS information stays reliably accurate in many locations.
WiFi and NFC connectivity
Using the free Canon Camera Connect app on a compatible iOS or Android device, the EOS 5D Mark IV can easily be set up to shoot remotely from a distance, even in Live View mode, with complete control of settings such as aperture, shutter speed, ISO, focus and shutter release. Image review and transfer are similarly fast and easy without ever having to take the camera out of its bag. Full DLNA (Digital Living Network Alliance) compatibility means easy sharing between the EOS 5D Mark IV and other DLNA products, such as HDTVs and compatible smartphones. Still images can even be transferred between two wireless-enabled Canon cameras over a Local Area Network (LAN). Images and video can also be uploaded instantly to CANON iMAGE GATEWAY for easy sharing on social networking sites, and photos can even be printed on a wireless PictBridge-certified printer without the need for a PC. The EOS 5D Mark IV is also compatible with Canon’s optional Wireless File Transmitter WFT-E7, which supports 2.4GHz/5GHz frequency bands, multiple camera sync and can extend the EOS 5D Mark IV’s operating range up to 10 times that of the camera’s built-in Wi-Fi.
TYPE | |
Type
|
Digital, AF/AE single-lens reflex, camera
|
Recording Media
|
1. CF card
|
Type I drive (Type II and Microdrive non-supported.) | |
UDMA Mode 7 supported. | |
CFast cards cannot be used. | |
2. SD, SDHC and SDXC memory cards | |
UHS-I supported. | |
MultiMediaCards (MMC) cannot be used (results in error). | |
UHS-II not supported. If a UHS-II card is used, it may be slower than a UHS-I (depends on the card specifications). | |
Compatible Lenses
|
Canon EF Lenses (excluding EF-S and EF-M lenses)
|
Lens Mount
|
Canon EF Mount
|
IMAGE SENSOR | |
Type
|
CMOS sensor (Compatible with Dual Pixel CMOS AF)
|
Pixels
|
Approx. 30.4 megapixels
|
Pixel Unit
|
Approx. 5.36 µm square
|
Total Pixels
|
Approx. 31.7 megapixels
|
Aspect Ratio
|
3:2 (Horizontal: Vertical)
|
Color Filter System
|
RGB primary color filters
|
Low Pass Filter
|
Installed in front of the image sensor, non-detachable
|
Dust Deletion Feature
|
1. Self Cleaning Sensor Unit |
Removes dust adhering to the low-pass filter. | |
Self-cleaning can be done automatically when the power is turned on/ off. | |
After the cleaning is performed, the camera will automatically restart (Power OFF to ON). | |
When you use Multi Shot Noise Reduction, Clean now cannot be selected. | |
2. Dust Delete Data acquisition and appending | |
The coordinates of the dust adhering to the low-pass filter are detected by a test shot and appended to subsequent images. | |
The dust coordinate data appended to the image is used by the EOS software DPP to automatically erase the dust spots. | |
3. Manual cleaning | |
RECORDING SYSTEM | |
Recording Format
|
Complies with Design rule for Camera File System 2.0 and EXIF 2.3
|
Image Format
|
Still Image: JPEG, RAW (14 bit Canon Original)
|
Video: MOV (4K video: Motion JPEG; Full HD and HD | |
Movie: MPEG4 AVC/H.264*; Audio: Linear PCM), MP4 (Movie: MPEG4 AVC/H.264*; Audio: AAC) | |
* Variable (averaged) bit rate. | |
File Size
|
3:2 Aspect Ratio
|
Large/RAW: Approx. 30.1 Megapixels (6720 x 4480) | |
mRAW: Approx. 16.9 Megapixels (5040 x 3360) | |
Medium: Approx. 13.3 Megapixels (4464 x 2976) | |
Small 1/sRAW: Approx. 7.5 Megapixels (3360 x 2240) | |
Small 2: Approx. 2.5 Megapixels (1920 x 1280) | |
Small 3: Approx. 0.35 Megapixels (720 x 480) | |
4:3 Aspect Ratio | |
Large/RAW: Approx. 26.7 Megapixels (5952 x 4480)* | |
mRAW: Approx. 15.1 Megapixels (4480 x 3360) | |
Medium: Approx. 11.8 Megapixels (3968 x 2976) | |
Small 1/sRAW: Approx. 6.7 Megapixels (2976 x 2240)* | |
Small 2: Approx. 2.2 Megapixels (1696 x 1280)* | |
Small 3: Approx. 0.31 Megapixels (640 x 480) | |
16:9 Aspect Ratio | |
Large/RAW: Approx. 25.4 Megapixels (6720 x 3776)* | |
mRAW: Approx. 14.3 Megapixels (5040 x 2836)* | |
Medium: Approx. 11.2 Megapixels (4464 x 2512)* | |
Small 1/sRAW: Approx. 6.3 Megapixels (3360 x 1888)* | |
Small 2: Approx. 2.1 Megapixels (1920 x 1080) | |
Small 3: Approx. 0.29 Megapixels (720 x 408)* | |
1:1 Aspect Ratio | |
Large/RAW: Approx. 20.1 Megapixels (4480 x 4480) | |
mRAW: Approx. 11.3 Megapixels (3360 x 3360) | |
Medium: Approx. 8.9 Megapixels (2976 x 2976) | |
Small 1/sRAW: Approx. 5.0 Megapixels (2240 x 2240) | |
Small 2: Approx. 1.6 Megapixels (1280 x 1280) | |
Small 3: Approx. 0.23 Megapixels (480 x 480) | |
Recording Functions
|
1. Standard |
Select manually to record on either the CF card or SD card. | |
2. Auto switch card | |
When the current card becomes full, the camera switches to the other card automatically. | |
3. Record separately | |
The CF card and SD card record the same image at a different image recording quality (Large/Fine, Large/Normal, Medium/Fine, Medium/Normal, Small 1/Fine, Small 1/Normal, Small 2, Small 3, RAW, mRAW, sRAW). | |
4. Record to multiple | |
Both the CF card and SD card record the same image at the same image recording quality (Also applies to RAW+JPEG, mRAW+JPEG, and sRAW+JPEG). | |
Backup Recording
|
N/A
|
File Numbering
|
The following three types of file numbers can be set:
|
1. Continuous numbering | |
The numbering of captured images continues even after you replace the card. | |
2. Auto reset | |
When you replace the card, the numbering will be reset to start from 0001. If the new card already contains images, the numbering will continue from the last recorded image in the card. | |
3. Manual reset | |
Resets the file number to 0001, and creates a new folder automatically. | |
1. Continuous numbering | |
The numbering of captured images continues even after you replace the card. | |
2. Auto reset | |
When you replace the card, the numbering will be reset to start from 0001. If the new card already contains images, the numbering will continue from the last recorded image in the card. | |
3. Manual reset | |
Resets the file number to 0001, and creates a new folder automatically. | |
RAW + JPEG Simultaneous Recording
|
Possible
|
Color Space
|
sRGB, Adobe RGB
|
Picture Style
|
1. Auto |
2. Standard | |
3. Portrait | |
4. Landscape | |
5. Fine Detail | |
6. Neutral | |
7. Faithful | |
8. Monochrome | |
9. User Defined 1-3 | |
a. In Scene Intelligent Auto, [Auto] will be set automatically. | |
b. [Standard] is the default setting for [User Def. 1-3]. | |
WHITE BALANCE | |
Settings
|
Auto (Ambience priority/White priority), Daylight, Shade, Cloudy*, Tungsten Light, White Fluorescent Light, Flash, Custom (Custom WB), Color Temperature
|
* Effective also in twilight and sunset. | |
Auto White Balance
|
Option between ambience priority and white priority settings
|
Color Temperature Compensation
|
Blue/amber bias: ±9 levels
|
Magenta/green bias: ±9 levels | |
Corrected in reference to the current WB mode's color temperature. | |
Color Temperature Information Transmission
|
Provided
|
VIEWFINDER | |
Type
|
Eye-level SLR (with fixed pentaprism)
|
Coverage
|
Approx. 100% vertically and horizontally (at approx. 21mm eyepoint)
|
Magnification
|
Approx. 0.71
|
Eye Point
|
Approx. 21mm (at -1m-1 from the eyepiece lens center)
|
Dioptric Adjustment Correction
|
Adjustable from approx. -3.0 to +1.0 m-1 (dpt)
|
Focusing Screen
|
Fixed
|
Mirror
|
Quick-return half mirror
|
Viewfinder Information
|
Displayed with transparent liquid crystal
|
- AF point information | |
- AF operation* | |
- Area AF frame | |
- Metering mode* | |
- Spot metering circle | |
- Image quality* | |
- Electronic level (dedicated indicator)* | |
- Digital Lens Optimizer* | |
- Battery (remaining capacity)* | |
- Dual Pixel RAW setting (shooting)* | |
- Shooting mode* | |
- Flicker detection* | |
- White balance* | |
- Warning symbol | |
- Drive mode* | |
-AF status indicator | |
You can select whether or not to display the asterisked items [Show/hide in viewfinder]. | |
Depth Of Field Preview
|
Enabled with depth of field preview button
|
AUTOFOCUS | |
Type
|
TTL secondary image-forming phase-difference detection system with AF-dedicated sensor
|
Focusing Modes
|
1. Autofocus |
i. One-Shot AF | |
ii. Predictive AI Servo AF (AI Servo AF III) | |
iii. AI Focus AF | |
Switches between One-Shot AF and AI Servo AF automatically. | |
2. Manual focus | |
AF Point Selection
|
1. Single-point Spot AF (Manual selection) |
2. Single-point AF (Manual selection) | |
The checkmark cannot be removed from this option. | |
3. AF point expansion (Manual selection, 4 points: Up, down, left and right) | |
4. AF point expansion (Manual selection, surrounding 8 points) | |
5. Zone AF (Manual zone selection) | |
All AF points divided into nine focusing zones. | |
6. Large Zone AF (Manual zone selection) | |
All AF points divided into three focusing zones. | |
7. AF point Auto selection AF | |
Active AF Point Indicator
|
Displayed in viewfinder with transparent LCD and on LCD panel
|
AF Assist Beam
|
1. Enable |
2. Disable | |
3. IR AF assist beam only | |
EXPOSURE CONTROL | |
Metering Modes
|
150,000-pixel RGB+IR metering sensor |
153,600 effective pixels (480 x 320) | |
EOS iSA System with 252 zone (18 x 14) metering | |
1. Evaluative metering (linked to all AF points) | |
2. Partial metering (center, approx. 6.1% of viewfinder) | |
3. Spot metering (center, approx. 1.3% of viewfinder) | |
AF point-linked spot metering not provided. | |
4. Center-weighted average metering | |
Metering Range
|
EV 0-20 (at 73°F / 23°C , ISO 100)
|
Exposure Control Systems
|
(1) Scene Intelligent Auto |
(2) Program AE (shiftable) | |
(3) Shutter-priority AE (Safety shift possible) | |
(4) Aperture-priority AE (Safety shift possible) | |
(5) Manual exposure | |
(6) Bulb | |
(7) Custom shooting mode C1, C2, C3 | |
Exposure Compensation
|
Manual: ±5 stops in 1/3 or 1/2-stop increments
|
AEB: ±3 stops in 1/3 or 1/2-stop increments | |
* Indicated up to ±3 stops on the LCD panel and in the viewfinder. To set exposure compensation exceeding ±3 stops, you can use Quick Control. | |
* Live View shooting, exposure compensation can be set up to ±3 stops. | |
AE Lock
|
(1) Auto AE lock |
In the One-Shot AF mode with evaluative metering, AE lock takes effect when focus is achieved. | |
(2) Manual AE lock | |
With AE lock button. (AE lock is updated each time you press the button.) Enabled in all metering modes. | |
SHUTTER | |
Type
|
Vertical-travel, mechanical, focal-plane shutter with all speeds electronically-controlled
|
Shutter Speeds
|
1/8000 to 30 sec., bulb (Total shutter speed range. Available range varies by shooting mode.)
|
X-sync at 1/200 sec. | |
Shutter Release
|
Soft-touch electromagnetic release
|
Self Timer
|
10-sec. self-timer, 2-sec. self-timer
|
EXTERNAL SPEEDLITE | |
EOS Dedicated Speedlite
|
E-TTL II autoflash with all EX Series Speedlites
|
Zooming to Match Focal Length
|
Provided
|
Flash Exposure Compensation
|
±3 stops in 1/3- or 1/2-stop increments
|
FE Lock
|
Provided
|
External Flash Settings
|
1. External flash control |
Flash firing | |
E-TTL II Flash metering | |
Flash sync. speed in Av mode | |
Flash mode | |
Radio transmission wireless flash shooting | |
Optical transmission wireless flash shooting | |
Flash ratio control | |
Zoom | |
Sync setting | |
Flash exposure compensation | |
FEB | |
Clear settings | |
2. Flash Custom Function setting | |
PC Terminal
|
Provided (no polarity)
|
DRIVE SYSTEM | |
Drive Modes
|
1. Single shooting |
2. High-speed continuous shooting | |
3. Low-speed continuous shooting | |
4. Silent single shooting | |
5. Silent continuous shooting | |
6. 10-sec. self-timer/remote control | |
7. 2-sec. self-timer/remote control | |
Continuous Shooting Speed
|
High-speed continuous shooting: Max. approx. 7.0 fps
|
- With 1/500 sec. or faster shutter speed, maximum aperture (varies depending on the lens), with a fully-charged Battery Pack LP-E6N, and at room temperature (73°F/23°C). | |
- The maximum continuous shooting speed will decrease under the following shooting conditions: | |
- [Anti-flicker shoot.: Enable] results in maximum approx. 6.6 fps. | |
- [Dual Pixel RAW: Enable] and RAW or RAW+JPEG image quality. | |
- [Digital Lens Optimizer: Enable] will greatly decrease the continuous shooting speed. | |
- The continuous shooting speed may become slower depending on the shutter speed, aperture, subject conditions, brightness, lens, flash use, temperature, battery type, remaining battery level, etc. | |
- With the AF mode set to One-Shot AF and the Image Stabilizer turned off when using the following lenses: EF 300mm f/4 L IS USM, EF 28-135mm f/3.5-5.6 IS USM, EF 75-300mm f/4-5.6 IS USM, EF 100-400mm f/4.5-5.6L IS USM. | |
- In AI Servo AF operation, the continuous shooting speed may become slower depending on the subject and the lens used. | |
- If you use Battery Pack LP-E6 and shoot in low temperatures (battery temperature is low), the high-speed continuous shooting speed may become slower. | |
- The continuous shooting speed may become slower if the remaining battery level is low or if you shoot under low-light conditions. | |
Low-speed continuous shooting: Max. approx. 3.0 fps | |
Silent continuous shooting: Max. approx. 3.0 fps | |
LIVE VIEW FUNCTIONS | |
Shooting Modes
|
Still photo and video recording
|
Focusing
|
1. Dual Pixel CMOS AF |
Dual Pixel CMOS AF is possible with all EF lenses. | |
2. Manual focus | |
Magnify the image by 5x or 10x and focus manually. | |
Metering Modes
|
1. Evaluative metering 315-zone (21 x 15) |
2. Partial metering (approx. 6.3% of Live View screen) | |
3. Spot metering (approx. 2.7% of Live View screen) | |
4. Center-weighted average metering | |
AE lock possible. The active metering timer can be changed. | |
Metering Range
|
EV 0-20 (at 73°F/23°C, ISO 100)
|
Grid Display
|
1. 3x3 |
2. 6x4 | |
3. 3x3 + diagonals | |
Exposure Simulation
|
Possible
|
Silent Shooting
|
Provided (Mode 1 and 2)
|
VIDEO SHOOTING | |
File Format
|
MOV: |
4K Video: Motion JPEG | |
Full HD/HD Movie: MPEG-4 AVC/H.264Variable (averaged) bit rateAudio: Linear PCM | |
MP4: | |
Movie: MPEG-4 AVC/H.264Variable (averaged) bit rateAudio: AAC | |
File Size
|
Recording Sizes: 4096 x 2160 (4K), 1920 x 1080 (Full HD), 1280 x 720 (HD)
|
Frame Rates
|
MOV: |
4096 x 2160 (4K): 30 fps (29.97 fps) / 24 fps / 23.98 fps | |
1920 x 1080 (Full HD): 60 fps (59.94 fps) / 30 fps (29.97 fps) / 24 fps / 23.98 fps | |
1280 x 720 (HD): 120 fps (119.9 fps) | |
MP4: | |
1920 x 1080 (Full HD): 60 fps (59.94 fps) / 30 fps (29.97 fps) / 24 fps / 23.98 fps | |
Focusing
|
1. Dual Pixel CMOS AF |
2. Manual focus | |
Magnify the image by approx. 5x or 10x and focus manually (not possible during movie shooting). | |
Exposure Compensation
|
Up to ±3 stops in 1/3-stop increments
|
LCD MONITOR | |
Type
|
TFT color, liquid-crystal monitor
|
Monitor Size
|
3.2-inch (Screen aspect ratio of 3:2) |
3.19 in./8.10cm diagonal (2.65 in./6.74cm width, 1.77 in./4.49cm height) | |
Pixels
|
Approx. 1.62 million dots
|
Coverage
|
Approx. 100% |
Viewing angle: 170° vertically and horizontally | |
Brightness Control
|
Automatic
|
Manually adjustable to one of seven brightness levels | |
Coating
|
Clear View LCD II
|
Anti-smudge coating | |
Anti-reflection coating | |
Interface Languages
|
25 (English, German, French, Dutch, Danish, Portuguese, Finnish, Italian, Norwegian, Swedish, Spanish, Greek, Russian, Polish, Czech, Hungarian, Romanian, Ukraine, Turkish, Arabic, Thai, Simplified/Traditional Chinese, Korean, Japanese)
|
TILT DISPLAY | |
On LCD Monitor
|
Electronic level indicates up to 360° roll and ±10° pitch in 1° increments.Precision has a margin of error of up to 1° for ±10°, and up to 3° for ±45°.
|
In Viewfinder
|
Electronic level indicates up to 7.5° roll left/right and ±4° pitch in 1° increments.Precision has a margin of error of up to 1° for ±10°, and up to 3° for ±45°.
|
PLAYBACK | |
Display Format |
Single image display:
|
No information display | |
Basic information display | |
Detailed shooting information display | |
Basic shooting information | |
Lens/histogram information | |
White balance information | |
Picture Style information 1 | |
Picture Style information 2 | |
Color space/noise reduction information | |
Lens aberration correction information 1 | |
Lens aberration correction information 2 | |
GPS information | |
IPTC information (First for EOS) | |
Index display: | |
4-image index | |
9-image index | |
36-image index | |
100-image index | |
Highlight Alert
|
With single-image display (Info.) and single-image display, the white areas with no image data will blink.
|
QUICK CONTROL FUNCTION | |
Items
|
Pressing the Quick Control button displays the Quick Control screen during viewfinder shooting, Live View shooting, movie shooting and playback. |
IMAGE PROTECTION AND ERASE | |
Protection
|
Erase protection can be applied or canceled for a single image (select image), all images in a folder or all images in the card.
|
Erase
|
Erase a single image (playback and erase image), selected images, all images in a folder or all images in a card.
|
DIRECT PRINTING | |
Compatible Printers
|
Images can be sent via Wi-Fi® to a PictBridge-compatible (Wireless LAN) printer and printed.
|
Printable Images
|
1. Individual images |
2. Specify images by folder | |
3. Specify all images in card | |
RAW images and movies cannot be specified for printing. | |
Digital Print Order Format
|
Compliant to DPOF Version 1.1 |
DIRECT IMAGE TRANSFER
|
|
Compatible Images
|
JPEG IMAGES, RAW Images, Movies |
CUSTOMIZATION
|
|
Custom Functions
|
17 Custom Functions settable with the camera
|
Custom Controls
|
Functions can be assigned to the following buttons:
|
- Shutter button halfway pressing | |
- AF-ON button | |
- AE lock button | |
- Depth of field preview button | |
- Lens AF stop button | |
- Multi-function button | |
- SET button | |
- Main Dial | |
- Quick Control Dial | |
- Multi controller | |
- AF area selection button | |
Camera User Settings
|
Current camera settings can be registered to C1, C2 and C3 on the Mode Dial.
|
My Menu Registration
|
Up to six top-tier menu options and Custom Functions can be registered.
|
Up to five My Menu tabs can be added. | |
My Menu tab overall operations | |
- Adding a tab | |
- Deleting tabs in a batch | |
- Deleting all tab items | |
- Setting the menu display | |
My Menu tab detailed operations | |
- Selecting a registered item | |
- Sorting registered items | |
- Deleting selected registered items | |
- Deleting registered items in a batch | |
- Deleting tabs | |
- Changing a tab name (16 ASCII characters) | |
INTERFACE | |
USB Terminal
|
For computer communication |
For WFT-E7 (Ver.2.0) connection | |
For Connect Station CS100 connection | |
Video Out Terminal
|
HDMI Type C (Resolution switches automatically), CEC compatibleImages can be displayed through the HDMI output and on LCD monitor at the same time.Images will not be displayed unless [NTSC] or [PAL] is properly set according to the video system of the TV set.
|
POWER SOURCE | |
Battery
|
Battery Pack LP-E6N (or LP-E6) x 1
|
- With the AC Adapter + DC Coupler, AC power is possible. | |
- When the Battery Grip BG-E20 is used, two battery packs (LP-E6N or LP-E6) can be installed. | |
Configuration: Camera Body Only; Shooting Method: Viewfinder Shooting; Battery: LP-E6N; Temperature: At 23°C/73°F; Possible Shots: 900 | |
Configuration: Camera Body Only; Shooting Method: Viewfinder Shooting; Battery: LP-E6N; Temperature: At 0°C/32°F; Possible Shots: 850 | |
Configuration: Camera Body Only; Shooting Method: Live View Shooting; Battery: LP-E6N; Temperature: At 23°C/73°F; Possible Shots: 300 | |
Configuration: Camera Body Only; Shooting Method: Live View Shooting; Battery: LP-E6N; Temperature: At 0°C/32°F; Possible Shots: 280 | |
Configuration: With Battery Grip BG-E20; Shooting Method: Viewfinder Shooting; Battery: LP-E6N x 2; Temperature: At 23°C/73°F; Possible Shots: 1800 | |
Configuration: With Battery Grip BG-E20; Shooting Method: Viewfinder Shooting; Battery: LP-E6N x 2; Temperature: At 0°C/32°F; Possible Shots: 1700 | |
Configuration: With Battery Grip BG-E20; Shooting Method: Live View Shooting; Battery: LP-E6N x 2; Temperature: At 23°C/73°F; Possible Shots: 600 | |
Configuration: With Battery Grip BG-E20; Shooting Method: Live View Shooting; Battery: LP-E6N x 2; Temperature: At 0°C/32°F; Possible Shots: 560 | |
Battery Check | Automatic battery check when the power switch is turned ON. Displayed in 6 levels. |
Battery level displayed on the LCD panel and in the viewfinder. | |
One of six levels displayed for LP-E6N and LP-E6. The display for other power sources is different. | |
Power Saving
|
Power turns off after the set time (1, 2, 4, 8, 15 or 30 min.) of non-operation elapses.
|
Even when you set the date, time or zone and 1, 2 or 4 min. is set, it will take 6 min. for auto power off to take effect. | |
Date/Time Battery
|
Built-in secondary battery |
When fully-charged, the date/time can be maintained for approx. 3 months | |
Recharge time: approx. 8 hr. | |
The recharge time required to provide the above number of months with no battery pack installed. | |
Start-up Time
|
Approx. 0.1 sec (Based on CIPA testing standards)
|
DIMENSIONS AND WEIGHT | |
Dimensions (W x H x D)
|
Approx. 150.7 x 116.4 x 75.9mm
|
Weight
|
Approx. 890g (Including battery, CF card and SD memory card)
|
Approx. 28.22 oz. / 800g (Body only; without battery, card, body cap and eyecup) | |
OPERATING ENVIRONMENT | |
Working Temperature Range
|
32-104°F/0-40°C
|
Working Humidity Range
|
85% or less
|
EOS 5D Mark IV DSLR Camera
LP-E6N Lithium-Ion Battery Pack
LC-E6 Charger
Eyecup Eg
RF-3 Body Cap
IFC-150U USB 3.0 Interface Cable
Interface Cable Protector
Neck Strap
Software CD
