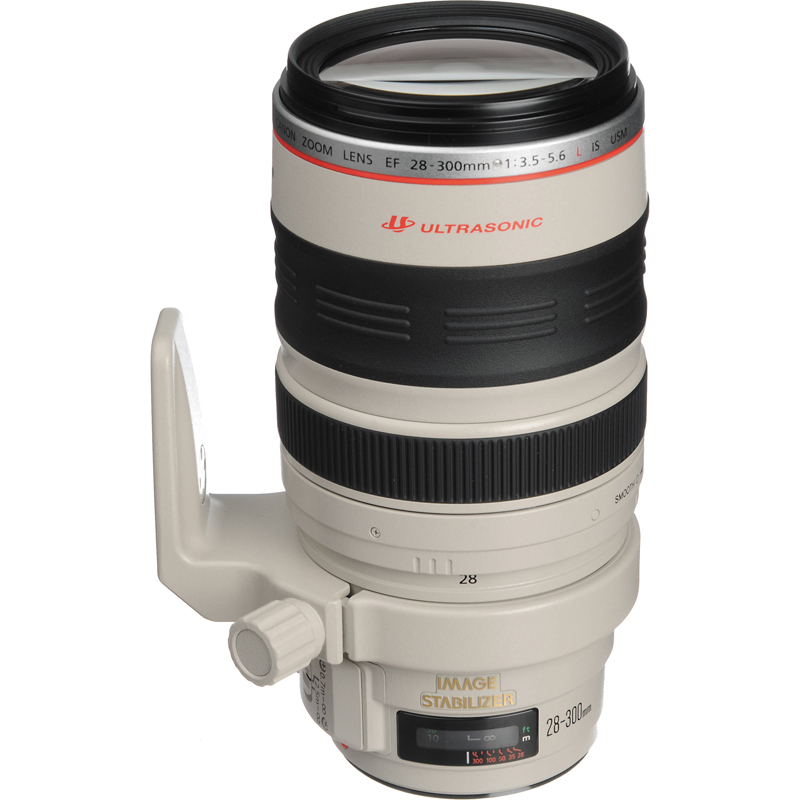

Canon EF 28-300mm f/3.5-5.6L IS USM Lens
- f/3.5-5.6 aperture
- 28-300mm focal length
- AF mode
- Three-stop Image Stabilizer
- New AF algorithms with manual focusing
- Ring-type ultrasonic motor
- Minimum distance of 0.7m inner focusing
- Compatibility: with APS-C and Full Frame Sensor DSLR Cameras
- 5 Years Warranty from Canon Australia
With an ultra-high magnification of 28-300mm zoom with an aperture of 28-135mm, this lens offers a wide-angle zoom range that gives equivalent effect of a 3X faster shutter speed. The lens has three stop Image Stabilizer during hand-held shooting, gaining a minimum distance of 0.7m inner focusing. The ring USM and new AF algorithms for fast and quiet autofocusing also has manual focusing enabled even during the AF mode (full time mechanical manual focus). It is compatible with APS-C and Full Frame Sensor DSLR Cameras.
Product Features in Detail
A true all-in-one lens
With a zoom range covering everything from wide-angle to super-telephoto, Canon's latest professional series is designed for professional photographers looking to limit lens changes and reduce overall kit weight. Perfect for photojournalists and those shooting on the move.
Three-stop Image Stabilizer
The IS technology built-in to the EF 28-300mm f/3.5-5.6L IS USM lens provides a three-stop advantage in low light conditions. This enables slower shutter speeds to be used without incurring blur from camera movement – useful when a situation does not permit the use of a tripod or flash. If the lens senses the photographer is panning to follow a moving subject, it switches off IS in this direction.
Ultrasonic focusing
A ring-type ultrasonic motor drives autofocus extremely quickly, and in near silence. Excellent holding torque ensures the point of focus is reached accurately, without overshooting. Furthermore, full-time manual override is available, making it possible to adjust focus without leaving AF mode.
Perfect for digital
Lens shape and coatings have been optimised to suppress ghosting and flaring, making the EF 28-300mm ideal for use with digital cameras. When fitted to DSLRs with an APS-C size sensor, the lens has an equivalent focal length range of 45-480mm.
Precision optics for high image quality
Beautiful contrast, low distortion and high corner-to-corner resolution is evident throughout the zoom range. An EMD (electromagnetic diaphragm) gives fast, quiet, highly precise aperture control. A circular aperture diaphragm affords pleasing background blur.
Angle of view (horzntl, vertl, diagnl) | 65° - 6° 50’, 46° - 4° 35’, 75° - 8° 15’ |
No. of diaphragm blades | 8 (circular type) |
Minimum aperture | f/22-38 (f/22-40 for cameras featuring 1/3-stop increments) |
Closest focusing distance (m) | 0.7m to infinity (at all zoom focal lengths) |
Maximum magnification (x) | 0.06 (Wide); 0.3 (Tele) |
AF actuator | Ring USM |
Filter diameter (mm) | 77 |
Max. diameter x length (mm) | 92 x 184 |
Weight (g) | 1,670 |
Magnification - Extension Tube EF12 II | Compatible |
Magnification - Extension Tube EF25 II | Only compatible in Tele mode |
Focal Length & Maximum Aperture | 28-300mm 1:3.5-5.6 |
Lens Construction | 22 elements in 16 groups |
Focus Adjustment | Inner focusing system with USM |
Zoom System | Push-pull type |
Lens Cap | E-77U / E-77II |
Lens hood | ET-83G |
Soft case | LZ1324 |
Extenders EF1.4x II and EF2x II | Not compatible |
Canon EF 28-300mm Double Zoom Kit
Lens Cap
Rear Lens Dust Cap E
Lens Hood
Lens Case
Strap for Case
Tripod Mount C
