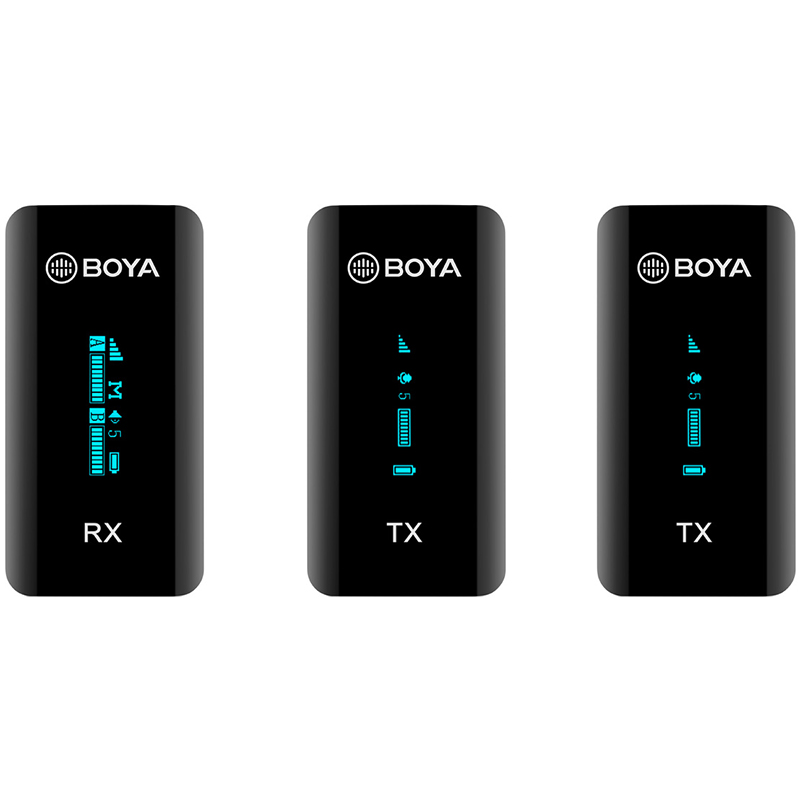

BOYA BY-XM6-S1 Ultra Compact 2.4GHz Dual-Channel Wireless Microphone 1+2
- Includes TRS, TRRS, Type-C cable and 2 x Lavalier Microphones
- Compatible with DSLR, Mirrorless Camera, Smartphone, and Computer
- Ideal for One-Person Vlog, YouTube Video, Live Streaming, Interview, Recording, etc.
- 2.4GHz Wireless Signal Transmission Technology
- Built with Easy-To-Use, Vivid, and Informative OLED Display
- Hi-Fi and Low-Noise Audio Processing and Delivering System
- Headphone Output Jack on Receiver for Real-Time Monitoring
- Built-In Omnidirectional Microphone and a Lavalier Microphone on Transmitter
- Built-in Li-ion Batteries For 7h Use on Transmitter And 6.5h Use on Receiver
- Stereo and Mono Outputs are Available and Switchable on Receiver
- Up to 100m (328ft) Operation Range
The BOYA BY-XM6-S1 is professional quality camera microphone that has a noise cancellation feature that reduces high-frequency noise and low-frequency noise. The noise cancellation also works well with the built-in wind screen that blocks wind noise from getting in. This eliminates the need to put a lot of effort in post production to remove these noises. This is a perfect choice if you are looking for a lightweight and unobtrusive microphone that can be used with DSLR, Mirrorless Camera, Smartphone, and Computer
This microphone is an all-in-one portable equipment set includes a 3.5mm TRS-TRS Audio Cable, 3.5mm TRS-TRRS Audio Cable, Type-C Cable and Lavalier Microphone.
The BOYA BY-XM6-S1 Camera Microphone is a professional grade microphone designed for film and video productions. This mic features a built-in wireless transmitter, a high sensitivity of 131dB, a loudness of up to 125dB, and a frequency range from 20Hz to 20kHz. The BOYA BY-XM6-S1 is easy to use and its built in OLED display provides information on the radio signal strength, battery life, and frequency.
The microphone is made of a 2.4GHz wireless signal transmission technology and a wireless receiver. It comes with a battery, a tripod mount, and a shoe mount. The camera microphone has an easy-to-use, vivid, and informative OLED display.
Product Features in Detail
2.4GHz Ultra-compact Wireless Microphone System
The BOYA BY-XM6-S1, a 2.4GHz adaptive frequency hopping wireless microphone system, consists of one transmitter and one receiver. It’s a perfect sound capturing and delivering solution for one-person vlog, YouTube video, live streaming, interview, recording, etc.
Advanced Technology for Stable Signal Transmission
The BY-XM6 S1 adopts advanced Adaptive Frequency Hopping (AFH) wireless signal transmission technology, which can make the BY-XM6 S1 avoid the disturbed hop frequency parts automatically to realize stable signal transmission in the range of up to 100m (328ft), without obstacle.
Professional Audio Capturing & Delivering
Featuring a high-quality capsule and signal processing circuit with a signal-to-noise over 84dB and a distortion rate less than 0.1%, the BY-XM6 S1 captures and delivers high-quality , clear and low-noise audio.
Ultra-versatile & Ease-to-use Wireless Microphone Kit
With vivid and easy-to-read OLED display on transmitter and receiver, users can adjust the signal transmission precisely. And the transmitter is also designed with a built-in omnidirectional microphone, so users can clip the transmitter on the collar to pick up sounds, while they can also plug a lavalier microphone into transmitter’s MIC IN jack for sound capturing. Plus, this microphone kit is equipped with both 3.5mm TRS-TRS audio cable and 3.5mm TRS-TRRS audio cable. So it can work well with your DSLR or mirrorless camera, smartphone and computer etc.
Transmitter | |
Transmission Type | 2.4GHz Digital Frequency |
Modulation | GFSK |
Operating Range (without obstacle) | Up to 328ft (100m) |
RF Output Power | <10mW |
Polar Pattern | Omnidirectional |
Frequency Response | 50Hz-18KHz |
Maximum SPL | Built-in Microphone: 120dB SPL |
Lavalier Microphone: 110dB SPL | |
Sensitivity | Built-in Microphone: -39dB |
Lavalier Microphone: -39dB | |
SNR | > 84dB |
Power Requirements | Built-in Li-ion Battery or USB-C DC 5V or Charging Contact |
Built-in Battery Life | Approx. 7 hours |
Antenna | PIFA Antenna |
Audio Inputs | 3.5mm TRS MIC/LINE IN Jack or Built-in Microphone |
Weight | Approx. 32g(1.13oz) |
Dimensions | 62.1×31.6×16.5mm |
Operating Temperature | -10°C to 50°C |
Storage Temperature | -20°C to +55°C |
Receiver | |
Transmission Type | 2.4GHz Digital Frequency |
Modulation | GFSK |
Operating Range (without obstacle) | Up to 328ft (100m) |
Audio Output Connector | 3.5mm Headphone Jack |
Audio Output Level | –60 dBV to -20dBV |
Power Requirements | Built-in Li-ion Battery or USB-C DC 5V or Charging Contact |
Built-in Battery Life | Approx. 6.5 hours |
Antenna | PIFA Antenna |
Weight | Approx. 32g(1.13oz) |
Dimensions | 62.1×31.6×16.5mm |
Operating Temperature | -10°C to 50°C |
Storage Temperature | -20°C to +55°C |
BOYA BY-XM6-S1 Ultra Compact 2.4GHz Dual-Channel Wireless Microphone 1+2
3.5mm TRS-TRS Audio Cable
3.5mm TRS-TRRS Audio Cable
Type-C Cable

SKU: BOYA 500365
UPC: 6971008029260
