AUTEL EVO II Drone Dual Rugged Bundle (640T) 30hz v2.0
- Capture 8K Video and 48MP Photos
- FLIR Boson Sensor for Thermal Imaging
- Up to 38-Minute Flight Time
- Up to 45 mph Flight Speed
- 12-Sensor Obstacle Avoidance
- Includes Remote with 3.3" OLED Display
- HD Transmission up to 5.5 Miles
- Record HDR Video at up to 4K Resolution
- Foldable Design for Easier Portability
- 4x In-Camera Lossless Zoom
- Level 8 Wind Resistance
The Autel Evo II comes with a FLIR BOSON sensor for thermal imaging, allowing you to use the camera's onboard computer to see in the dark. With its powerful 48 MP camera, you can capture stunning 8K video and 38-minute flight times. The 12-sensor obstacle avoidance ensures your drone is always aware of your surroundings, letting it fly at up to 45 mph with accuracy.
The FLIR BOSON sensor is a type of particle detector that uses a laser to measure the energy of light particles. It can measure many particles that the eyes can’t see. Now, imagine this power on your AUTEL EVO II Drone. The sky’s the limit when it comes to astounding lighting and captures with your drone camera.
Your AUTEL EVO II Drone uses sensors to track their surroundings and avoid any obstacles. Sensors can be programmed to determine if any objects are within a certain distance of the drone. Each sensor is powerful on its own, but a 12-sensor set on your AUTEL EVO II guarantees that it will remain safe throughout the entier time you use it.
Product Features in Detail
The FLIR Boson provides greater resolution than any camera in its class.
Resolutions up to 640x512 enable EVO II Dual pilots to capture subjects with great detail from up to 146 meters - 4x farther than any aircraft of its class. The 30Hz refresh rate produces smooth dynamic thermal movement by matching thermal images to video frame rate.
Maximum efficiency in all viewing conditions
EVO II Dual supports up to 10 thermal palettes to cope with a variety of complex shooting environment and mission scenarios.
8K Video, unmatched clarity
Autel Evo II Dual records in resolutions up to 7680x4320. With 4 times as many pixels compared to 4k (and 16 times compared to HD), 8k videos redefine image clarity and depth.
Picture-in-Picture Mode
The thermal image is integrated into the standard RGB image at the same time. This allows the user to obtain both visual and thermal data at the same time and allows for easier positioning and subject tracking.
48MP Camera
The Evo II Dual’s 48MP Sensor captures every forensic-relevant detail to assist in precise evidence capture. Both thermal and RGB images are provided with embedded Metadata making the EVOII Dual the ultimate Public Safety tool.
4X Lossless zoom
The high resolution provides the ability to zoom deep into a scene and crop an image or video to 4k without any loss in quality. Capture a scene, zoom in, and reframe your shots with ease.
4K HDR for greater dynamic range
4K HDR offers greater detail in highlights and shadows, providing higher-quality images from the most demanding environments.
360° Obstacle Avoidance
Equipped with 19 groups of sensors including 12 visual sensors, the main camera, ultrasound, IMUs and other sensors enable building of three-dimensional maps and path planning in real time.
Dynamic Track 2.0
EVO II can model location and speed of targets simultaneously, predict their trajectory accurately, and track them continuously while identifying up to 64 objects at the same time.
Real-time video distribution
LiveDeck enables pilots to share live, real-time aerial video across public or private networks, sharing data with Command Posts, stakeholders, or online presentations.
Open SDK
Create customized services, applications, access, and other features
Thermal Camera | |
Infrared camera sensor | Uncooled VOx Microbolometer |
Sensor resolution | EVO II Dual (640) 640*512 |
EVO II Dual (320) 320*256 | |
Pixel pitch | 12 µm |
Wavelength range | 7.5~13.5 µm |
FOV | EVO II Dual (640) 32° |
EVO II Dual (320) 34° | |
Thermal Sensitivity/NEdT | <50 mK |
Zoom | 1 ~ 8x |
Still Photography Modes | Single shot, burst and timelapse |
Still Photography Resolution | IR: 640*512 |
PIP: 1920*1080, 1280*720 | |
Video Format | MOV/MP4 (H.264/H.265 supported) |
Video Resolution | 640*512 30Hz (US) |
640*512 9Hz (other regions) | |
Camera | |
Image Sensor | 1/2" CMOS |
Pixels | 48MP |
Perspective | 79° |
Lens | EFL: 25.6 mm |
Aperture: f/2.8–f/11 | |
Focus Distance: 0.5m to any distance (with autofocus mode) | |
ISO Range | Video: 100-6400 (auto) |
Photo: 100-3200 (auto) | |
Zoom | 1-8x (Max 4x lossless) |
Still Photography Modes | Single Shot |
Burst: 3/5 shots | |
Auto Exposure Bracketing (AEB) | |
Time-lapse: 3/5 shots | |
Still Photography Resolution | 8000*6000 (4:3) |
7680*4320 (16:9) | |
4000*3000 (4:3) | |
3840*2160 (4:3) | |
Video Format | MP4 / MOV (MPEG-4 AVC/H.264, HEVC/H.265) |
Video Resolution | 8K 7680*4320 p25/p24 |
6K 5760*3240 p30/p25/p24 | |
4K 3840*2160 p60/p50/p48/p30/p25/p24 | |
2.7K 2720*1528 p120/p60/p50/p48/p30/p25/p24 | |
1080P 1920*1080 p120/p60/p50/p48/p30/p25/p24 | |
Max Bitrate | 120Mbps |
Aircraft | |
Takeoff Weight | 2.5 lbs (1150 g) |
Max Takeoff Weight | 4.4 lbs (2000 g) |
Diagonal Wheelbase | 15.6 inches (397 mm) |
Aircraft Battery | 7100 mAh |
Max Flight Time (standard) | EVO II Dual (640) 38min |
EVO II Dual (320) 40min | |
Max Hovering Time (standard) | EVO II Dual (640) 33min |
EVO II Dual (320) 35min | |
Max Level Flight Speed (Standard) | 45mph (20 m/s) (Ludicrous) |
Max Ascent Speed | 18mph (8 m/s) (Ludicrous) |
Max Descent Speed | 9 mph (4 m/s) (Ludicrous) |
Max Service Ceiling Altitude | 4.3 miles (7000 m) MSL |
Max Wind Resistance | Force 8 wind |
Operating Environment Temp | 14-104°F (-10-40°C) |
Working Frequency | 2.4~2.4835GHz |
Transmission Power | 2.4~2.4835GHz |
FCC/ISED:≤27dBm | |
SRRC/CE/MIC/RCM:≤20dBm | |
Hover Precision | Vertical: |
± 0.1m (with visual positioning in normal operation) | |
± 0.5m (with GPS in normal operation) | |
Horizontal: | |
± 0.3m (with visual positioning in normal operation) | |
± 1.5m (with GPS in normal operation) | |
Sensing System | |
Sensing System Type | Omnidirectional Binocular Sensing System |
Forward | Accurate Measuring Range: 0.5 - 20m |
Detection Range: 0.5 - 40m | |
Effective Sensing Speed: < 15 m/s | |
FOV: Horizontal: 60°, Vertical: 80° | |
Backward | Accurate Measuring Range: 0.5 - 16m |
Detection Range: 0.5 - 32m | |
Effective Sensing Speed: < 12 m/s | |
FOV: Horizontal: 60°, Vertical: 80° | |
Upward | Accurate Measuring Range: 0.5 - 12m |
Detection Range: 0.5 - 24m | |
Effective Sensing Speed: < 6 m/s | |
FOV: Horizontal: 65°, Vertical: 50° | |
Downward | Accurate Measuring Range: 0.5 - 11m |
Detection Range: 0.5 - 22m | |
Effective Sensing Speed: < 6 m/s | |
FOV: Horizontal: 100°, Vertical: 80° | |
Sides | Accurate Measuring Range: 0.5 - 12m |
Detection Range: 0.5 - 24m | |
Effective Sensing Speed: < 10 m/s | |
FOV: Horizontal: 65°, Vertical: 50° | |
Service Environment | Textured/patterned ground and adequate illumination (> 15 lux, normal indoor environment with fluorescent lamp on) |
Upward: diffuse reflecting surface with reflectivity above 20% (wall, tree, human, etc.) | |
Downward: textured/patterned ground and adequate illumination (> 15 lux, normal indoor environment with fluorescent lamp on) | |
Upward: diffuse reflecting surface with reflectivity above 20% (wall, tree, human, etc.) | |
Gimbal | |
Operation Range | Pitch: -135° to +45 |
Yaw: -100° to +100° | |
Operation Range | Pitch: -90° to +30° |
Yaw: -90° to +90° | |
Stability | More Stable with 3 Axies |
Max Control Speed (Tilt) | 300°/s |
Angular Vibration Range (°) | ±0.005° |
Remote Controller and Transmission | |
Max Signal Transmission Distance | 5.5 miles (9km) FCC, 3.1 miles (5km) CE |
Working Frequency | 2.4~2.4835GHz |
Transmission Power | 2.4~2.4835GHz |
FCC/ISED:≤27dBm | |
SRRC/CE/MIC/RCM:≤20dBm | |
Real-Time Transmission Quality | 720p@30fps / 1080p@30fps |
Max Bitrate of Real-time Transmission | 40Mbps |
Remote Controller Battery | 5000mAh |
Operating Hours | 3h |
Charging Time | 2h Fast Charging |
Display | 3.26-inch OLED screen |
854 (W)*480 (H) pixels | |
Preview video without the need for connecting to a mobile phone | |
1.7A@3.7V | |
Battery | |
Battery (mAh) | 7100mAh |
Voltage (V) | 11.55 |
Transmission Power (2.4G) | 13.2 |
Battery Type | LiPo 3S |
Battery Energy | 82Wh |
Weight (g) | 365 |
Charging Temperature Range (°C) | 5~45℃ |
Storage Temperature & Humidity | -10~30℃,65±20%RH |
Recommended Storage Temperature | 22~28℃ |
Max Charging Power Consumption (W) | 93W |
Charging Time | 90min |
Charger | |
Input | 100-240 V, 50/60 Hz, 1.5A |
Output | 13.2 V ⎓ 5 A |
5V⎓3A 9V⎓2A 12V⎓1.5A | |
Voltage | 13.2 ± 0.1 V |
Rated Power | 66 W |
APP | |
iOS | Autel Explorer |
Android | Autel Explorer |
Storage | |
SD Storage | Standard: 32 GB, |
max. support 256GB ( UHS-3 rating required ) | |
Internal Storage | 8GB |
This product comes with 12 Months Warranty with Autel Australia. Our products are sourced from authorised Australian suppliers and therefore come with genuine Australian warranty. Camera Warehouse does not participate in 'Grey Market' or 'Parallel Import' activities.

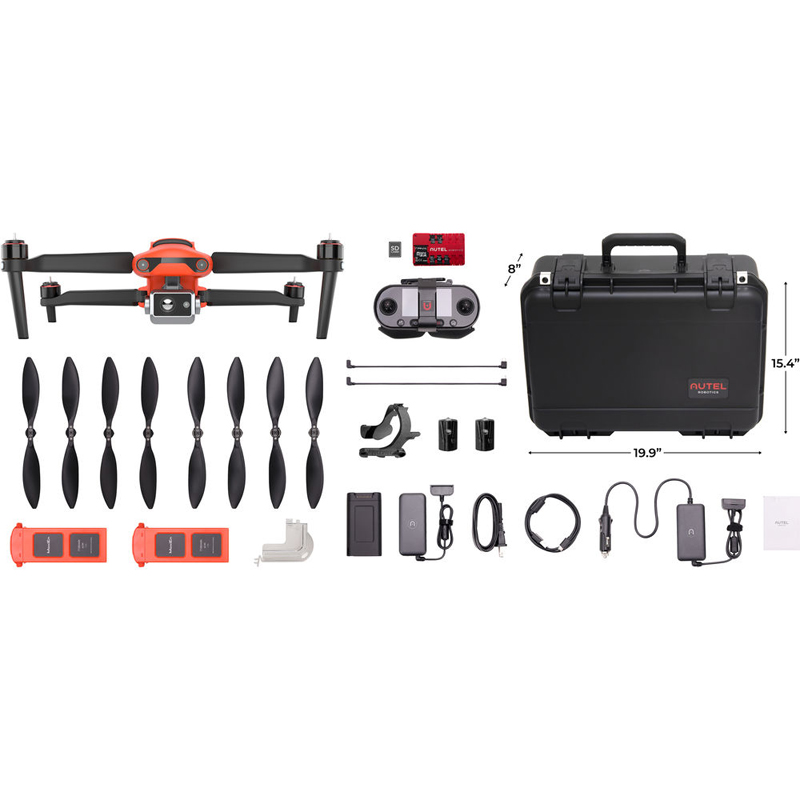

AUTEL EVO II Drone Dual Rugged Bundle (640T) 30hz v2.0
Remote Controller
RC Charging Cable
2 Flight Batteries
Battery Charger
Power Cable
Micro-USB to USB Type-C Remote Cable
Micro-USB to Micro-USB Remote Cable
Battery Charger
4 Pairs of Propellers
Carrying Case
Micro-SD Card Holder
SKU: AUTEL ATLEVO2DU640T
UPC: 6924991102083
