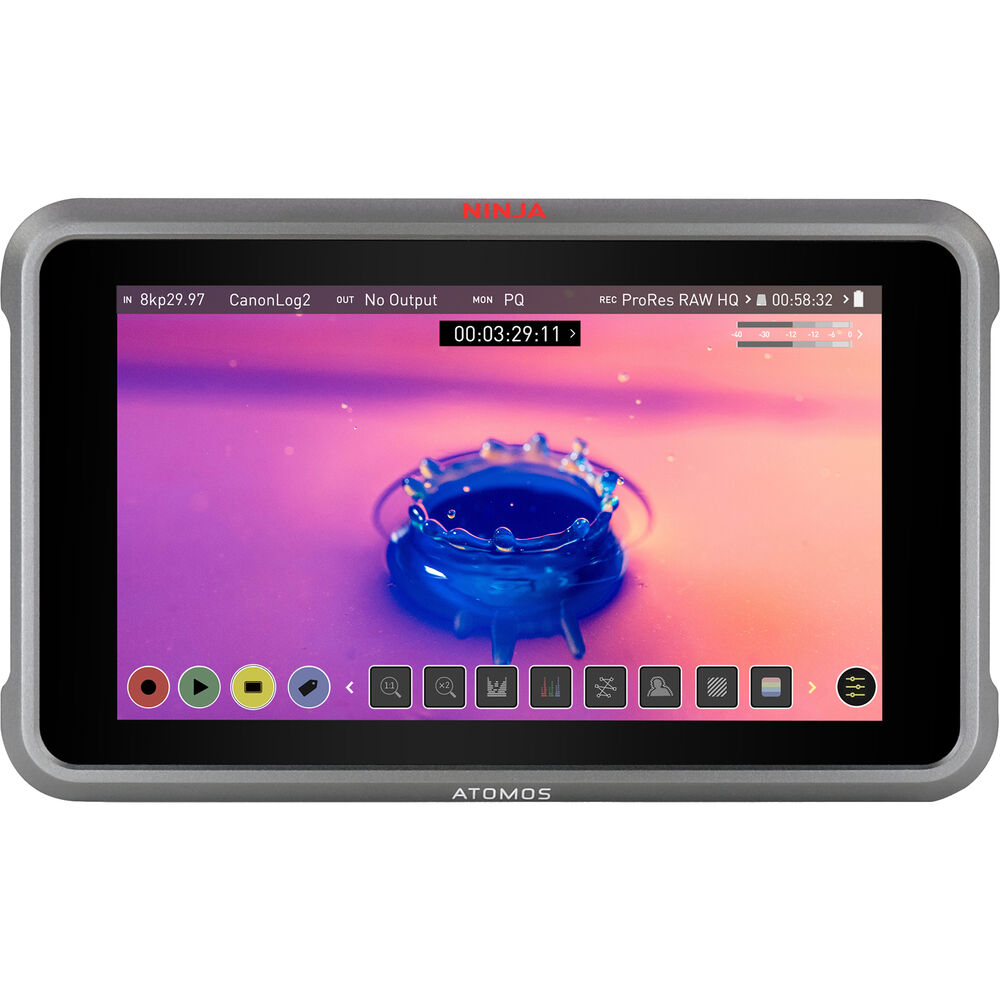

Atomos Ninja V+ Deluxe Starter Kit - 5" 8K HDMI H.265 Raw Recording Monitor
- 1920 x 1080 Touchscreen Display
- HDMI 2.0 Input/Output
- Record up to 8K30 ProRes Raw
- 10-Bit Exterior Viewable Monitor
- 1000 cd/m² Brightness
- AtomHDR Mode with 10-Stop Dynamic Range
- Records to 2.5" Mini or Standard SSDs
- Single Sony L-Series Battery Slot
- Includes Atomos 5" Accessory Kit
TheAtomos Ninja V+ Deluxe Starter Kit - 5" 8K HDMI H.265 Raw Recording Monitor is a powerful tool that is designed to deliver the highest-quality signal at 8K30 or in full 8K when using 10-bit signal.
This monitor is perfect for the professional or enthusiast who needs to record and view footage in the highest available resolution and color space when using a high-end graphics card.
This professional, high-resolution, high-brightness, HDMI 2.0-compatible monitor is capable of displaying 8K (7680x4320) at 60fps and 5K at 30fps with a maximum brightness of 1000cd/m2. This monitor also has a 1920x1200 resolution that can output to a 4K display simply by reducing the frame rate.
The Ninja V+ is an 8K HDMI monitor capable of up to 10-Bit Exterior Viewable Monitor (EVMs) color depth, which means that the colors on this monitor are significantly more vivid than on other monitors. This monitor is capable of writing to H.265 raw video files, ideal for editing and color grading footage captured in raw format.
The AtomHDR Mode records to 2.5" Mini or Standard SSDs, so you won't need any external media for recording. The AtomHDR Mode can simultaneously record to both drives and provides a seamless workflow between the two, allowing for a new user experience in post-production.
This Deluxe Starter Kit comes loaded with the Atomos 5" Accessory Kit which includes the Ninja V+ 5.2" 8K HDMI Recording Monitor, Accessory Kit with Batteries & Charger, Screen Protector, Sun Hood, Travel Case, Master Caddy II, and SATA III Cable.
Product Features in Detail
1920 x 1080 Touchscreen Display
The Atomos Ninja V+ 5" 8K HDMI H.265 Raw Recording Monitor has a 1920 x 1080 touchscreen display, a 5" 8K HDMI monitor, and it is capable of capturing 4K RAW footage at 60 FPS. It can also record H.265 4K at 120 FPS and H.264 4K at 240 FPS.
Record up to 8K30 ProRes Raw
You get the most immersive 4K footage from a camera with a sensor that records 8K30 ProRes, and that’s one of the best things you get from the Atomos Ninja V+ 5" 8K HDMI H.265 Raw Recording Monitor
10-Bit Exterior Viewable Monitor.
The Atomos Ninja V+ 5" 8K HDMI H.265 Raw Recording Monitor’s 10-bit exterior viewable monitor offers far greater color depth. In a 10-bit monitor, the red, green and blue color components can have values in excess of one million, which is more than enough to provide all the colors that can be perceived by the human eye. 8-bit monitors typically have a range of 256 shades of each component.
AtomHDR Mode with 10-Stop Dynamic Range
When HDR images are rendered, the highlights in the image are preserved while the shadows are not. This means that when an HDR image is rendered, it appears to be a normal tone image but when editing, the highlights are preserved unlike the shadows. Having a 10-stop dynamic range of values gives you 10 light shades that give you better clarity for your images.
Records to 2.5" Mini or Standard SSDs
The Atomos Ninja V+ 5" 8K HDMI H.265 Raw Recording Monitor can record to any 2.5” storage or your standard SSD for rapid-paced shooting and editing on the fly.
Physical Specifications | |
Dimensions (W x H x D mm) | 151 x 91.5 x 31mm (Ninja only) |
Weight | 360g / 12.7oz |
Mount points | 1 x Anti rotation 1/4" / 3/8 top and bottom |
Environmental | |
Ambient operating temperature | Up to 40°C |
Construction and Control | |
Body | Aluminium with ABS plastic |
Cooling | Heat Sink and actively controlled fan with user selectable modes in menu |
Tally light | Rear and front |
Multi-function button | Power / lock screen |
AtomXpansion slot | Yes |
Power | |
Input voltage | 6.2V to 16.8V |
Operating power | 5.8-7.2V |
Compatible batteries | NPF L series |
Built in battery | No |
Battery Run time (Record) | 5200mAh - up to 2hrs (monitor & record 4K 60p)<br/>7800mAh - up to 3hrs (monitor & record 4K 60p) |
Continuous power | Via Optional AtomX SYNC Module |
DC in connector | Via DC Jack on Battery Eliminator |
Dtap | Battery Eliminator and D-Tap to DC cable (included) |
Display | |
Touchscreen | SuperAtom IPS panel (capacitive touch) |
Size | 5.2" |
Resolution | 1920 x 1080px |
PPI | 427 |
Bit depth | 10-bit (8+2 FRC) |
Backlight Type | Edge lit |
Brightness (cdm2 / nits) | 1000 |
Aspect ratio | 16:09 |
Color Gamut | Rec.709 |
Calibration support | Atomos Calibrator with Calibrite ColorChecker Display Pro or ColorChecker Display Plus |
Color Pipeline | |
Gamma | Sony SLog / SLog2 / SLog3, Canon CLog / CLog2 / Clog3, Arri Log CEI160 / LogCEI200 / LogCEI250 / LogCEI320 / LogCEI400 / LogCEI500 / LogCEI640 / LogCEI800 / LogCEI1000 / LogCEI1280 / LogCEI1600, Panasonic Vlog, JVC JLog1, Red LogFilm / Log3G10 / Log3G12, FujiFilm Flog, PQ (HDR10), HLG, Nikon N-Log, Olympus OM Log, Lecia L Log |
Gamut | BT2020, DCI P3, DCI P3 D65, Sony SGamut / SGamut3 / SGamut3.cine / Canon Cinema / DCI P3 / DCI P3+ / BT2020, Panasonic V Gamut, Arri Alexa Wide Gamut, Rec709, JVC LS300, Red DragonColor / DragonColor2 / RedColor2 /RedColor3 / RedColor4 / RedWideGamut |
3D LUT Display | .Cube Format |
3D LUT Down Stream | Loop out |
3DLUT 50/50 | Yes |
Monitoring Modes | Native / HLG / PQ / 3D LUT |
HDR output Conversion | Log / HDR to HLG / PQ / Dolby Vision |
Video Input | |
HDMI | 1 x HDMI (2.0) 4Kp60 |
HDMI RAW | ProRes RAW up to 8Kp30 |
SDI | 2 x 12G SDI Backwards compatible (Auto detection) via included AtomX SDI module |
SDI RAW | Yes ProRes RAW up to 6K (NOTE: Sony FS700, FS5, FS7 supported from 10.71) |
Bit Depth | 8/10-bit Video / RAW up to 16-bit |
Video Chroma Subsampling | 4:02:02 |
HDCP copy protection | Not supported |
Metadata | |
HDMI | RAW - white balance, Exposure index, Shutter speed/angle, Iris F stop, ISO, Gamma, gamut |
SDI | File name via SDI for Arri and RED |
Video Output | |
HDMI | 1 x HDMI (2.0) 4Kp60 |
SDI loop out | 1 x 12G SDI via included AtomX SDI module - level A and B selectable |
SDI Play out | 2 x 12G SDI via included AtomX SDI module - level A and B selectable |
Video Chroma Subsampling | 4:02:02 |
Bit Depth | 10-bit video |
Web Streaming | |
USB UVC | Optional via Connect 4K |
Video Signal Conversion | |
HDMI to SDI | Yes - Video and RAW |
SDI to HDMI | Yes - Video and RAW |
Audio In/Out | |
Audio Quality | 24/48KHz |
Audio Codec | PCM |
HDMI | 8ch 24-bit, input dependent |
SDI | 12ch 24-bit, input dependent |
Analogue Audio in | 3.5mm 2ch. |
Analogue Audio Out | 3.5mm 2ch. |
Headphone out | 3.5mm 2ch. |
Timecode / Sync | |
Embedded | HDMI and SDI |
Time of day | Yes, Time and Date |
LTC | via 3.5mm audio Jack input (Requires post processing) |
Wireless SYNC | Via Optional AtomX SYNC Module |
Resolution and Frame Rates (Record, Monitor & Playback) | |
8k | RAW Only up to 30p via HDMI |
6k | RAW Only up to 30p via HDMI and SDI (Camera dependent 5.9k HDMI and 5.7k SDI) |
5k | RAW Only up to 30p via HDMI |
4k DCI | 23.98/24/25/29.9/30/50/59.94/60p - HFR 100/120 via RAW over HDMI & SDI on selected cameras |
4k UHD | 23.98/24/25/29.97/30/50/59.94/60p - HFR 100p/120p via RAW over SDI on selected cameras |
2K DCI 2046 x 1080 | 23.98/24/25/29.97/30/50/59.94/60p - HFR 100p/120p/200p/240p via RAW over SDI. HFR 100p/120p over HDMI on selected cameras |
Anamorphic | 3.5K: RAW up to 60p (from supported cameras only) |
FHD 1920 x 1080 Progressive | 23.98/24/25/29.97/30/50/59.94/60/100/120p |
FHD 1920 x 1080 PsF | Converted to P and looped out PsF |
FHD 1920 x 1080 Interlaced | 50/59.94/60i |
1280 x 720p | 50/59.94/60p |
Recording CODEC | |
Apple ProRes RAW | ProRes RAW, ProRes RAW HQ |
Apple ProRes | LT, 422, 422HQ |
Avid DNxHD | DNxHD 220x, 220, 145, 36 (Activation required visit my.Atomos.com) |
Avid DNxHR | LB, SQ, HQ, HQX. (Activation required visit my.Atomos.com) |
H.265 | LQ, MQ, HQ in 8/10-bit, 4 2 2 and 4 2 0 |
Playback | |
Playlist | Yes, create custom playlists from full or sub clips |
Loop | Yes, with user customizable in / out markers |
Apple ProRes Raw | Yes, recorded clips |
Apple ProRes | Yes, with Linear PCM audio |
Avid DNx | Yes, with Linear PCM audio |
H.265 | Yes, recorded clips (Activation required visit my.Atomos.com) |
Recording functions | |
Pre-roll record | Yes (HD 8s, 4K 2s) - Not available in RAW |
Timelapse | Yes |
Multi Input / Switching | |
SDI A/B toggle | Via menu option to toggle between inputs on optional AtomX SDI module |
Supported media | |
Master Caddy I | Not compatible |
SSDmini | Native Size and Fit |
CFast II | Via Supported cards via optional SSDmini CFAST II Adapter |
File Naming | Scene, Shot, Take / File name via SDI for Arri and RED |
File System | ExFAT |
On screen tools | |
MultiScope Analysis View | Yes, 3 size / Position |
Histogram | Yes, 3 size / Position |
RGB parade | Yes, 3 size / Position |
Vector scope | Yes, 2 size / Position |
1 x Zoom | Yes. 1:1 Pixel mapping for 4K |
2 x Zoom | Yes |
Focus peaking | Colour selected / threshold setting / colour / Mono / edges only |
False colour | Yes, with Scale |
Zebra | Yes, Adjustable |
Isolate color channel | Blue Only |
Cine Frame Guides | 2.4:1, 2.35:1, 1.9:1, 1.85:1, 4:3 |
Social Frame guides | 9:16, 1:1, 191:1, 4:5 |
Safe areas | Action and Graphic |
Grid markers | 9 grid |
Anamorphic desqueeze | 1.25x 1.33x , 1.5x ,1.8x ,2x |
Display Flip | Vertical Only |
Onboard Signal Processing | |
Pulldown Removal | 24/25/30pSF > 24/25/30p (2:2 pulldown)60i > 24p (3:2 pulldown) |
4K UHD Downscale for HD | Loop out - 4K UHD to FHD |
DCI Crop | Loop out - 17:9 to 16:9 Crop |
Remote control | |
HDMI | Auto HDMI Trigger, Supported Protocols - Canon, Sony, Atomos Open Standard |
SDI | SDI trigger camera selectable |
Serial 2.5mm Jack | LANC control and calibration via optional USB to serial cable |
Bluetooth LE | Via AtomRemote app (requires AtomX SYNC module) |
Wireless RF | via optional AtomX SYNC module |
External Device Control | |
Serial 2.5mm Jack | Camera control for supported cameras via optional USB to Serial Cable |
Bluetooth LE | Via optional AtomX SYNC module to compatible devices |
Wireless RF | Via optional AtomX SYNC module to compatible devices |
Supported Applications | |
XML | Cut tag EDL in FCP XML |
Apple ProRes RAW | Apple FCP, Adobe Premiere, After Effects, Avid Media Composer, GrassValley Edius, Assimilate Scratch, Baselight Film Light. |
Video Codecs | All applications with support for ProRes and Avid DNX in .MOV wrapper |
This product comes with 1 year Genuine Warranty with Atomos Australia. Our products are sourced from authorised Australian suppliers and therefore come with genuine Australian warranty. Camera Warehouse does not participate in 'Grey Market' or 'Parallel Import' activities.
Atomos Ninja V+ Deluxe Starter Kit - 5" 8K HDMI H.265 Raw Recording Monitor
Master Caddy II
Battery Eliminator/Dummy Battery
Power Adapter
Neoprene Sleeve
Hard Case
Atomos 5" Accessory Kit
2 x NP-F750 L-Series 5200mAh Batteries
Fast Charger
Power Supply
Screen Protector
Sun Hood
Plastic Travel Case
