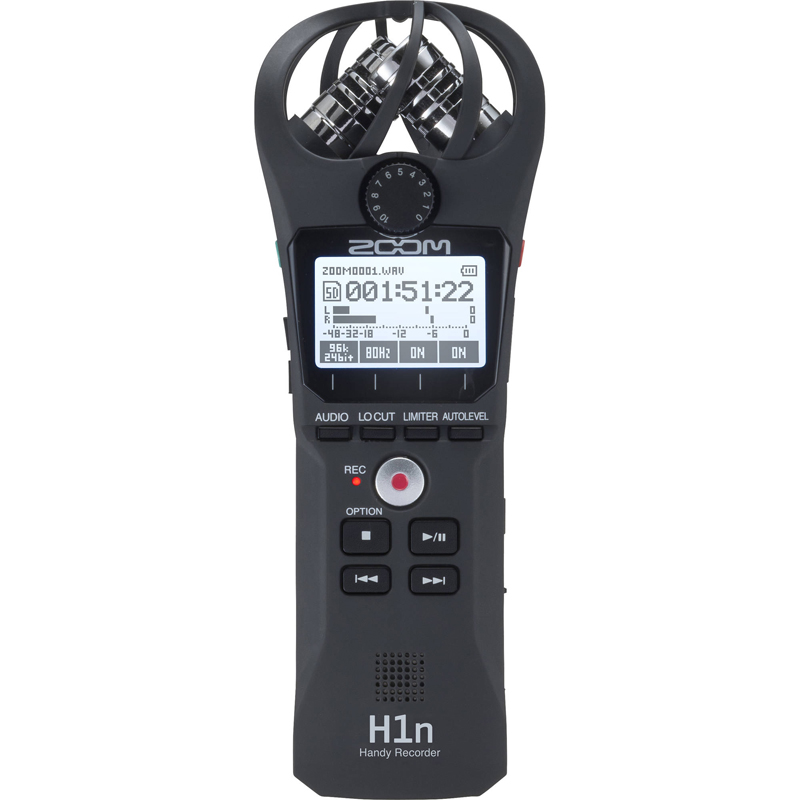

Zoom H1N Handy Recorder

With the ability to render up to 10 hours of operation with a single AA alkaline battery, the Zoom H1 Handy Recorder with Accessory Pack supports up to 24-bit/96 kHz audio in WAV or MP3 formats. This device records directly to microSD and microSDHC cards of up to 32 GB and it mounts directly to a tripod or DSLR with an optional adapter. Audio is recorded through the built-in 90˚ X/Y stereo mic and it can be reviewed using the built-in reference speaker for fast monitoring. For better sound quality, this product has an auto level for input control and low-cut filter for elimination of wind noise and rumble. With stereo mic/line input and output jacks and a USB port for data transfer to computer, this item is tagged with product code FXR001N.

Product Features in Detail


X/Y Recording made simple
The X/Y technique provides a great way to cover a wide area while still capturing sound sources in the center with clarity and definition, making it perfect for all types of live stereo recording. The H1's built-in X/Y microphone provides two matched unidirectional microphones set at a 90 degree angle relative to one another, optimum for most stereo recording applications. Alternatively, you can connect a pair of external microphones or line level signal to the H1's Mic/Line Input mini phone jack for X/Y or other types of stereo recording.


The Ins and Outs
The H1 Mic/Line Input is a stereo ⅛" mini phone jack that can accept two mic- and/or line-level signals. Condenser microphones requiring Plug-In Power (2.5 volts) can be connected to this jack. The H1 Line/Headphones Output is a stereo ⅛" phone jack with a dedicated volume control. Headphones can be connected here for private monitoring. There's also a built-in speaker on the back panel for fast monophonic monitoring of the recorded signal without the need to make any connections. The H1's USB port provides a digital output of the stereo mix and allows data to be sent to and from your computer. From there, it can be imported into editing software such as the supplied WaveLab LE.  It also allows the H1 to be used as a 2-in/2-out audio interface and USB microphone, as well as a microSD card reader.


Auto Level and Low Cut Filter
The H1's Auto Level function sets input gain automatically to prevent overload and distortion. Alternatively, input level can be set manually. The H1 also provides a built-in low cut filter for the elimination of pops, wind noise, blowing, and other kinds of low frequency rumble.

File types supported
The H1 records audio in two different basic file types: WAV and MP3. The main difference between the two is that WAV files are uncompressed; that is, they contain all the recorded signal without any data being removed. The WAV files recorded by the H1 can be either 16- or 24-bit, with sampling rates of 44.1, 48, or 96 kHz, and are automatically time-stamped, making them Broadcast Wave Format (BWF) compliant—especially important when recording audio for video since it allows for precise synchronization in post-production. MP3 recordings are compressed, which means that some unnecessary data is removed prior to storage, making them much smaller than WAV files, and thus much easier to upload and download. Some MP3 files exhibit a slight loss of audio fidelity as compared with the original signal; however, this is not noticeable in all circumstances.


State of the art editing with every recorder
The Zoom H1 comes with free download licenses for Steinberg’s Cubase LE music production software and WaveLab LE audio editing software, providing not just the ability to capture superior audio in every box, but to do spectacular things with it. Take your recordings to a more professional level. Steinberg’s powerful and state-of-the-art audio software used by creators around the world now comes with every Zoom Handy Recorder purchase.
