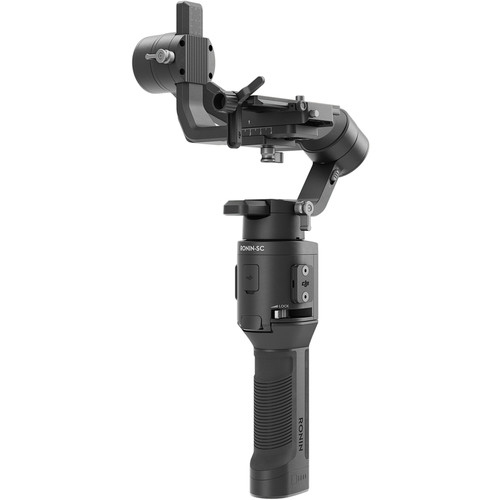

DJI Ronin-SC Gimbal Stabilizer Pro Combo Kit
- Panorama
- Force Mobile
- Motion-Lapse and Time-Lapse
- Active Track 3.0
- Auto Calibration
- Offset Roll Motor
- Modular Design
- Versatility
- Multitasker full support for add-ons
- Specialized gimbal drive motors equipped with encoders
- Bluetooth 5.0
- Hardware joystick and support
The DJI Ronin-SC Gimbal Stabilizer Pro Combo is the ultimate video gimbal package that vloggers and filmmaker enthusiasts can't wait to get their hands on. It has a three-axis Ronin-SC gimbal stabilizer and BG18 battery grip and extended grip mini tripod. It also includes a quick release camera plate, focus motor with rod mount, a camera raiser, and a smartphone holder. If that's not enough, users will also enjoy a focus motor that includes wheel and rod mount, control and charging cables, plus its own storage case.
The gimbal features pan, roll and tilt motion stabilization plus Bluetooth smartphone control. It can also support small, mirrorless cameras weighing up to 4.4lbs. The combo kit is also equipped with three 1/4"-20 screws and 4 MF screws, a multicam USB cable, and a multicam USB Type-C control cable. There's also the USB Type-C charging cable, and a multicam USB Type-C to micro-USB control adapter. It also includes two port covers, six screws, a focus gear strip, two Allen wrenches, and an RSS splitter.
Product Features in Detail
Compact and Lightweight
Increasing possibilities for video creatives and content creators whenever, wherever, the Ronin-SC is built for users always on the go. Its magnesium and aluminum construction, together with its high-strength composite materials provide superior performance. Weighing just 1.1kig, it has a modular and quick set up design. The Ronin-SC can pack easily in limited spaces and be carried comfortably.
Panorama
Captures 360° rolling and panning panoramic shots with its gimbal movements in exact precision.
Force Mobile
You can use your smartphone's gyroscope to motion-control the gimbal movement of your Ronin-SC having ultra-low latency. This offers an intuitive and precise control experience.
Motion-Lapse and Time-Lapse
Create amazing time-lapse movies using your DJI Ronin app and smartphone. Together, you can use this to control your camera to take picture-perfect photos at various intervals, combined and sequenced in post. You also have the option to pre-set a path for the gimbal to follow when using the time-lapse photography in the app.
Tracking
Using Active Track 3.0 technology, you have the capability to program a repeatable gimbal movement. This allows you to follow your subject without the need for operator input.
Offsets Roll Motor
Offsetting the roll motor holds the camera above the roll axis. This leaves the camera's LCD screen unblocked. The design also reduces the camera shake that usually happens when transitioning from upright to underslung positions and vice versa.
Versatile
The Ronin-SC is capable of mounting onto an RC buggy needed for low-angle shots. It can even act as a stabilized remote head if you mount it to a jib.
Multitasker
The 1/4"-20 and 3/8"-16 accessory mounts can be found on the Ronin-SC. This gives full support for your add-ons like LED light, microphone, or your wireless video transmitter.
PERIPHERAL | |
Accessory Connections | 1/4” Mounting Hole, 3/8” Mounting Hole, Camera Control Port, Accessory Port, USB-C Port, RSA Port |
Intelligent Battery | Model: RB2-2450mAh-7.2V |
Type: 18650 LiPo | |
Capacity: 2450 mAh | |
Power: 17.64 Wh | |
Max. Battery Life: 11 h | |
Charging Time: 2.5 h (5 V/2 A) | |
Charging Temperature: 5° to 40°C (41° to 104°F) | |
Connections | Bluetooth 5.0; USB-C |
Mobile Assistant Software Requirements | iOS 9 or above; Android 5.0 or above |
WORKING PERFORMANCE | |
Tested Payload | ≤ 2.0 kg |
Angular Vibration Range | ±0.02° |
Maximum Controlled Rotation Speed | Pan axis control: 180°/s |
Tilt axis control: 180°/s | |
Roll axis control: 180°/s | |
Mechanical Endpoint Range | Pan axis control: 360° continuous rotation |
Tilt axis control: -95° to +220° | |
Roll axis control: -202.5° to +112.5° | |
Controlled Rotation Range | Pan axis control: 360° continuous rotation |
Tilt axis control: -90° to 145° | |
Roll axis control: ±30° | |
MECHANICAL & ELECTRICAL CHARACTERISTICS | |
Working Current | Static current: 0.2 A |
Working Frequency | 2.400 GHz to 2.4835 GHz |
Transmission Power | ≤ 8 dBm |
Operating Temperature | -20° to 45°C (-4° to 113°F) |
Weight | Gimbal: Approx. 830 g |
BG18 Grip: Approx. 258 g | |
Tripod: Approx. 160 g | |
Gimbal Dimensions | Folded: 220×200×75 mm |
Unfolded: 370×165×150 mm |
Gimbal, BG18 Grip, Extended Grip/Tripod, QR Plate, Camera Riser, Carrying Case, Phone Holder, Lens Support, 8-pin Port Cover x 2, Wrench x2, Camera Screw 1.4" x3, Screw M4 x4, Multi-Camera Control Cable (Multi-USB), Multi-Camera Control Cable (Type-C), USB-C Cable, Multi-Camera Control Adapter (Type-C to Micro USB), Focus Motor, Focus Motor Rod Mount, Focus Wheel, Focus Gear Strip, Screw x6, RSS Splitter
