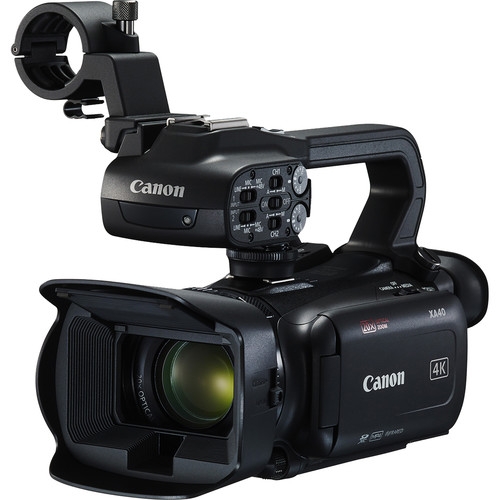

Canon XA40 Professional UHD 4K Camcorder
A$2,398.00
Out of stock
Free Shipping for Orders over $98* (*excludes bulky items)
No SURCHARGE FOR CREDIT CARDS
- Broadcast Quality Run'n Gun Video Camera
- 20x Optical Zoom Lens
- 8.29MP, 1 2/3" CMOS Sensor
- Up to UHD 4K30 Video Recording
- Mini-HDMI Output Integrated
- Dual XLR and Mic/Line Audio Input
- Dual SD Relay and Simultaneous Recording
- DIG!C DV 6 Processor
- 3" Touchscreen LCD, Tiltable Viewfinder
- 5 Years Warranty from Canon Australia
A Documentary filmmaker and Journalists best friend, the Canon XA40 Boasts a A light and compact design (Under 750g!) whilst still supporting an integrate 20x optical zoom and the impulsively intuitive DIG!C DV 6 Image processor with high sensitivity and low noise. The inclusion of the duel XLR input and audio interface means the need for a dedicated sound recordist may not be needed on small footprint shoots as you are able to manually control and monitor professional grade microphones internally! Some of the other pro-style features include Hybrid, Normal, Face Only, Manual Focus, Instant, and Canon's Medium autofocus; fast- and slow-motion recording, full manual control, optical and electronic image stabilization, a 3" touchscreen LCD, user-assignable buttons & infrared mode!
Product Features in Detail
Excellent Image Quality
The Professional XA40 features a 1/2.3" CMOS sensor and supports 4K UHD 25P recording with a wide 29.3mm angle of view as well as 20x optical zoom. Additionally, with the powerful image stabilisation function achieved via its Dynamic Mode and 8- Bladed Circular Aperture, you'll be able to achieve superb image quality every time.
Impressive variety in quality and motion
Realise even greater emotion in visual expression with slow (max 0.5x) and fast (max 1200x) motion recording for both 4K and FHD, achieving a high-quality MP4 50P (35mbps) recording.
Image Stablisation
Five-axis Image Stabilization enables an electronic correction of roll and tilt which reduces image distortion substantially; allowing you to achieve a steady shot, even while walking.
Aesthetically pleasing bokeh
The XA40 features an 8-Blade circular Aperture, designed using the EF lens series technology. This technology enables you to achieve natural, smoother and circular out-of-focus areas.
3D Real-time Lens structure
The Lens structure of the XA40 enables real-time responsiveness in a three-dimensional space, supporting the optical image stabilization Canon lenses are known for, as well as the quiet operation and fast zoom needed in a video lens.
| Image Sensor | |
| Sensor | 1/2.3-type CMOS |
| Filter | RGB Primary Colour Filter |
| Total Pixels | Approx. 21.14MP |
| Effective Pixels | Approx. 8.29 MP (3840 x 2160) |
| Subject illumination range | Approx. 0.3 lx to 100,000 lx |
| Minimum illumination (PAL) | P Mode: Approx. 4.2 lx (shutter speed 1/25 sec with auto slow shutter On) |
| Low Light Mode: Approx. 0.3 lx (shutter speed 1/2 sec.) | |
| Lens | |
| Zoom ratio | 20x optical |
| Focal length (35mm equivalent) | Approx. 29.3 - 601mm Standard IS/IS Off |
| Minimum focusing distance | 10 mm at wide end, 60 cm across entire zooming range |
| Aperture | f/1.8 - 2.8 (AV Priority and Manual Modes) |
| Aperture blades | 8 blades |
| Filter diameter | 58mm |
| Image stabilization system | Optical system (lens shift) + electronic stabilization |
| Dynamic, Standard, Powered, Off | |
| ND filter | Built-in gradation filter (Auto or Off) |
| Zoom control | Zoom rockers on body and handle; |
| Selectable manual zoom/focus ring on lens; | |
| Selectable High Speed and Soft Zoom modes available. | |
| Zoom Speed | Variable (body rocker only) or Constant speed (body and handle rocker; Fast/Normal/Slow, 16 speed level settings in each) |
| Focus control | MANUAL: Lens ring and touchscreen point selection (Magnify and Peaking assist functions), Focus Preset. |
| AUTOFOCUS: Touchscreen AF point selection, Face Detection and Tracking, Touch and Track, Face Only AF. | |
| (Instant AF, Medium AF, Normal AF) | |
| Focus System | Hybrid AF, Normal AF |
| Iris control | Touchscreen, Auto |
| Digital zoom/Teleconverter | 400x Digital Zoom, 2x Digital Teleconverter |
| Image Processor | |
| Type | DIGIC DV 6 |
| Colour Sampling | YCC 4:2:0 |
| Bit depth | 8-bit |
| Recording | |
| Video storage media | SD/SDHC/SDXC card (2 card slots) |
| Type | Class U3 cards recommended |
| Recording time (64GB Card, approx.) | 150Mbps: 55 mins / 35Mbps: 240 mins / 17Mbps: 495 mins |
| Recording file system | FAT32/exFAT |
| Internal recording format (PAL) | MP4: 3840 x 2160 (150Mbps) / 1920 x 1080 (35/17 Mbps) |
| External recording output (PAL) | HDMI output (Camera mode): |
| UHD recording mode: 1920 x 1080 25.00P YCC4:2:2 8-bit | |
| Full HD recording mode: 1920 x 1080 50.00P/25.00P; 1280 x720 50.00P YCC4:2:2 10-bit | |
| External monitoring | HDMI (50.00i) |
| Recording frame rate (PAL) | 25.00P (UHD), 50.00P/25.00P (Full HD) |
| Slow/Fast motion (PAL) | 3840 x 2160 / 25.00P: x2, x4, x10, x20, x60, x120, x600, x1200 |
| 1920 x 1080 / 50.00P: x2, x4, x10, x20, x60, x120, x600, x1200 | |
| 1920 x 1080 / 25.00P: x0.5 | |
| Pre Recording function | Yes. 3 seconds |
| Still photos | JPEG up to 3840x2160 |
| (Still image resolution is dependent on the video resolution) | |
| Photo storage media | SD Card |
| Audio | |
| Recording | MPEG-2 AAC-LC (16-bit 2ch) / LPCM (16-bit 4ch) |
| Audio control | Manual/Auto |
| Independent 2ch Line/Mic/Mic+48V input; | |
| Independent level control per channel (-∞ to +18 dB); | |
| Independent audio limiters (2 ch); | |
| Input mic trimming | |
| Reference Tone | 1KHz, -12dB / -18dB / -20dB / Off |
| Microphone attenuation | Auto/On/Off (20dB) |
| Microphone level meter | Yes |
| Monitoring Panel | |
| Type | Capacitive LCD touch panel |
| Size | 3.0-inch (7.5 cm, approx. 460,000 dots) |
| Wave Form Monitor | No |
| Focus Assist | Peaking / Magnify |
| Peaking | Selectable Peaking Colour: Red / Blue / Yellow |
| Zebra | 70% or 100% reference level |
| Markers | Grid (white/grey) and Level (white/grey) |
| Viewfinder | |
| Size | 0.24-inch, approx. 1.56 million dots |
| Correction angle | +2.0 to -5 dioptre |
| Inputs/Outputs | |
| Audio Input | XLR 3-pin jack (x2) with 48V phantom power, Line and Mic options on detachable handle, 3.5mm microphone input jack (Supply Voltage 2.4V DC), Built-in Mic |
| Headphone output | 3.5mm stereo mini jack |
| HDMI Output | HDMITM mini connector |
| USB | Mini-B, Hi-Speed USB, PTP class supported |
| SDI output | No |
| Time code | Superimposed on HDMI output signal (Camera Mode only) |
| Genlock | No |
| LAN | No |
| AV terminal | No |
| DC input | 3.4mm jack |
| Remote Control Terminal | 2.5mm mini jack |
| Exposure | |
| Exposure metering | Centre-weighted average or segment evaluative (determined by shooting mode) |
| No metering: Fireworks mode, Fixed exposure (1/50 sec.) | |
| Exposure Compensation | Highlight AE, Exposure lock, Auto backlight compensation, Exposure compensation amount shown as ±3 when locked (±12 increments) or ±2 in AUTO (±8 increments). |
| Exposure Lock | Yes. |
| Auto Gain Control setting | Auto / Manual |
| Auto Gain Control limit | 0 - 24dB (1dB increments) |
| Shutter Speed | |
| Control Modes | Auto, P, Tv, Manual |
| Shutter speed | 1/6 - 1/2000 sec |
| (1/2 - 1/500 sec in Low Light mode) | |
| Slow Shutter (SLS) | 50.00P: |
| Auto slow shutter On: 1/25 to 1/500 sec. | |
| Auto slow shutter Off: 1/50 to 1/500 sec. | |
| 25.00P: | |
| Auto slow shutter On: 1/12.5* to 1/500 sec. (*Display is 1/12) | |
| Auto slow shutter Off: 1/25 to 1/500 sec. | |
| Clear Scan | No |
| White Balance | Auto |
| Yes | |
| Preset | Daylight (Approx. 5,600K), Tungsten (Approx. 3,200K) |
| Manual setting | Colour Temperature range: 2,000–15,000K |
| Default value for Set 1 and Set 2: 5,600K | |
| Shooting Modes | |
| Program AE | AUTO Mode |
| Manual Mode: P, Tv, Av, M (manual exposure), SCN (Portrait, Sports, Snow, Beach, Sunset, Night, Low Light, Spotlight, Fireworks) | |
| Infrared shooting mode | Yes (green or white) |
| Built-in IR lamp | Yes, in detachable Handle Unit. |
| Wavelength: 850nm (near-Infrared) | |
| Looks settings | Standard |
| (Adjustment: Sharpness, Contrast, Colour Depth) | |
| Wi-Fi & GPS Specifications | |
| wifi | No |
| GPS Information (Optional Accessory) | Location (Latitude/Longitude/Altitude), Coordinated Universal Time (UTC), Satellite reception. |
| (requires the optional GPS Receiver GP-E2) | |
| Miscellaneous | |
| Tally lamp | Yes, in detachable Handle Unit |
| Colour Bars (PAL) | Yes. SMPTE or EBU, with 1KHz Tone |
| Accessory shoe | Yes (cold shoe) |
| Assignable Buttons | 5 assignable Buttons: Assignable to (AF/MF) / Face Only AF / Magnification / BLC Always On / Powered IS / Auto Acquire WB / WB Priority / IR Light/ Pre REC / Review Recording / PHOTO / Monitor Channels / Menu / Off |
| Custom Dial | Tv / Av / M / AGC Limit / Exposure Compensation / Off |
| Time code | Countup system |
| Regen / Rec Run / Free Run / Preset (Non-Drop Frame) | |
| Time Code out | Via HDMI out. Superimposed on output, Camera Mode only |
| Accessories | |
| Supplied | Lens hood with barrier, Mic holder unit, Handle Unit HDU-1, Battery Pack BP-820, Compact Power Adapter CA-570, AC Cable, Ferrite core, Lens Cap |
| Optional (Includes items not currently on sale) | Canon Battery Pack BP-820/BP-828, Canon Compact Power Adapter CA-570 (included with camera), Canon Battery Charger CG-800E/CG-800, Canon HDMI cable HTC-100/HTC-100S, Canon Tele Converter TL-H58, Canon Wide Attachment WA-H58, Canon Soft Carrying Case SC-1000/SC-2000, Canon Shoulder Strap SS-600/SS-650, Wrist Strap WS-20, Canon PROTECT Filter 58mm, Canon ND4-L Filter 58mm, Canon ND8-L Filter 58mm, Canon GPS Receiver GP-E2, Canon Remote Controller RC-V100, Canon Battery Video Light VL-10Li/VL-10LiII, Canon Battery Pack BP-900 series (for VL-10Li/VL-10LiII), Canon Compact Power Adapter CA-910/920/930 (for charging BP-900 series), Canon Interface Cable IFC-300PCU/S / IFC-400PCU |
| Battery | |
| Battery Pack | Canon Battery Pack BP-820 (supplied), BP-828 (optional) |
| Power Consumption (recording) | UHD/150Mbps: Approx. 4.1W (25.00P) |
| Continuous Recording Time (approx.) | UHD/150Mbps/25.00p: 175 mins (BP-820) / 270 Mins (BP-828) |
| FHD/35Mbps/50.00p: 175 mins (BP-820) / 270 Mins (BP-828) | |
| Size and Weights | |
| Dimensions | Approx. 109 x 84 x 182 mm (main body only) |
| Approx. 131 x 180 x 231 mm | |
| (Including lens hood, BP-820, mic holder unit, and handle unit) | |
| Weight (camera only) | Approx. 730g |
| Weight (fully equipped) | Approx. 1120g |
| Operating Temperature range | -5 to +45ºC, 60% relative humidity |
| 0ºC to +40ºC, 85% relative humidity | |
This product comes with 5 Years Warranty from Canon Australia.
Our products are sourced from authorised Australian suppliers and therefore come with genuine Australian warranty.
Camera Warehouse does not participate in 'Grey Market' or 'Parallel Import' activities.
Canon XA40 Professional UHD 4K Camcorder, Canon CA-570 Compact AC Power Adapter, Canon BP-820 Lithium-Ion Single Battery Pack, Lens Hood with Lens Cover, Handle, Microphone Holder
