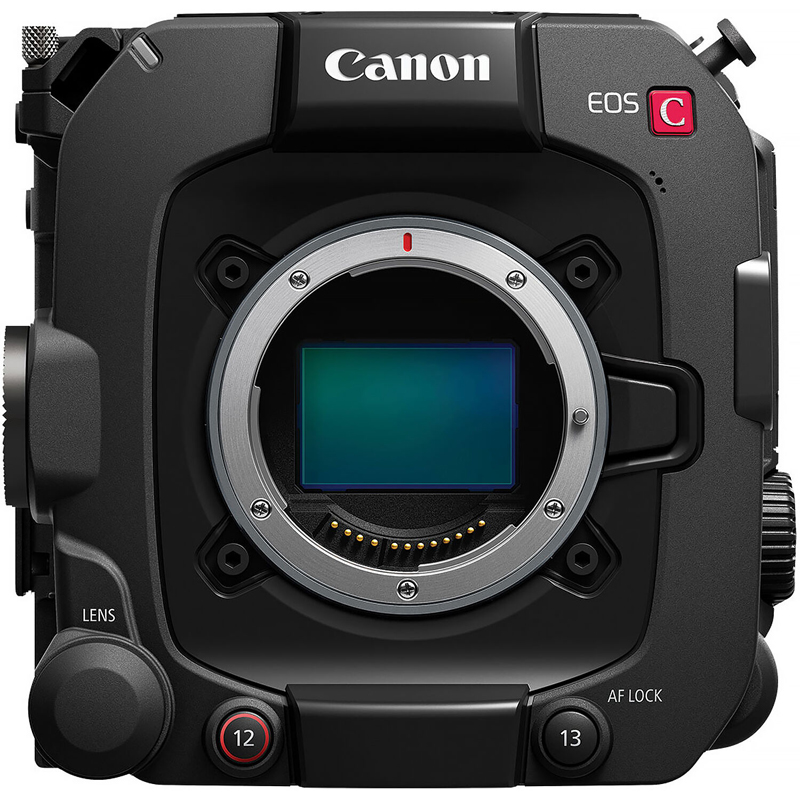

Canon EOS C400 Full Frame RF Cinema Camera

The Canon EOS C400 Full Frame RF Cinema Camera is a high-performance professional camera designed for filmmakers and cinematographers. The camera offers versatility with multiple sensor modes including full-frame, Super35, and Super16, allowing filmmakers to choose the appropriate mode based on their creative vision. It is equipped with a 6K full-frame back-illuminated CMOS sensor, providing high-resolution image capture with enhanced low-light performance.

The camera supports various recording resolutions and frame rates, including 6K resolution at 60fps, DCI 4K/2K, and UHD 4K at up to 120fps for smooth slow-motion footage. It offers three base ISO settings of 800, 3200, and 12,800, providing flexibility in managing exposure and achieving optimal image quality in different lighting conditions. The camera features an updated Dual-Pixel CMOS AF II system, delivering fast and accurate autofocus performance for capturing sharp and in-focus shots. This camera is compatible with PL mount lenses, with an adapter available separately, allowing filmmakers to use a wide range of cinema lenses with the camera.

The camera supports internal recording of Cinema RAW Light, XF-AVC, and XF-HEVC S formats, providing flexibility in choosing the appropriate codec based on workflow requirements. It is equipped with timecode, genlock, and return video ports, enabling seamless integration into multi-camera setups and professional production environments. Despite its advanced features, the camera features a compact and ergonomic design, making it suitable for handheld, rig-mounted, or drone-mounted shooting scenarios. The camera also offers Ethernet and Wi-Fi connectivity for remote control and monitoring, providing convenient access to camera settings and footage playback.

Product Features in Detail

RF LENSES FOR GREATER POSSIBILITIES
RF lenses enable richly expressive, high-quality imaging. The highspeed communication capabilities of the RF mount makes operation intuitive and stress-free. Co-ordinated control of camera and lens IS via RF mount communication achieves powerful image stabilisation.

6K FULL FRAME CMOS SENSOR
The 6K full-frame back-illuminated stacked CMOS sensor and DIGIC DV7 processor deliver breathtakingly beautiful visuals with support for enhanced 4K image quality with 6K oversampling and wide 16 stop tonality. Full-frame readout is supported along with Super 35mm and Super 16mm modes.

VERSATILITY FROM FILMMAKING TO LIVE EVENTS
EOS C400's combination of high image quality, movie performance, compact size and full range of interfaces for greater operability makes it ideal for shooting in a range of environments from filmmaking to live events

DUAL PIXEL CMOS AF II WITH SUBJECT DETECTION
Dual Pixel CMOS AF II offers advanced high-speed, high-precision AF. Algorithms which utilise deep learning enable highperformance subject detection which provides high-speed AF that captures the subject instantly.

LINEUP OF MOUNT ADAPTERS FOR COMPATIBILITY
Users can fully utilise their existing EF lenses by attaching an EFEOS R adapter. PL lenses can also be attached using a new PL-RF mount adapter.

ADJUSTABLE LCD MONITOR
The LCD monitor can be adjusted for shoulder-mounted, handheld and other styles.

DIGIC DV 7 PROCESSOR
Powerful high performance video processing from a dedicated DIGIC DV 7 engine that drives a host of advanced features

COMPACT LIGHTWEIGHT DESIGN
Reduces operator fatigue during long hours of shooting. The EOS C400’s compact shape makes it easy to use with gimbals, drones, and rigs.

4K 120p RECORDING
Supports up to 2K 180P and 4K 120P* recording. This lets users capture scenes with fast movement, such as sports and concerts.

FOUR BASE ISO MODES
Manually choose from three base ISO levels from low to high depending on the scene. The camera also features Auto Selection, which automatically switches from one of the three base ISO levels to another level with a higher S/N ratio while maintaining dynamic range.

CANON LOG 2 & CANON LOG 3
Canon Log 2 & Canon Log 3 are included to ensure a wide dynamic range. Canon Log 2 enables shooting with dynamic range of up to 16 stops

VIRTUAL PRODUCTION SUPPORT
Plug and Play allows data to be synced with a single cable and no prior calibration required. Lens distortion data is delivered along with other lens operations obtain more natural CG composited images that match and coordinate the real camerawork and the virtual space.

SIMULTANEOUS RECORDING
Dual slots for CFexpress and SD cards enable simultaneous recording of XF-AVC, XF-HEVC S, XF-AVC S, and proxy data to an SD card while recording 6K RAW internally to a CFexpress card for faster video editing.**

* When 4K 120P is selected in Super 35mm mode, the angle of view is cropped at approx. 6%.
Daylight Low-light
** During slow motion recording, simultaneous recording may not be possible depending on
the shooting frame rate.
