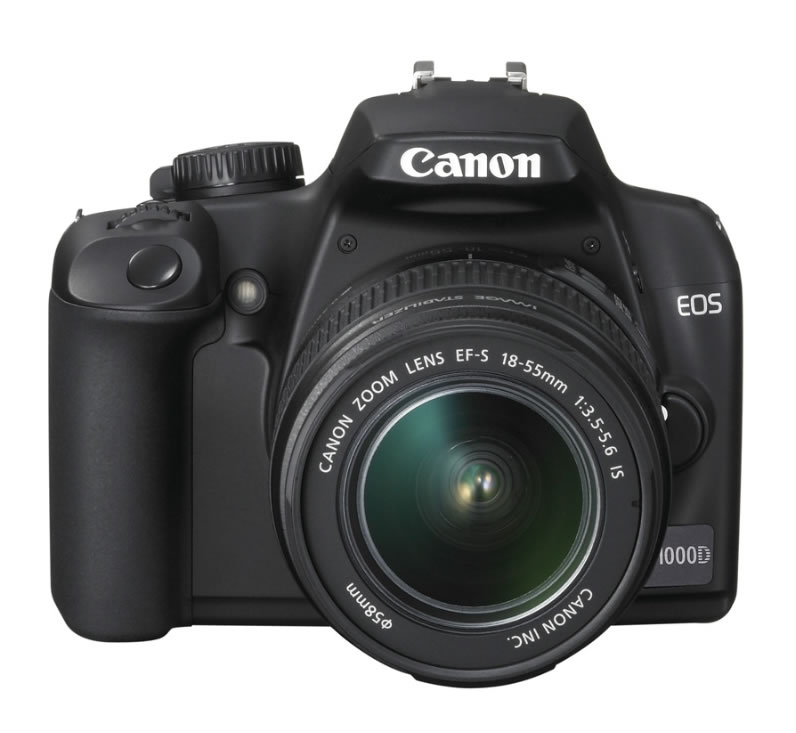

Canon EOS 1000D Digital SLR
- 10.1 Megapixel CMOS sensor
- DIGIC III image processor
- EOS Integrated Cleaning System
- 7-point wide-area AF system
- Up to 3 frames per second
- 2.5” LCD with Live View shooting
- Compatible with SD and SDHC memory cards
- Digital Photo Professional RAW processing software
- Compact and lightweight body
- Fully compatible with all Canon EF and EF-S lenses and EX-series Speedlites
- 2 Years Genuine Warranty from Canon Australia
A 10.1 megapixel Canon developed CMOS sensor and DiG!C III Image Processor combine to deliver the high image quality for first time DSLR users. LiveView offers the familiarity of a compact camera, enabling the photographer to preview images in real time and to compose images in confined spaces or over crowds. The EOS 1000D will take first time DSLR users to the next level of photography.
Product Features in Detail
Designed to deliver more
As with all EOS models, key components for the EOS 1000D are designed and manufactured in-house to work with each other for the ultimate image quality. A 10.1 Megapixel CMOS sensor – with larger pixels for smooth, low-noise images – offers sufficient resolution to produce prints in sizes up to A4, even when cropping your image. To protect images against the effects of sensor dust, the EOS 1000D includes the EOS Integrated Cleaning System, which combats dust in three separate ways: reducing, removing and repelling.
The EOS 1000D also features a DIGIC III image processor, as used in Canon’s professional D-SLR models. This allows continuous shooting until the SD or SDHC memory card is full, at speeds of up to 3fps2 – with the number of shots limited only by the size of the card. DIGIC III also delivers superior image rendering, rapid operation and virtually instant start-up times.
Intelligent focus and flash
For shots where fast focusing is needed, the EOS 1000D features a 7-point wide area Auto Focus system, capable of locking onto a subject in a fraction of a second. A cross-type central focus point continues to operate effectively even when used in lower-light and lower-contrast settings. Also included is E-TTL II, Canon’s distance-linked flash exposure system found in professional EOS models.
Effortless ease
Weighing just 450g, the EOS 1000D is Canon’s lightest D-SLR to date, with a compact, ergonomic body designed for comfortable handling. A bright 2.5” LCD screen lets users instantly review images for composition, sharpness and focus – or, thanks to a wide viewing angle, instantly share shots with friends. The LCD also provides access to a fast, easy-to-read menu system, which uses tabs to avoid unnecessary scrolling. Inherited from the latest EOS models, the menu system includes direct control over external devices such as Speedlite flash units.
Photo quality in every situation is aided by 12 custom functions, including Auto Lighting Optimizer - which corrects brightness and contrast during image processing, while improving skin tones in portraits by ensuring correct exposure for faces. Photographers can also enable additional noise reduction for shots captured at high ISO speeds.
Live View
For shooting situations where using the viewfinder is impractical – or where a tripod is used – users can switch to Live View mode, which displays the scene as a smooth, 30fps video feed on the LCD. An optional grid line and histogram display can be selected to help with shot composition and exposure. Two AF modes are available for use with Live View: Quick AF, which momentarily flips the camera’s mirror to engage the AF sensor, and Live AF, which uses contrast information for compact camera-style focusing.
Software
The EOS 1000D is supplied with a comprehensive software suite that provides all the necessary tools for managing and processing images. This includes Digital Photo Professional (DPP), a powerful RAW converter that provides complete RAW image processing control. DPP also integrates with camera features such as Dust Delete Data and Picture Styles. The supplied Picture Style Editor software can be used to create custom Picture Styles for fine control over colour display. The camera also comes with EOS Utility, Image/Zoom Browser and Photostitch.
EOS Integrated Cleaning System
The EOS Integrated Cleaning System combats sensor dust in three important ways: Reduce, Repel and Remove.
1. Reduce - Internal camera mechanisms are designed to minimise dust generation. The redesigned body cap prevents dust generation through wear on the cap itself.
2. Repel - Anti-static technologies are applied to the low-pass filter covering the front of the sensor so as not to attract dust.
3. Remove - A Self-Cleaning Sensor Unit uses hi-frequency vibrations to shake dust from the infrared filter for a period of approximately one second after each start up. For instant shooting after power up, this feature is disabled immediately the shutter release is depressed.
Canon has also developed an internal Dust Delete Data system, which can map the position of visible dust on the sensor. This can then be deleted automatically after the shoot with the latest Digital Photo Professional software.
Picture Style
Picture Style pre-sets simplify in-camera control over image qualities. Picture Style pre-sets can be likened to different film types – each one offering a different colour response. Within each selectable pre-set, photographers have control over sharpness, contrast, colour tone and saturation. The camera’s factory default configuration is set to deliver immediately-usable JPEG images without need for additional menu settings. Picture Style presets applied to a RAW image can be revised with Canon’s Digital Photo Professional software.
IMAGE SENSOR | Type | 22.2 x 14.8mm CMOS |
Effective Pixels | Approx. 10.1M | |
Total Pixels | Approx. 10.5M | |
Aspect Ratio | 3:02 | |
Low-Pass Filter | Built-in/Fixed with Self Cleaning Sensor Unit | |
Colour Filter Type | Primary Colour | |
IMAGE PROCESSOR | Type | DIGIC III |
LENS | Lens Mount | EF/EF-S |
Focal Length | 1.6x Multiplication with EF lens fitted | |
FOCUSING | Type | TTL-CT-SIR with a CMOS sensor |
AF System/ Points | 7-point AF | |
AF working range | EV -0.5-18 (at 23°C & ISO100) | |
AF Modes | AI Focus | |
One Shot | ||
AI Servo | ||
Live Mode in Live View | ||
Quick Mode in Live View | ||
AF Point Selection | Automatic selection, Manual selection | |
Selected AF point display | Superimposed in viewfinder and indicated on LCD monitor | |
Predictive AF | Yes | |
AF Lock | Locked when shutter button is pressed half way in One Shot AF mode. | |
AF Assist Beam | Intermittent firing of built-in flash | |
Manual Focus | Selected on lens | |
EXPOSURE CONTROL | Metering modes | TTL full aperture metering with 35-zone |
SPC | ||
(1) Evaluative metering (linked to all AF points) | ||
(2) Partial metering at center (approx. 10% of viewfinder) | ||
(3) Center weighted average metering | ||
Metering Range | EV 1-20 (at 23°C with 50mm f/1.4 lens ISO100) | |
AE Lock | Auto: Operates in 1-shot AF mode with evaluative metering when focus is achieved | |
Manual: By AE lock button in creative zone modes. | ||
Exposure Compensation | +/- 2 EV, 1/2 or 1/3-stop increments | |
AEB | +/- 2 EV, 1/2 or 1/3-stop increments | |
ISO Speed Equivalent | AUTO(100-800), 100, 200, 400, 800, 1600 | |
SHUTTER | Type | Electronically-controlled focal-plane shutter |
Speed | 30-1/4000 sec (1/2 or 1/3 stop increments), Bulb (Total shutter speed range. Available range varies by shooting mode) | |
Shutter release | Soft touch electromagnetic release | |
WHITE BALANCE | Type | Auto white balance with the imaging sensor |
Settings | AWB, Daylight, Shade, Cloudy, Tungsten, White Fluorescent light, Flash, Custom. | |
White balance compensation: 1. | ||
Blue/Amber +/-9 | ||
2. Magenta/ Green +/-9. | ||
WB Bracketing | +/-3 levels in single level increments 3 bracketed images per shutter release. | |
Selectable Blue/Amber bias or Magenta/Green bias. | ||
COLOUR MATRIX | Type | Two types of colour space, sRGB and |
Adobe RGB. | ||
VIEWFINDER | Viewfinder | Eye-level SLR (with fixed pentamirror) |
Coverage (Vertical/Horizontal) | Approx. 95% | |
Magnification | Approx. 0.81x (4) | |
Eyepoint | Approx. 21mm (from eyepiece lens center) | |
Dioptre Correction | -3 to +1 m-1 (dioptre) | |
Focusing Screen | Fixed | |
Mirror | Quick-return half mirror (Transmission: reflection ratio of 40:60) | |
Viewfinder nformation | AF information (AF points, focus confirmation light), exposure information (shutter speed, aperture value, ISO speed (always displayed), AE lock, exposure level/compensation, spot metering circle, exposure warning, AEB), flash information (flash ready, high-speed sync, FE lock, flash exposure compensation, red-eye reduction light), white balance correction, SD card information, monochrome shooting, maximum burst | |
Depth of field preview | Yes | |
Eyepiece shutter | On strap | |
LCD MONITOR | Monitor | 2.5" TFT, approx. 230,000 dots Live View Mode with selectable grid display. |
Coverage | Approx. 100% | |
Brightness | Adjustable to one of seven levels | |
FLASH | Modes | Auto, Manual Flash On/Off, Red-Eye |
Reduction | ||
HotShoe/ PC terminal | Yes/ No | |
X-sync | 1/200sec | |
Red-Eye Reduction | Yes | |
Flash Exposure Compensation | +/- 2EV in 1/2 or 1/3 increments | |
Flash Exposure Bracketing | Yes | |
Flash Exposure Lock | Yes | |
Second Curtain Synchronisation | Yes | |
Built-in Flash Range | Coverage upto 17mm focal length (27mm equivalent) | |
Guide Number (ISO 100, meters) | 13 | |
External Flash | E-TTL II with EX series Speedlites, wireless multi-flash support | |
SHOOTING | Modes | Auto, Portrait, Landscape, Close-up, Sports, Night Portrait, No Flash, Program AE , Shutter priority AE, Aperture priority AE, Manual, A-DEP |
Photo Effects | Monochrome (selected from the "Picture Style" menu) with options for Filters and Toning Effects. | |
Drive modes | Single/Continuous | |
Continuous Shooting | Max. JPEG Approx. 3fps. (speed maintained for up to 514 images (JPEG)(1), Max.RAW Approx 1.5fps for 5 images (RAW)) (2) | |
RECORDING PIXELS /COMPRESSION | Image Size | (LF) 3888x2592, (LN) 3888x2592, (MF) |
2816x1880, (MN) 2816x1880, (SF) | ||
1936x1288, (SN) 1936x1288, (RAW) | ||
3888x2592 | ||
Compression | Fine, Normal, RAW (12bit, Canon original RAW 2nd edition) | |
FILE FORMAT | Still Image Format | JPEG (Exif 2.21 [Exif Print] compliant) /Design rule for Camera File system (2.0), Digital Print Order Format [DPOF] Version 1.1 compliant |
RAW+JPEG simultaneous recording | Yes (RAW + Large JPEG only) | |
File Numbering | (1) Consecutive numbering | |
(2) Auto reset | ||
(3) Manual reset | ||
Processing Parameters | 6 Preset 'Picture Styles' with 3 User defined settings | |
DIRECT PRINT | Canon Printers | Canon Selphy Printers, Bubble Jet Printers with the direct print function and PIXMA Printers supporting PictBridge |
PictBridge | Yes | |
OTHER FEATURES | Custom Functions | 12 Custom Functions with 32 settings |
LCD Panel (EL) Illumination | N/A | |
Water/ Dust resistance | No | |
Sound Memo | No | |
Intelligent Orientation Sensor | Yes | |
Histogram | Brightness: Yes | |
RGB: Yes | ||
Playback zoom | 1.5x - 10x | |
Display Formats | (1) Single image with information (2 levels) | |
(2) Single image | ||
(3) 4 image index | ||
(4) 9 image index | ||
(5) Jump Display | ||
Image Erase Protection | Erase protection of one image at a time | |
Image Erase | Single image, All images on card, Checkmarked images, Unprotected images | |
Self Timer | Approx. 2 or 10 sec. | |
Menu Categories | (1) Shooting menu | |
(2) Playback menu | ||
(3) Setup menu | ||
(4) My Menu | ||
Menu Languages | English, German, French, Dutch, Danish, Portuguese, Finnish, Italian, Norwegian, Swedish, Spanish, Greek, Simplified Chinese, Japanese, Traditional Chinese, Korean, Russian, Polish, Hungarian, Czech Firmware Update Update possible by the user. | |
INTERFACE | Computer | USB 2.0 Hi-Speed (Mini-B) |
Other | Video output (PAL/ NTSC) | |
MEMORY CARD | Type | SD card, SDHC card |
SUPPORTED OPERATING SYSTEM | PC & Macintosh | Windows 2000 (SP4) / XP (SP2) / Vista (excl. Starter Edition) |
OS X v10.3-10.5 | ||
SOFTWARE | Browsing & Printing | ZoomBrowser EX / ImageBrowser |
Other | PhotoStitch, EOS Utility (inc. Remote Capture, Original Data Security Tools*), Picture Style Editor | |
* Requires optional accessory | ||
Drivers Image Manipulation | PTP TWAIN Driver (Windows 2000 ) Digital Photo Professional (RAW Image Processing) | |
POWER SOURCE | Batteries | 1 x Rechargeable Li-ion Battery LP-E5 |
Battery life | Approx. 500 (at 23°C, AE 50%, FE 50%) (5) | |
Approx. 400 (at 0°C, AE 50%, FE 50%) | ||
Battery check | Automatic | |
Power saving | Power turns off after 30sec or 1, 2, 4, 8 or 15mins. | |
A/C Power Supply | Optional, AC Adapter Kit ACK-E5 | |
ACCESSORIES | General | Eyecup Ef, Eyepiece Extender EP-EX15II, Angle Finder C, Semi-Hard Case EH19-L |
Lenses | All EF and EF-S lenses | |
Flash | Canon Speedlites (220EX, 380EX, 420EX, 430EX, 550EX, 580EX, 580EX II, MacroRing-Lite MR-14EX, Macro Twin Lite MT-24EX, Speedlite Transmitter ST-E2) | |
Battery Grip | BG-E5 | |
Remote Controller/ Switch | Remote Switch RS-60E3 | |
Power Supply & Battery Chargers | AC Adapter Kit ACK-E5, Battery charger LC-E5E, Car Battery charger CBC-E5, Battery Pack LP-E5 | |
PHYSICAL SPECIFICATIONS | Body Materials | Stainless Steel/Plastic |
Operating Environment | 0 – 40 °C, 85% or less humidity | |
Dimensions (WxHxD) | 126.1 x 97.5 x 61.9 mm | |
Weight (body only) | Approx. 450g |
This product comes with 2 Years Genuine Warranty from Canon Australia.
Our products are sourced from authorised Australian suppliers and therefore come with genuine Australian warranty.
Camera Warehouse does not participate in 'Grey Market' or 'Parallel Import' activities.
Canon EOS 1000D Digital SLR
Front & Rear Lens Caps
LP-E5 Rechargeable Lithium-Ion Battery Pack (7.4V, 1080mAh)
LC-E5 Battery Charger
IFC-200U USB Interface Cable
VC-100 Video Cable
Ef Eyecup
EW-100DBIII Wide Neck Strap
EOS Digital Solution Disk and Instruction Manuals on CD-ROM
2 Years Genuine Warranty from Canon Australia
