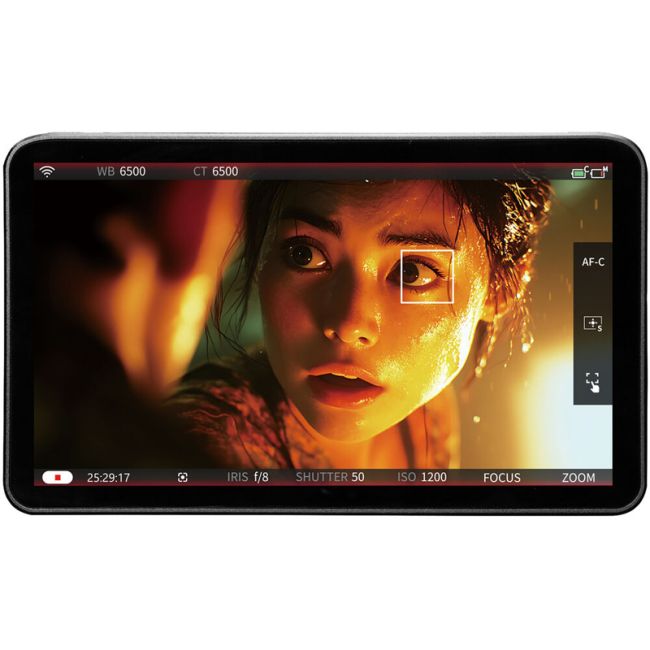

Portkeys LS7P 7" 3G-SDI/4K HDMI High Brightness Monitor with Wireless Camera Control

Empower your production workflow with the Portkeys LS7P, a professional 7-inch field monitor designed for crystal-clear monitoring and intuitive wireless camera control. Featuring a Full HD 1920 x 1080 resolution display with 1000 cd/m² brightness and a 1000:1 contrast ratio, the LS7P delivers vivid, detailed images even under bright outdoor conditions.

Supporting DCI 4K30 input via HDMI and 1080p input via 3G-SDI, the LS7P offers exceptional versatility for both cinema and broadcast setups. It also includes HDMI and SDI loop outputs, allowing you to send signals to additional monitors or recorders with ease.

Enhance your workflow with built-in professional imaging tools—including waveform, vectorscope, focus peaking, and 3D LUT support—for accurate exposure and color monitoring. The LS7P also features wireless camera control for multiple camera systems, giving you convenient on-set control without tethered cables.

Engineered with practicality in mind, it provides top-mounted control buttons, a 160° wide viewing angle, and flexible power options via Sony L-Series battery or DC input. The 1/4"-20 mounting thread and rear flex mount ensure secure and adaptable mounting in any setup.

Product Features in Detail

Rugged & Lightweight Monitor for Camera
The Portkeys LS7P is a lightweight and rugged 7-inch on camera monitor with powerful wireless camera control capabilities. This monitor is made entirely of aluminum and designed to support filmmakers during their creative journeys, even in the most challenging shooting environments.

7″ Full HD Display with 1000nits Brightness
The Portkeys LS7P features a 7-inch touchscreen panel with a resolution of 1920 x 1080. With a maximum brightness of 1,000nits and a contrast ratio of 1000:1, this daylight-viewable monitor is usable in all shooting conditions, whether outdoors under bright sunlight or indoors in a murky studio. Trusting your on-camera monitor’s colors and image is essential for making creative decisions on set, which is why the LS7P features a 10-bit (8+2 FRC) panel, and every monitor is factory color-calibrated.

With a weigh of only 409 grams (14.42 ounces) and measuring 176.2 x 103.8 x 39.3 mm (6.93 x 4.08 x 1.54 inches), this monitor is a compact and comfortable choice for camera operators and focus pullers. With a wide viewing angle of 80° from all sides, the display is easy to see, and it comes with two screen protectors to safeguard the touchscreen from accidental damage.

Professional SDI & HDMI Connectivity
The LS7P features one 4K DCI 30P/1080P60 HDMI input port and one 1080P60 HDMI output port, conveniently located on the bottom left side of the monitor. On the right-hand side of the monitor, you will find 3G-SDI 1080P60 video input and output ports. Additionally, cross-conversion from SDI input to HDMI output is possible, and the monitor supports 3D LUTs HDMI outputs.

Quick Controls & Mounting Options
At the top of the monitor, you will find four user-assignable buttons that allow you to activate or deactivate your favorite monitor tools quickly. Additionally, there is an on/off switch, a touchscreen lock switch, and a 1/4″-20 mounting point with locating pins. The LS7P also includes two more 1/4″-20 mounting points located on the bottom and right sides, providing filmmakers with multiple options for mounting the monitor. For future firmware updates and loading custom LUTs, a USB-A port is located at the bottom, along with a 3.5mm headphone jack.

Quick Controls & Mounting Options
The Portkeys LS7P monitor can be powered using a single Sony NP-F battery. With a low power draw of just 13W, a single Sony NP-F970 battery can power the monitor for up to 3.5 hours. Additionally, the monitor features a DC 7-24V power input with a locking DC 5.5×2.1mm barrel connector. This allows you to extend the monitor’s usage time by powering it via a V-Mount or Gold Mount battery using the included D-TAP to screw-in DC power cable.

Furthermore, the LS7P features a patented design that includes a built-in Sony NP-F power output dummy battery plate. This rotatable battery plate can be adjusted both horizontally and vertically. It also offers power pass-through capabilities (8V/10W), enabling you to connect and power a wireless video receiver directly at the back of the LS7P. This design allows for a sleek and minimalist setup.

Pro Monitoring Tools for Filmmaking
Powered by MOVNORM OS, the Portkeys LS7P includes a full suite of professional monitoring tools which are highly customizable and easy to use, including:

- 3D LUT monitoring with 3D LUT output capabilities. Up to 20 custom LUTs can be loaded via the USB-A port at the bottom of the monitor.
- Anamorphic image de-squeeze with 10 standard image ratios, including the popular 1.33x, 1.5x, 1.8x, and 2.0x, as well as the option to enter a custom aspect ratio from 0.25x to 4.0x.
- Freeze frame functionality, which allows you to capture a frame on a USB stick and compare it with the live image signal. This freeze frame function can be particularly helpful for stop-motion shoots, for example.
- Stretch leg tool: when shooting vertically, you can stretch the bottom part of the image. The stretch leg tool feature can be sent to the HDMI output.
- Focus tools, including peaking, custom peaking frame, and zoom functions, ensure all your shots are as crisp as possible.
- Image analysis and exposure tools, including RGB and Luma Waveform, Vectorscope, Luma Histogram, Zebra, and customizable False Color with 13 different colors, including ARRI False Color.
- Framing tools: crosshair, check field, guides, grids, rectangle crop.
- Audio meters.
- Monitor adjustments: black level, backlight, contrast, color temperature, sharpness, chroma, brightness, tint, HDR/HLG, and image flip (H/V).

Exclusive Log Stops Exposure Tool
Also, the Portkeys LS7P introduces a new exposure tool called Log Stops. Unlike the traditional False Color tool, the Log Stops feature is based on the camera’s actual stop data. This tool is unique to Portkeys monitors and automatically identifies the camera’s LOG signal, regardless of the brand or picture profile in use. The LOG signal is then divided into multiple exposure level zones. Each of these exposure levels can be displayed in a customized mode, either as false color or zebra, and users can turn them on or off as needed. At the time of launch, the LOG signal auto-recognition feature only supports Sony cameras, but support for other brands will be added soon through a free firmware update.

Wireless Camera Control & Autofocus
As the first company to introduce on-camera monitors with camera control capabilities, Portkeys has built years of experience that users worldwide trust. The LS7P features wireless camera control capabilities, which allow you to control a wide range of cameras from brands such as ARRI, RED, Blackmagic Design, Canon, Sony, and Panasonic. It supports popular models, including the Sony FX3, FX30, and FX6, as well as the Canon EOS C80 and C400, among others. You can adjust settings like aperture, shutter speed, ISO, ND filter and white balance directly on the monitor’s screen.

Additionally, the LS7P features Touch Focus capabilities, allowing you to select and move your camera’s focus point directly from the touchscreen.

Even though the Portkeys LS7P is a universal on-camera monitor and can be used with all type of cameras, we pushed the integration with select mirrorless and cinema cameras one step further. The Portkeys LS7P simplifies your workflow and autofocus management. Indeed, with a straightforward tap, users can adjust their focus area easily. This makes the LS7P a powerful and efficient tool on set, eliminating the need to touch the camera’s built-in screen or buttons to change settings, including autofocus parameters.

One-to-Many Multi-Camera Control
The Portkeys LS7P also introduces a unique and versatile feature: the one-to-many control system. This capability enables users to manage and adjust the settings of multiple cameras using just one monitor.

A “master” Portkeys monitor can communicate wirelessly with up to four other compatible Portkeys monitors that have built-in camera control capabilities, all within a range of 50 meters (165 feet). This means you can adjust the settings of all connected cameras, regardless of their brand, from a single location.

In multi-camera shooting environments, this feature enables you to simultaneously adjust settings and focus for multiple cameras without the need for cables. The one-to-many control system is compatible with the Portkeys LS7P, LH7P, LH5PII, BM7IIDS, and BM5IV WR.
