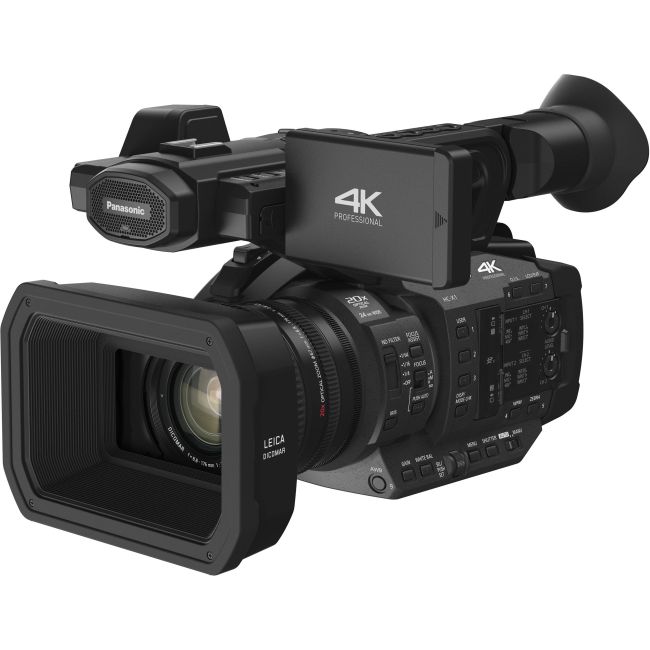

Panasonic HC-X1GC 4K Video Camera
- 1-Inch MOS Sensor
- DCI 4K Video recording at 24 fps
- Full HD Video recording at 120 fps
- Leica Dicomar 24mm f/2.8-4.5 wide-angle lens
- Manual control lens rings
- 20x optical zoom
- Intelligent Autofocus
- OLED Electronic Viewfinder
- Slide out, wide LCD monitor
- 5-Axis Hybrid Image Stabilisation
- 3 Built-in Neutral Density filters
- 2 XLR Inputs for Audio
- Two SD Card slots
With a 1-inch MOS Sensor that is sensitive even during low-light settings, the Panasonic HC-X1GC Video Camera boasts of DCI 4K video recording at 24 fps as well as Full HD slow-motion recording at 120 fps. As scenes are captured through the 24mm Leica Dicomar lens, the manual control lens rings provide precise focusing adjustments. The lens is equipped with 20x optical zoom that can bring the focus closer to the action. Take a look through the OLED Electronic Viewfinder to stay on top of the shots being recorded and see a live preview of the shots via the slide-out, wide LCD monitor. Fast-moving subjects are no match to the camera's Intelligent Autofocus while camera vibrations especially when recording on-the-go are addressed by the 5-Axis Hybrid Image Stabilisation. Use the three built-in Neutral Density filters to balance the amount of light present in every sequence. For amazing audio that complements the high-quality video, attach professional recording microphones to any of the 2 XLR inputs. The Panasonic HC-X1GC also has two SD Card slots to have ample space for all recordings.
Product Features in Detail
4K Video Recording
Though compact in size, the Panasonic HC-X1GC 4K Video Camera can record DCI-standard 4K videos at 24 fps and Ultra HD at up to 60 fps. Stunning slow-motion scenes of 120 fps can also be captured in Full HD 1080p and Standard HD 720p resolutions. Variable Frame Rate recording of 10 steps from 2 to 60 fps is also available for more creative leeway. Videos can be saved in MOV, MP4, or AVHCD formats with bit rates ranging from 5 to 200 Mbps.
Leica Dicomar Lens with 20x Optical Zoom
The 24mm wide-angle nature of this lens is ideal in shooting at tight locations for it helps create sharper videos with minimal distortion. Meanwhile, zoom in to the subject with its 20x optical zoom that provides an impressive 24-480mm focus range. Adjusting the focus to your preference is also possible via the manual control rings.
4-Drive Lens System
To optimize zoom power and image quality by minimizing the drive range, the HC-X1GC has this system that can operate its four lens groups either all-at-once or independently.
1-inch MOS Sensor
The 1-inch MOS Sensor makes it capable of high speed recording which is ideal for capturing moving scenes. It also works well in low light and allows more control on out of focus backgrounds as well as depth of field.
5-Axis Hybrid Optical Image Stabilization
The expanded correction area provides corrections for both low and high angle shots. Meanwhile, the electronic and optical image stabilisation in Full HD are combined to cover camera shakes and vibrations in five axis (horizontal, pan, roll, tilt, and vertical).
Intelligent Auto Focus
This Micro Drive Focus Unit generates quick and precise tracking which is ideal for 4K video. The AF Area, AF Sensitivity, and AF Speed settings can also be adjusted to filming requirements.
16-Axis Colour Correction and 8-Mode Gamma
Fine-tune the Gamma settings to arrive at various gradiations which are often required in professional video production. Meanwhile, the colour correction axis allows the precise adjustment of colours to match that of other cameras in the same lighting conditions.
XLR Audio Inputs
The two inputs have switchable +48V phantom power supply/mic/line and manual volume. Use professional recording microphones and record with the 16-bit linear PCM system (MOV/MP4) or Dolby Digital system (AVCHD) quality.
LCD Screen and Electronic Viewfinder
Access the video camera menu and make settings adjustments via the 8.9 cm touch screen LCD. When not in use, this screen slides back to the body for safe storage. Meanwhile, focusing and exposure selection is made easy by the OLED Electronic Viewfinder which has around 1,769,000 dots to provide bright video previews.
Two SD Card slots
When both slots are used, both SD cards slots can simultaneously record two different file formats on each card. Therefore, you can record at a lower quality or resolution on one card while recording at 4K on the other. Seamless switching from one card to the other especially when one card is full is also allowed.
Built-in ND filters
The built-in Neutral Density filters (1/4, 1/16, 1/64) reduce the amount of light that comes through the lens spilling into the filter. It allows the use of slower shutter speeds to fast-action activities like car racing or sports. Meanwhile, ND filters also provide a wider aperture that let you make your subject stand out in the background. ND filters will also make your colors more saturated, making for a more striking picture. The neutral density also soften the effects of sea waves and blowing grass to provide an ambient and time-lapse effect. They can also emphasize movement in a busy setting.
SENSOR SECTION | Image Sensor | 1-type (inch) MOS Sensor | |
Effective Pixels | UHD/FHD 59.94p/29.97p/23.98p : 8.79 megapixels | ||
Effective Pixels | 4K 24.00p : 9.46 megapixels | ||
LENS SECTION | F Value | F2.8 ― F4.5 | |
Optical Zoom | 20x | ||
Focal Length | 8.8 ― 176 mm | ||
35 mm Film Camera Equivalent (Motion Image/Still Image) | 25.4 ― 508.0 mm [UHD/FHD 59.94p/29.97p/23.98p], 24.0 ― 480.0 mm [4K24.00p] | ||
Filter Diameter | 67 mm | ||
Lens Brand | Leica Dicomar Lens | ||
CAMERA SECTION | Minimum Illumination | 0.2 lx (F2.8, Gain 18dB, Manual Slow Shutter 1/2, [HIGH SENS] Mode) | |
Focus | Auto / Manual | ||
Zoom | Intelligent Zoom OFF | 20x | |
Intelligent Zoom ON | 30x | ||
Digital Zoom | 2x / 5x / 10x | ||
ND Filter | 1/4, 1/16, 1/64, OFF | ||
IR Filter | Incorporates the ON/OFF control function | ||
White Balance | Auto / ATW LOCK / 3200K / 5600K / VAR (2000K—15000K) / Ach Fixed / Bch Fixed | ||
Shutter Speed | 59.94 Hz mode | 60i/60p: 1/60, 1/100, 1/120, 1/180, 1/250, 1/350, 1/500, 1/750, 1/1000, 1/1500, 1/2000, 1/3000, 1/4000, 1/8000 sec | |
59.94 Hz mode | 30p: 1/30, 1/50, 1/60, 1/100, 1/120, 1/180, 1/250, 1/350, 1/500, 1/750, 1/1000, 1/1500, 1/2000, 1/3000, 1/4000, 1/8000 sec | ||
59.94 Hz mode | 24p: 1/24, 1/48, 1/50, 1/60, 1/100, 1/120, 1/180, 1/250, 1/350, 1/500, 1/750, 1/1000, 1/1500, 1/2000, 1/3000, 1/4000, 1/8000 sec | ||
50.00 Hz mode | 50i/50p: 1/50, 1/60, 1/100, 1/125, 1/180, 1/250, 1/350, 1/500, 1/750, 1/1000, 1/1500, 1/2000, 1/3000, 1/4000, 1/8000 sec | ||
50.00 Hz mode | 25p: 1/25, 1/50, 1/60, 1/100, 1/125, 1/180, 1/250, 1/350, 1/500, 1/750, 1/1000, 1/1500, 1/2000, 1/3000, 1/4000, 1/8000 sec | ||
Slow Shutter Speed | 59.94 Hz mode | 60i/60p: 1/2, 1/4, 1/8, 1/15, 1/30 sec | |
59.94 Hz mode | 30p: 1/2, 1/4, 1/8, 1/15 sec | ||
59.94 Hz mode | 24p: 1/2, 1/3, 1/6, 1/12 sec | ||
50.00 Hz mode | 50i/50p: 1/2, 1/3, 1/6, 1/12, 1/25 sec | ||
50.00 Hz mode | 25p: 1/2, 1/3, 1/6, 1/12 sec | ||
Synchro Scan | 59.94 Hz mode | 59.94i/59.94p: 1/60.0 ― 1/249.7 sec | |
59.94 Hz mode | 29.97p: 1/30.0 ― 1/249.7 sec | ||
59.94 Hz mode | 23.98p: 1/24.0 ― 1/249.6 sec | ||
59.94 Hz mode | 24.00p: 1/24.0 ― 1/249.9 sec | ||
50.00 Hz mode | 50i/50p: 1/50.0 ― 1/250.0 sec | ||
50.00 Hz mode | 25p: 1/25.0― 1/250.0 sec | ||
VFR Recording Frame Rate | 59.94 Hz mode | 30p: 2, 15, 26, 28, 30, 32, 34, 45, 60 fps | |
59.94 Hz mode | 24p: 2, 12, 20, 22, 24, 26, 28, 36, 48, 60 fps | ||
50.00 Hz mode | 25p: 2, 12, 21, 23, 25, 27, 30, 37 and 50 fps | ||
Sensitivity | HIGH SENS.mode | F11 (2,000 lx, 3,200 K, 89.9% reflect, 1080/59.94i) / F12 (2,000 lx, 3,200 K, 89.9% reflect, 1080/50i) | |
NORMAL mode | F8 (2,000 lx, 3,200 K, 89.9% reflect, 1080/59.94i) / F9 (2,000 lx, 3,200 K, 89.9% reflect, 1080/50i) | ||
Iris | Auto / Manual | ||
Image Stabilizer | 4K24.00p / UHD: Optical image stabilizer | ||
Image Stabilizer | FHD or lower: 5-Axis Hybrid Image Stabilizer | ||
RECORDING SECTION | Recording Media | SDHC/SDXC Memory Card | |
Recording Format | MOV, MP4, AVCHD | ||
Video Compression Method | MPEG-4 AVC/H.264 High Profile (MOV/MP4/AVCHD) | ||
Audio Compression Method | MOV / MP4: LPCM (2ch) | ||
Audio Compression Method | AVCHD: Dolby Digital (2ch) | ||
System Frequency | 59.94Hz / 50.00Hz | ||
Recording / Playback Mode | MP4/ MOV | 4K 4096x2160 24.00p 100M: Average 100Mbps (VBR) | |
MP4/ MOV | UHD 3840x2160 59.94p/50.00p 150M: Average 150Mbps (VBR) | ||
MP4/ MOV | UHD 3840x2160 29.97p/25.00p/23.98p 100M: Average 100Mbps (VBR) | ||
MP4/ MOV | FHD 1920x1080 59.94p/50.00p/29.97p/25.00p/23.98p 200M (ALL-Intra): Average 200Mbps (VBR) | ||
MP4/ MOV | FHD 1920x1080 59.94p/50.00p 100M: Average 100Mbps (VBR) | ||
MP4/ MOV | FHD 1920x1080 59.94p/50.00p/29.97p/25.00p/23.98p/59.94i/50.00i 50M: Average 50Mbps (VBR) | ||
AVCHD | PS 1920x1080 59.94p/50.00p: Average 25Mbps (VBR) | ||
AVCHD | PH 1920x1080 59.94i/50.00i/23.98p: Average 21Mbps (VBR) | ||
AVCHD | HA 1920x1080 59.94i/50.00i: Average 17Mbps (VBR) | ||
AVCHD | HE 1440x1080 59.94i/50.00i: Average 5Mbps (VBR) | ||
AVCHD | PM 1280x720 59.94p/50.00p: Average 8Mbps (VBR) | ||
AVCHD | SA 720x480/720x576 59.94i/50.00i (SIDE CROP/LETTERBOX/SQUEEZE): Average 9Mbps (VBR) | ||
STILL IMAGE SECTION | Recording Format | JPEG (DCF/Exif2.2) | |
Recording Image Size | [17:9] 8.8megapixels (4096 x 2160) | ||
Recording Image Size | [16:9] 8.3megapixels (3840 x 2160), 2.1 megapixels (1920 x 1080), 0.9 megapixels (1280 x 720) | ||
GENERAL SECTION | Power Supply | 7.28V (Battery) / 12V (AC Adaptor) | |
Power Consumption | 19.7W (LCD Monitor) | ||
Dimensions (W x H x D) | Approx. 173 x 195 x 346 mm (6.81 x 7.68 x 13.6 inch) | ||
Weight (w/o Battery and SD Card) | Approx. 2000g (4.41 lb) | ||
LCD Monitor | 8.89cm Wide LCD monitor (1,152,000 dots) | ||
Viewfinder | 0.99cm OLED (1,769,000 dots) | ||
Manual Ring | Focus / Zoom / Iris | ||
Accessory Shoe | Yes | ||
INTERFACE SECTION | Video | Video Out | Video OUT x 1 |
HDMI | Type A x 1 (Not compatible with VIERA Link) | ||
HDMI | Output format:2160/59.94p/50.00p/29.97p/25.00p/24.00p/23.98p/, 1080/59.94p/50.00p/29.97p/25.00p/24.00p/23.98p/59.94i/50.00i/, 720/59.94p/50.00p, 480/59.94p, 576/50.00p | ||
Audio Input | Built-in Microphone | Stereo microphone | |
XLR Input | XLR (3 pins) x 2 | ||
XLR Input | Input high impedance, LINE/MIC/MIC+48 V (switchable SW) | ||
XLR Input | LINE:+4dBu/0dBu (switchable menu) | ||
XLR Input | MIC: –40dBu/–50dBu/–60dBu (switchable menu) | ||
Audio Output | HDMI | 2 ch (LPCM) | |
Audio OUT | Audio OUT x 2 | ||
Headphone | 3.5 mm diameter stereo mini jack x 1 | ||
Speaker | 20 mm diameter, round x 1 | ||
Other Input/Output | Camera Remote | 2.5mm super mini jack x 1 (ZOOM S/S) | |
Camera Remote | 3.5mm mini jack x 1 (FOCUS/IRIS) | ||
USB 3.0 HOST | Standard-A connector, 9-pin, for External Media Device Connection,* Bus Power Supply | ||
USB 3.0 HOST | *External media device with a capacity of 32 GB or below or a capacity above 2 TB cannot be used | ||
USB 3.0 DEVICE | Micro-B connector, 10-pin, Mass storage function (read only) | ||
DC IN | DC 12V (11.4V ― 12.6V) EIAJ Type4 |
Panasonic HC-X1GC Professional 4K Video Camera
5900 mAh Rechargeable Battery Pack
Battery Charger
AC Adaptor
AC Cable
Microphone Holder
Eye Cup
Lens Hood
12 Months Genuine Warranty from Panasonic Australia
