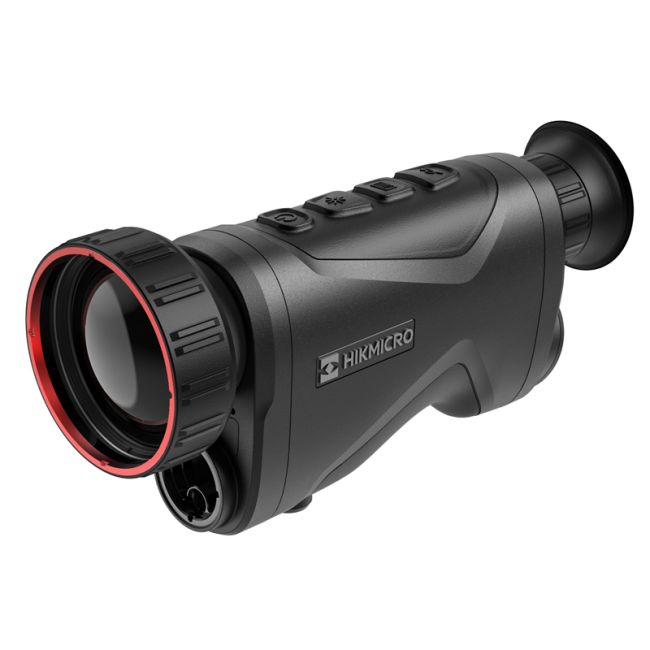

HIKMICRO Condor CQ50L LRF Thermal Monocular

The HIKMICRO Condor CQ50L LRF Thermal Monocular is a high-performance thermal imaging device that offers a resolution of 640x512 pixels with a pixel size of 12μm. The monocular has a detection range of up to 2600 meters, allowing users to detect objects from a significant distance. It provides a field of view of 8.7° x 7.0° at 100 meters, which corresponds to an area of approximately 15.2m x 12.2m. The monocular offers optical magnification ranging from 3.0x to 24.0x, with an 8x digital zoom option available as well.

Users can choose from various color palettes, including Black Hot, White Hot, Red Hot, and Fusion, to enhance their thermal imaging experience. The monocular supports auto, manual, and external correction flat field correction options, which help to improve image quality and accuracy. It features a high-quality OLED display, measuring 0.39 inches and offering a resolution of 1024x768 pixels, ensuring clear and detailed imagery. The monocular is rated as waterproof to IP67 standards, providing protection against water immersion up to one meter for 30 minutes.

It is designed to operate in a wide temperature range, from -30°C to 55°C, making it suitable for various environmental conditions. The monocular comes equipped with a built-in memory module with a capacity of 16 GB, allowing users to store images and videos for later analysis. It is powered by a replaceable and rechargeable Li-ion battery, providing convenient operation and the ability to easily swap out the battery when needed.

The HIKMICRO Condor CQ50L LRF Thermal Monocular offers impressive performance, durability, and versatility for various thermal imaging applications.

Product Features in Detail

CQ50L
With a focal length of 50mm, in conjunction with 12 μm pixel pitch and the large 640 detector, coupled with a thermal sensitivity of less than 20mK, CQ50L with a 1000m LRF ensures hunters in both open field and forest areas marvelous benefits.

Ultra clear image, impressive detail recognition
Powerful high sensitivity (NETD＜20mK) thermal detector of HIKMICRO CONDOR thermal imaging monocular helps small details of objects and backgrounds to be identified easily and clearly in different weather and light conditions.

Purpose-built image algorithm brings stunning image quality
HIKMICRO's self-developed image algorithms give HIKMICRO CONDOR thermal monocular highly optimized images and remarkable details. These algorithms are developed based on extensive analysis of diverse hunting scene images and thermal imaging features.

Accurate Distance Measurement
Distance from the game is essential to ensure a safe shot. The integrated laser rangefinder in HIKMICRO CONDOR thermal monocular allows the user to measure a distance up to 1,000m with an accuracy of ±1 meter in various scenarios, enjoying the most precise measurement of the situation.

Ergonomic grasping shape design for better operation experience
HIKMICRO CONDOR's compact and easy-grasp shape design perfectly fits human hands' purlicue. It adopts soft and skin-friendly material to guarantee better operation for both left- and right- hand users.

Robust magnesium alloy housing design for long-time use
Magnesium alloy design retains HIKMICRO CONDOR thermal monocular a robust structure with light weight and improves stability to meet long-lasting use under any harsh environmental condition.

Magnetic lens cover, easily take and collect
Loss-proof magnetic lens cover realizes easy and silent installation and collection, ensuring better protection of the HIKMICRO CONDOR SDLC lens.

Fast boot on function and replaceable batteries bring more lasting use
Fast boot on within 3s makes HIKMICRO CONDOR always ready for use. HIKMICRO ensures users never have to worry about running out of power. The HIKMICRO CONDOR thermal monocular comes with three replaceable and rechargeable 18,650 batteries, providing an impressive 13.5 hours of continuous operation. With this extended battery life, users can enjoy their never-ending game without any power anxiety, capturing all the exciting moments without interruption.

Auto screen off darkens the screen to save energy and increase battery time
The integrated algorithm automatically detects HIKMICRO CONDOR‘s exact position and activates the auto screen-off function when there is no need to use it. HIKMICRO CONDOR will stand by automatically at a lateral tilt of 75°as well as at a downward or upward tilt of 70°.

Personalized settings available to the suitable visual experience
HIKMICRO CONDOR thermal monocular is characterized by the hierarchical menu, prioritizing frequently used functions according to user habits. Users can customize their visual experience to the highest level of comfort by adjusting settings such as contrast, sharpness, and other personalized options.
