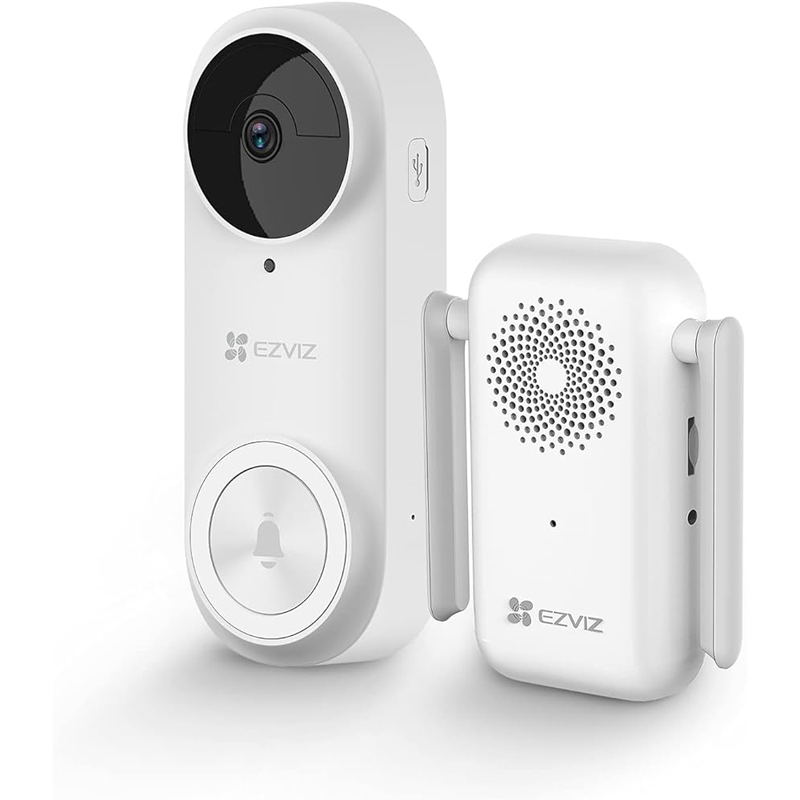

EZVIZ DB2 3MP Wireless Video Doorbell Camera & Chime Kit
- No-Filming Privacy Zones
- Voice Changer For Privacy Protection
- IR Night Vision up to 5m
- 2K+ Resolution
- Smart Human Motion Detection
- 176° Ultra-Wide Field of View
The EZVIZ DB2 3MP Wireless Video Doorbell Camera & Chime Kit allows you to set up specific areas in the camera's field of view where it will not record or film. This feature helps protect your privacy and ensures that sensitive areas are not captured on video. Includes a voice changer feature that allows you to modify your voice during two-way audio conversations. This can help protect your privacy and identity when communicating with visitors.
The camera is equipped with infrared (IR) LEDs, enabling it to capture clear video footage even in low light or complete darkness. The night vision range reaches up to 5 meters, providing visibility during nighttime hours. The doorbell camera captures video in 2K+ resolution, offering a high level of detail and clarity in its footage. This results in sharper images and better video quality compared to traditional 1080p cameras. The camera utilizes advanced algorithms to detect human motion specifically. This helps reduce false motion alerts triggered by animals, vehicles, or other non-human movements. Provides a wide field of view, covering a 176° diagonal angle. This wide viewing angle ensures you have a broader perspective and can see more of the surroundings in front of your door.
The EZVIZ DB2 3MP Wireless Video Doorbell Camera & Chime Kit offers privacy protection features, high-quality video capture, advanced motion detection, and night vision capabilities to enhance your home security and convenience.
Product Features in Detail
EZVIZ DB2 3MP Wireless Video Doorbell Camera & Chime Kit
The EZVIZ DB2 3MP Wireless Video Doorbell Camera & Chime Kit features ultra-sharp 2K+ resolution, wide field-of-view, large battery capacity, and extremely easy installation. Users can enjoy an extra layer of privacy protection using the voice changer feature and set up no-filming privacy zones.
Camera Parameters | |
Image Sensor | 1/2.7" Progressive Scan CMOS (Supports low light sensitivity) |
Lens | 2.0 mm @ F2.0, view angle: 176° (Diagonal) |
Day & Night | IR-cut filter with auto-switching |
Video Parameters | |
Max. Resolution | 2544 × 1888 |
DNR | 2D/3D DNR |
Video Compression | H.265 / H.264 |
Frame Rate | Max: 15fps; Self-Adaptive during network transmission |
General | |
Operating Conditions | -20°C~50°C, Humidity 95% or less (non-condensing) |
Ingress Protection Grade | IP65 |
Weight | 241.35g |
Size | 150 × 58 × 32mm |
Battery Capacity | 5200mAh rechargeable lithium battery |
Power Supply | DC 5V±10% 2A |
Power Consumption | Max. 2W |
Certifications | UL / CE / FCC / REACH / WEEE / RoHS |
WiFi Parameters | |
Wi-Fi Standard | IEEE802.11b, 802.11g, 802.11n |
Frequency Range | 2.4GHz ~ 2.4835GHz |
Channel Bandwidth | Supports 20MHz |
Security | 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK |
Transmission Rate | 11b: 11Mbps, 11g :54Mbps, 11n :150Mbps |
PIR Sensor | |
Sensing Angle | 100° |
Sending Distance | Max. 5m |
Sensitivity | User adjustable (High, Medium and Low Sensitivity) |
Interface | |
Audio Input | Built-in high-sensitivity microphone |
Audio Output | Built-in high-power speaker |
Reset button | Yes |
Network Parameters | |
Intelligent Alarm | PIR + human shape smart motion detection |
Tamper Alarm | Sound and light anti-dismantling alarm (supports sending alerts to the smartphone) |
Video Intercom | Long-distance video two-way talk |
Protocol | EZVIZ Cloud Proprietary Protocol |
Interface Protocol | EZVIZ Cloud Proprietary Protocol |
Chime | |
Size | 100 × 55 × 35mm |
Power Supply | AC 110V ~ 240V |
Wi-Fi Standard | IEEE802.11b, 802.11g, 802.11n |
Audio Output | 72dB within 1m |
Storage | Supports microSD cards up to 256GB |
Weight | 120 g (4.2 oz) |
This product comes with 12 Months Australian Manufacturer Warranty. Our products are sourced from authorised Australian suppliers and therefore come with genuine Australian warranty. Camera Warehouse does not participate in 'Grey Market' or 'Parallel Import' activities.
EZVIZ DB2 3MP Wireless Video Doorbell Camera & Chime Kit
U-shaped Wire and Wire Connectors (3)
Power Cable
Quick Start Guide
Installation Guide
Regulatory Information
DB2 Pro Video Doorbell
Chime
Mounting Plates
Inclined Mounting Plates (2)
Screwdriver and Screw Kits (2)
Foam Sticker
Plate Foam
Drill Template
Pin

SKU: EZVIZ CS-DB2KIT3MP
UPC: 6941545607504
