You are here : Home > DJI Zenmuse Z15 5D Mark III (HD)

McAfee Secure sites help keep you safe from identity theft, credit card fraud, spyware, spam, viruses and online scams

DJI Zenmuse Z15 5D Mark III (HD)Bookmark and Share

MODEL: DJI-ZENMUSE-Z15-5D-MARK-III-HD
Categories: DJI Accessories,

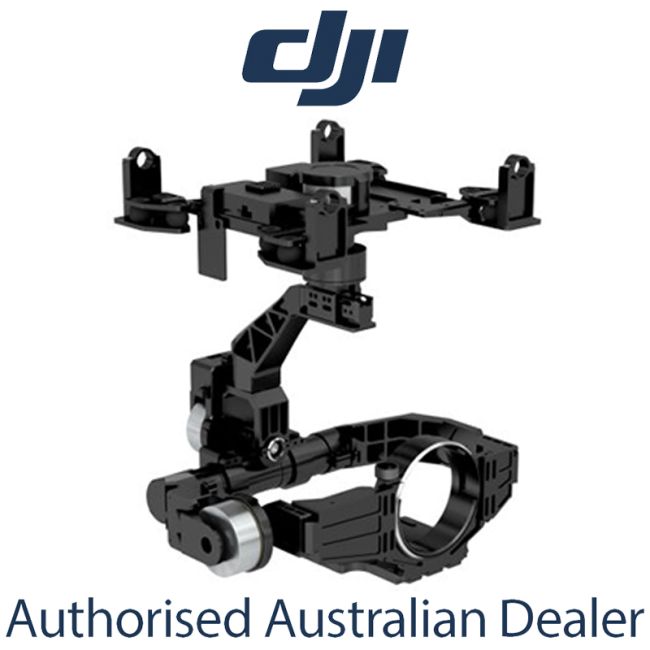

DJI Zenmuse Z15 5D Mark III (HD)
Click for larger view
Click for rear view

Main Product

DJI Zenmuse Z15 5D Mark III (HD) $5,499.00

Total AU$

* All prices include GST
Bookmark and Share

Product Summary

  • Stabilizes Camera that Keeps Levelled Shot
  • Holds Canon 5D Mark III
  • ±0.02° Control Angle Accuracy
  • -120 to +15° Tilt/±25° Roll
  • Variable Speed 360° Panning
  • Remote Shutter Release Operation
  • Integrated IMU and Infrared Modules
  • AV Pass-Through for Video Transmitter
  • Three Selectable Control Modes
  • Compatible with A2 and WooKong-M Flight Controllers
  • Used for Octo-Rotor Like S1000 and S800
  • Genuine 12 Months Australian Warranty

The Zenmuse Z15 is a revolutionary 3-axis gimbal system with 360° continuous rotation. It stabilizes camera that keeps levelled shot and capable of having a wide view thanks to its -120 to +15° tilt/±25° roll and variable speed 360° panning. The gimbal has ±0.02° control angle accuracy with integrated IMU and infrared modules to guarantee an effortless yet precise control. It also features remote shutter release operation wherein the shutter can be controlled remotely via infrared. The AV pass-through for video transmitter works with any 5.8G analog video downlink and the gimbal can be controlled in three selectable control modes. Zenmuse Z15 5D Mark III (HD) is made solely for use with Canon 5D Mark III and compatible with A2 and WooKong-M flight controllers. It is mainly used for octo-rotors like S1000 and S800


Product Features in Detail

HIGH DEFINITION, PERFECT STABILITY
The Z15-5D III (HD) is a sophisticated gimbal designed specifically for aerial creativity. Its HD video output port and lightweight design enable you to capture beautiful, stable shots for all of your high-level projects.

BUILT FOR THE CANON 5D MARK III
The Z15-5D III (HD) gimbal is built specifically to hold the Canon 5D Mark III camera, giving you stable footage and precise control within ±0.02°. When used with a professional DJI flight system, it keeps your Mark III secure, steady and under control in even the most difficult of flight conditions.

NEW HDMI-AV/HD MODULE
Get real-time HD video while controlling the camera with a built-in video output module that is perfectly compatible with the DJI Lightbridge HD digital video downlink. First-person-view flying is available in both HD and AV, and the AV output works with any 5.8G analog video downlink.

3-AXIS ROTATION CONTROL
The 3-axis Zenmuse system’s creative mechanical design makes control both intuitive and easy. A tail potentiometer greatly increases stability and precision, while internal slip rings replace complicated wiring. All power and signal lines have been integrated into gimbal itself, resulting in a completely free control axis that offers a maximum yaw of ±360°, pitch of -120° to +15°, and a roll of ±25°.

A COMPLETE SOLUTION
The Zenmuse Z15-5D III (HD) is ideal for the DJI S1000 flight platform and the A2 or WooKong-M flight controllers. Attach the DJI Lightbridge HD digital video downlink, or an iOSD Mark II and a 5.8G analog video link, for a complete solution to your aerial photography and cinematography needs.

MULTIPLE CONTROL MODES
Three control modes expand your creative boundaries and ensure ease of flight. Orientation-locked, Non Orientation-locked, and Back to Mid-point modes can be switched to on the fly, easily adjusting to the needs of each shoot.

GIMBAL SERVO DRIVE MODULE
Every Zenmuse gimbal gets its precision from DJI’s custom designed Gimbal Servo Drive Module. Each module is tailored to the weight and balance of the specific camera the gimbal has been designed to hold. This significantly improves control and stability while maximizing torque and minimizing vibrations.

BUILT-IN INDEPENDENT IMU MODULE AND INFRARED MODULE
A new stabilizing algorithm has been utilized, which together with the extremely precise machinery gives you effortless control. Because the IMU is built in, your gimbal requires no extra equipment or wiring, reducing weight and allowing you to start shooting faster. The shutter can be controlled remotely by an infrared receiver.


Included in the Box

     DJI Zenmuse Z15 5D Mark III (HD)
     Gimbal Control Unit (GCU)
     Lens Retaining Ring
     4 x Mounting Bracket
     Mounting Board for Receiver
     Cable Clamp
     Camera Mount Screw
     Lens Retaining Screw
     Screw Package
     8-Pin Cable
     Video Signal Cable
     Micro USB Cable
     CAN-Bus Cable
     Spares Pack
     Genuine 12 Months Australian Warranty


Warranty Information

     This DJI Zenmuse Z15 5D Mark III (HD) comes with Genuine 12 Months Australian Warranty.
     Our products are sourced from authorised Australian suppliers and therefore come with genuine Australian warranty.
     Camera Warehouse does not participate in 'Grey Market' or 'Parallel Import' activities.




Tech Specs

General
Built-In Functions
1. Three Working Modes
· Orientation-locked control
· Non orientation-locked control
· FPV mode (Reset)
2. Built-in independent IMU module
3. DJI gimbal special servos drive module
4. HDMI HD/AV module
5. Wireless video transmission supported
6. Camera shutter control supported
7. Wide range voltage input supported
8. S-Bus/PPM Receiver support
9. 360° panoramic photograph function
10. Auto-calibration function
Peripheral
Supported Camera
CANON EOS 5D MARK III
Supported Lens Currently
CANON EF 24mm f/2.8 IS USM
GCU Input Power
4S~12S LiPo (Recommend 6S if with S1000)
Control Requirement
At least four spare receiver channels
Assistant Software System Requirement
Windows XP SP3; Windows 7; Windows 8 (32 or 64 bit)
Mechanical& Electrical Characteristics
Working Current
Static current: 200mA (@25V)
Dynamic current: 400mA (@25V)
Locked-rotor current: 4A (@25V)
Operating Temperature
-10°C ~ 50°C
Weight
1.53Kg
Dimensions
281mmX242mmX222mm
GCU Weight
63g
GCU Dimensions
64.2 mm × 34.1mm × 19.5mm
Working Performance
Load Weight (Reference Value)
2664g(5D MARK III with SD Card & Battery & CANON EF 24mm f/2.8 IS USM Lens)
Controlled Angle Accuracy
±0.02°
Maximum Controlled Rotation Speed
Pan axis: ±90°/s
Tilt axis: ±130°/s
Roll axis: ±30°/s
Rotation
Pan axis control: ±360° continuous rotation
Tilt axis control: +15°/-90°
Roll axis control: ±25°
