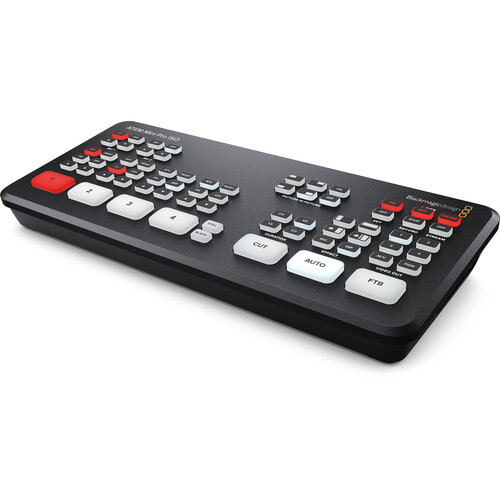

The ATEM Mini Pro ISO from Blackmagic Design has four input for live productions, which works extremely well for setups that involve multiple cameras. The Mini Pro ISO can handle streaming HD video to the internet thanks to its dedicated Ethernet output. Alternatively, you can use its individual HDMI input to record the entire session to an external USB drive too.

Like its predecessors, the ATEM Mini Pro ISO has the same size, button layout, and interface connections as the Mini Pro. However, it has new electronics that allow flawless ISO recording. Owners will still have the previous upstream and downstream keyers, chroma generators, and media player support for fill and key images.

Product Features In Detail

Similar Appearance With Advanced Electronics

The ATEM Mini Pro ISO retains the look, layout, and size of the original ATEM Mini Pro. However, if you're planning to shoot in ISO, you won't have any problems thanks to its advanced electronics and components. A previous ATEM Mini Pro user wouldn't need so much time to adapt to this upgrade.

Can Generate DaVinci Resolve Project Files

DaVinci Resolve project files allow you to record your embedded audio and analog audio inputs, which allows you to use the DaVinci Resolve to adjust and make small fine tuning to your source material for efficient post processing.

Integrates Conveniently With ATEM Software Control Panel

You can control and configure the ATEM Mini Pro ISO with the ATEM Software Control Panel, which allows you to monitor your data rate, audio meters, configuration, and live feed status. This convenient information is crucial for precise live feeds and streams.

Specification

Total Video Inputs	4

Total Outputs	2

Total Aux Outputs	1

Total Audio Inputs	2 x 3.5mm stereo mini jack.

Total Audio Outputs	None, embedded audio only.

Timecode Connection	None

HDMI Video Inputs	4 x HDMI type A, 10-bit HD switchable.
	2 channel embedded audio.

Video Input Re-Sync	On all 4 HDMI inputs.

Frame Rate and Format Converters	On all 4 HDMI inputs.

HDMI Program Outputs	1

Ethernet	Ethernet supports 10/100/1000 BaseT for live streaming, software control, software updates and direct or network panel connection.

Computer Interface	1 x USB Type-C 3.1 Gen 1 for external drive recording, webcam out, software control, software updates and panel connection.

Standards
HD Video Input Standards	720p50, 720p59.94, 720p60
	1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
	1080i50, 1080i59.94, 1080i60

HD Video Output Standards	1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60

Video Streaming Standards	1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60

Ultra HD Video Standards	None

Video Sampling	4:2:2 YUV

Color Precision	10-bit

Color Space	Rec 709

HDMI Input Resolutions from Computers	1280 x 720p 50Hz, 59.94Hz and 60Hz
	1920 x 1080p 23.98, 24, 25, 29.97,30, 50, 59.94 and 60Hz
	1920 x1080i 50 and 59.94Hz 60Hz

Colorspace Conversion	Hardware based real time.

Warranty

This product comes with 12 Months Australian Manufacturer Warranty with Blackmagic Design. Our products are sourced from authorised Australian suppliers and therefore come with genuine Australian warranty. Camera Warehouse does not participate in 'Grey Market' or 'Parallel Import' activities.

In The Box

Blackmagic ATEM Mini Pro ISO, Software SD Card
