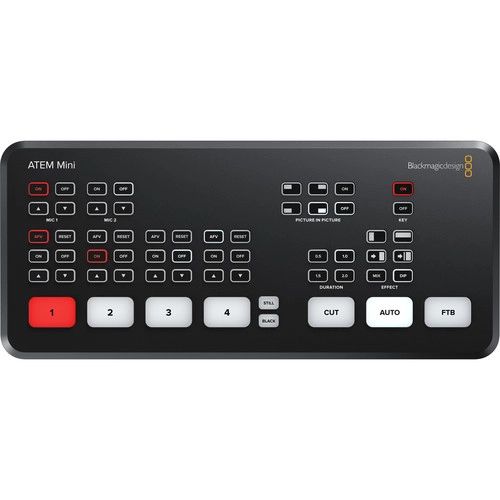

Blackmagic ATEM Mini
- 4-Channel Live Stream HDMI Switcher
- 2-Channel Digital Audio Mixer
- HDMI Output: Ethernet Atem Control
- I/O Reaching 1080p 60FPS with 10-Bitrate Streaming
- USB Type-C Streaming Webcam Output
Multi-camera live streaming is convenient if you want a unique and immersive internet stream. If you're planning to start a gaming channel with multiple HDMI outputs, Blackmagic's ATEM mini is your best choice. Capable of handling four HDMI inputs and providing output to multiple monitors, you have full capability to deliver an excellent stream to your audiences.
Blackmagic's ATEM mini has a USB Type-C output that enables 1080p 60fps streaming to a computer. Furthermore, you can do plenty of system management, remote control, and upgrades using an RJ45 10/100 Ethernet port too. Additionally, you have built-in transition options, such as Cut, Mix, Dip, Wipe, and DVE.
Product Features in Detail
4-Channel Live Stream HDMI Switcher
You won't have any worries if you've got a maximum of four channels streaming simultaneously during your broadcast. Blackmagic's ATEM Mini provides you with four inputs that allow you to switch your stream images or create overlays.
Built-In Transitions and Layering Controls
Transitions, upstreams, and downstream keyers make it easy to create a dynamic and entertaining stream for your audiences. Transitions include cut, mix, and dip scene-by-scene transitions. Upstream and downstream keyers make it easy to remove backgrounds and fill them with graphics or your gameplay stream.
Excellent 2-Channel Audio Mixer for Precision Adjustments
No need to break out your digital audio workstation to mix your audio. With Blackmagic ATEM Minis' built-in audio mixer, you can control your camera and external audio with full precision. You can adjust settings on six audio inputs and two channels, which have separate gain control, level, peak, metering, and Fairlight Audio features for audio compression, gating, and limiting.
Total Video Inputs | 4 |
Total Outputs | 2 |
Total Aux Outputs | 1 |
Total Audio Inputs | 2x3.5mm Stereo Mini Jack |
Total Audio Outputs | None, embedded audio quality only |
HDMI Video Inputs | 4x HDMI type A, 10-bit HD switchable, 2 Channel Embedded Audio |
Computer Interface | 1 x USB Type-C 3.1 Gen 1 for external drive recording, webcam out, software control, software updates and panel connection. |
Ethernet | Ethernet supports 10/100/1000 BaseT for live streaming, software control, software updates and direct or network panel connection. |
HD Video Input Standards | 720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080i50, 1080i59.94, 1080i60 |
HD Video Output Standards | 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 |
12V Power Supply with International Adapters, Blackmagic Design ATEM Mini HDMI Live Stream Switcher, Control Panel Software

SKU: Blackmagic SWATEMMINI
UPC: 9338716006445
