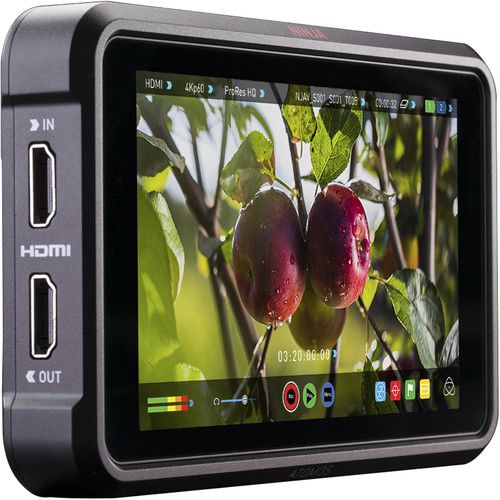

Atomos Ninja V 5" Camera Monitor & Recorder
Regular Price
A$849.00
Special Price
A$806.55
save: A$42.45
Out of stock
Free Shipping for Orders over $299* (*excludes bulky items)
No SURCHARGE FOR CREDIT CARDS
- Small and stealthy
- Record and Playback in DCI 4K, UHD 4K, and HD
- Features the Atom HDR display technology
- 12 audio channels digital 24-bit 96KHz
- 5" touch screen
Atomos calls it the Ninja V 5" HDMI Recording Monitor because it's a small, stealthy device packing so many groundbreaking features you won't believe exists with recording monitors. It is capable of recording and playing back DCI 4K, UHD 4K, and HD Video from its mini-SSDs. Furthermore, it features the Atom HDR display technology, which allows you to monitor true color and gamma images without the need to compress the entire image. It has a different but useful interface than Atomos' previous HDMI recording monitors too.
| Weight | |
| Without batteries & media | 360g / 12.7oz |
| With batteries & media | - |
| Dimensions (W x H x D mm) | 151 x 91.5 x 31mm |
| Construction | Aluminium alloy chassis with ABS polycarbonate back plate |
| Mounting points | 1/4-20 UNCscrew mount; 1x top, 1x bottom |
| Power | |
| Operating power | 10 - 19W |
| Compatible batteries | NP-F series and supporting accessories |
| Input voltage (battery) | 6.2V to 16.8V |
| Battery time (based on 2 x 7.4V) | 5200mAh - up to 2hrs (monitor & record 4K +60p) |
| 7800mAh - up to 3hrs (monitor & record 4K 60p) | |
| DC In | |
| Continuous power * Patent pending |
Continuous power with external adaptor* |
| Touchscreen | |
| Size | 5” |
| Resolution | 1920 x 1080 |
| PPI | 427 |
| Aspect ratio | 16:9 native |
| Color Gamut | REC709 HDTV |
| Look up table (LUT) support | 3D LUT (.cube format) |
| Anamorphic de-squeeze | 2x, 1.5x, 1.33x, Panasonic 8:3 |
| Technology | SuperAtom IPS panel (capacitive touch), calibration to Rec.709 with optional calibration unit |
| HDR | |
| AtomHDR | Yes |
| Supported Log formats | Sony SLog2 / SLog3, Canon CLog / CLog 2, Arri Log C, Panasonic Vlog, JVC JLog, Red LogFilm, FujiFilm Flog, Nikon N-Log |
| HDR Recording (Gamut) | Sony SLog / SLog2 / SLog3, Canon CLog / CLog2 / Clog3, Arri Log CEI160 / LogCEI200 / LogCEI250 / LogCEI320 / LogCEI400 / LogCEI500 / LogCEI640 / LogCEI800 / LogCEI1000 / LogCEI1280 / LogCEI1600, Panasonic Vlog, JVC JLog1, Red LogFilm / Log3G10 / Log3G12, FujiFilm Flog, PQ10k, HLG, Nikon N-Log |
| HDR Monitoring (Gamma) | Sony SGamut / SGamut3 / SGamut3.cine / BT2020 Canon Cinema / DCI P3 / DCI P3+ / BT2020 Panasonic V Gamut Arri Alexa Wide Gamut Rec709 JVC LS300 Red DragonColor / DragonColor2 / RedColor2 / RedColor3 / RedColor4 / RedWideGamut |
| HDR Monitoring (Gamut) | Wide Color Gamut (SGamut / SGamut3 / SGamut3.cine / Canon Cinema / BT2020 / DCI P3 / DCI P3+ / Panasonic V Gamut / Arri Alexa Wide Gamut) mapping to Rec709 on screen Wide Color Gamut (SGamut / SGamut3 / SGamut3.cine / Canon Cinema / BT2020 / DCI P3 / DCI P3+ / Panasonic V Gamut / Arri Alexa Wide Gamut) mapping to Rec709 / BT2020 / DCI P3 on loop out |
| Bit depth | 10-bit (8+2 FRC) |
| Brightness | 1000nit (+/- 10% @ center) |
| HDR input (PQ/HLG) HDR output (PQ/HLG) |
Yes / Yes Yes / Yes |
| Video Input/Loop Out | |
| HDMI | 1 x HDMI (2.0) |
| SDI | - |
| Signal | Uncompressed true 10-bit or 8-bit 422 (camera dependent) |
| Video Output (Play Out) | |
| HDMI | 1 x HDMI (2.0) |
| SDI | - |
| Signal | Uncompressed true 10-bit or 8-bit 422 (playback file dependent) |
| Supported Loop Out Formats | |
| HDMI to HDMI | 720p 50/60, 1080i 50/60, 1080p 24/25/30/50/60/100/120 2160p 24/25/30/50/60 |
| SDI to SDI | - |
| Video Signal Conversion | |
| HDMI to SDI | - |
| SDI to HDMI | - |
| AtomX Expansion Port - Video, Audio & Power In/Out | |
| Video | Up to 4Kp60 |
| Audio | 12 channels digital 24-bit 96KHz |
| Power | 5V-16.6V |
| Supported Codecs & Frame Rates (Record & Playback) | |
| Video to ProRes / DNxHR (DNx utilizes a .MOV wrapper) |
Apple ProRes HQ, 422, LT AVID DNxHR HQX. HQ, SQ, LB
4K DCI; 24/25/30/50/60p 4K UHD; 24/25/30/50/60p 2K 1080p; 24/25/30/50/60/100^/120^ 1080i; 50/60i, 720p; 50/60p |
| Onboard Processing | |
| Pulldown removal | 24/25/30pSF > 24/25/30p (2:2 pulldown) 60i > 24p (3:2 pulldown) |
| 4K UHD downscale for HD monitoring | Yes - Loop-out and playback |
| Audio In/Out (48kHz PCM Audio) | |
| HDMI | 2 or 8ch 24-bit, camera dependent |
| SDI | - |
| Audio |
Line in / Mic in / Headphone out 2ch 48kHz 24-bit
|
| Headphone out | 3.5mm |
| Remote Start/Stop | |
| HDMI |
Auto HDMI Trigger
Supported Protocols - Canon, Sony, Atomos Open Standard |
| SDI | - |
| Other | LANC control - Slave |
| Playback | |
| Playlist / Genlock / LTC | Yes / - / - |
| CDNG (Recorded content) | N/A |
| ProRes (Recorded content) |
All recorded files can playback. Playback in slow motion.
|
| DNxHR / DNxHD (recorded content) |
All recorded files can playback. Playback in slow motion.
|
| Recording | |
| Pre-roll record | Yes (HD 8s, 4K 2s) |
| Custom timelapse | Yes* |
| Meta data tagging | Yes (10 tags available) |
| Supported media |
2.5” SSD/HDD compatibility depends on recording format, resolution and frame rate. Visit atomos.com/drives for list of tested and approved drives
|
| Master caddy case | Master Caddy II (included) 75mm x 105mm x 12mm |
| Master caddy dock | 2.5” SATA to USB 2.0/3.0 |
| Supported applications |
Supported Applications FCPX/FCP7+ / Media Composer
5.0+ / Premiere 5.5+ EDIUS 6.0+ / Vegas Pro 10+ / Lightworks / Autodesk Smoke 2015 |
| XML support |
FCPX XML native, FCPX/Adobe limited supported with 3rd party conversion tools
|
| * Timelapse feature will be added to next firmware upgrade | |
This product comes with 1 year Genuine Warranty with Atomos Australia.
Our products are sourced from authorised Australian suppliers and therefore come with genuine Australian warranty.
Camera Warehouse does not participate in 'Grey Market' or 'Parallel Import' activities.
Ninja V unit, Master Caddy II x 1, 12V-3A AC power supply, Battery Eliminator, Quick Start guide
